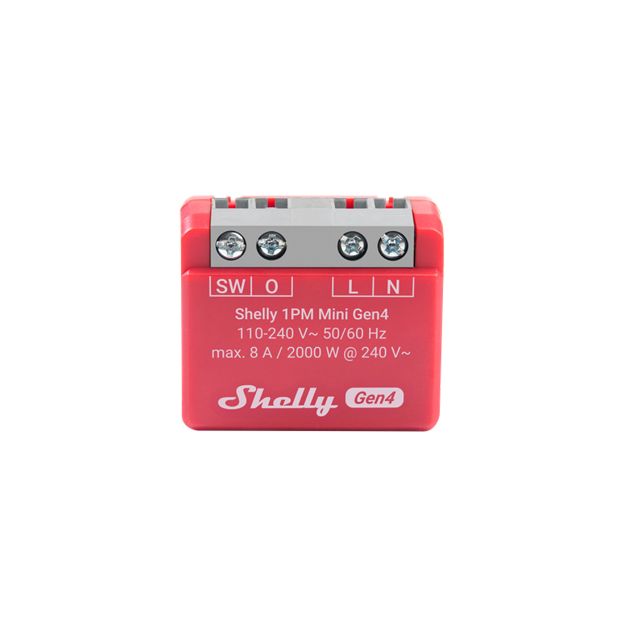

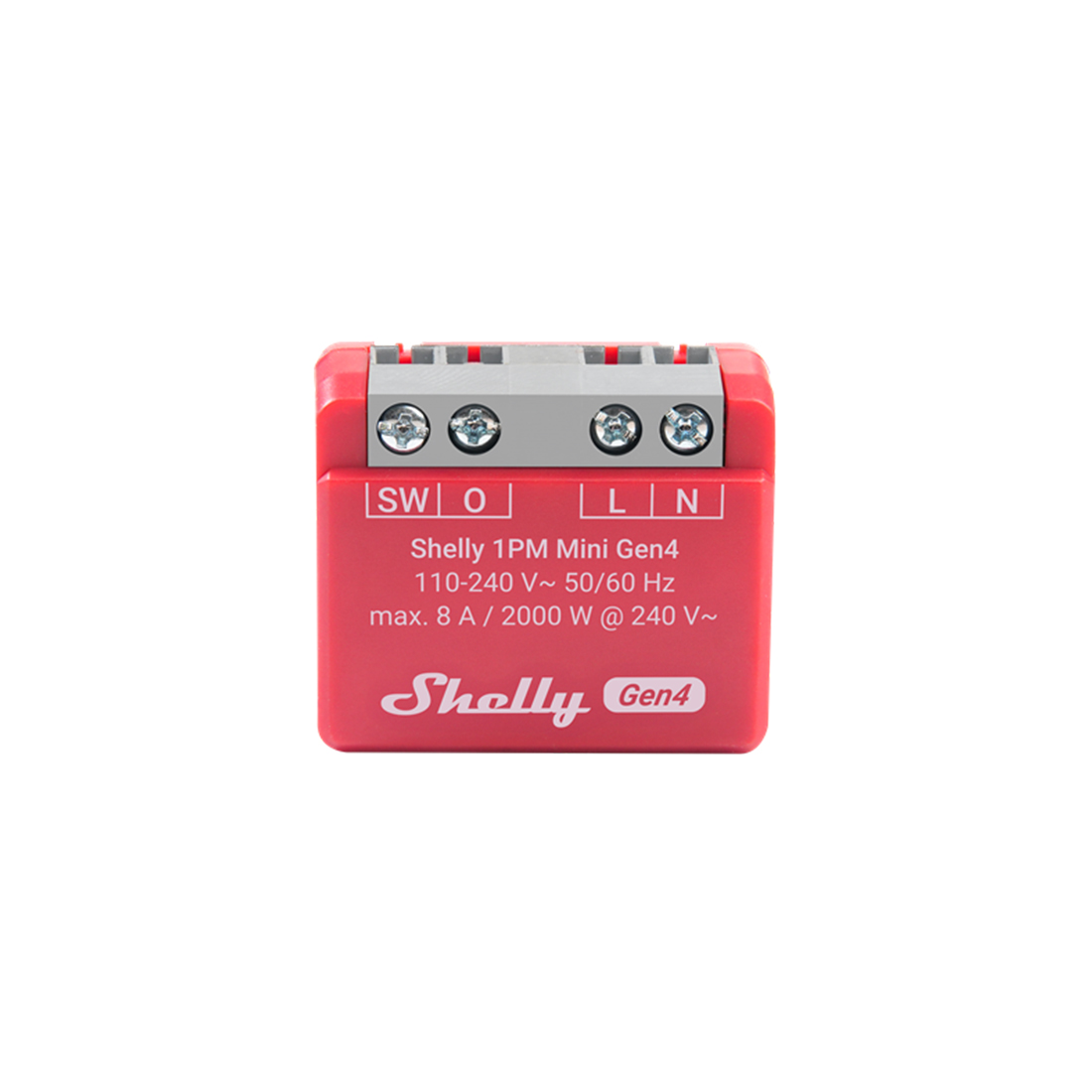

Shelly 1PM Mini Gen4

A compact smart switch with power metering for controlling lights and small appliances up to 8 A. Equipped with Shelly chip and multiprotocol connectivity support
MSRP: $19.49
Manufacturer: Shelly Products
SKU: 3800238070809

Features

  • Multiprotocol connectivity: Highly Compatible! Choose the best protocol for your smart home: Zigbee, WiFi, or Bluetooth
  • Power monitoring: Provides precise monitoring of power consumption
  • Smart scenes: Set custom scenes by combining Shelly 1PM Mini Gen4 with your other devices
  • Matter certified: Integrates into any Matter ecosystem
  • Smart schedules: Set custom schedules based on your daily adgenda and lifestyle
  • Scripting: Shelly 1PM Mini Gen4 fully supports mjS scripting, allowing you to create custom features and functionalities

Specs

Memory 8 MB
CPU ESP-Shelly-C68F
MQTT Da
HTTP/HTTPS webhooks 20 with 5 URLs per hook
Scripting Yes
Custom scripts(mJs) Yes
Sunrise/Sunset Yes
Power Measurement Yes
Weekly Schedule Yes
Power supply AC 110-240V ±10%, 50/60Hz
Maximum load 16A
Altitude Up to 2000 m
Operational temperature -20ºC to +40ºC
Humidity 30 % to 70 % RH
Bluetooth 5.0
Bluetooth range Up to 10 m indoors and 30 m outdoors
Bluetooth RF band 2402 - 2480 MHz
Bluetooth Max RF Power < 4 dBm
Wireless/WiFi Protocol 802.11 b/g/n/ax
Wireless/WiFi Range Up to 30 m indoors and 50 m outdoors
WiFi RF band 2401 - 2495 МHz
WiFi Max. RF power < 20 dBm
Zigbee protocol 802.15.4
Zigbee range Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
Zigbee RF bands 2400 do 2483.5 Mhz
Zigbee Max. RF power < 20 dBm
Mounting Wall box
Shell material Plastic
Screw terminals max torque 0.4 Nm
Max switching voltage 240 VAC
Max switching current 8A/240 VAC



Dimensions

Size 29x34x16 ±0.5 mm
Weight 18 g
Conductor cross section 0.2 to 2.5 mm²
Conductor stripped length 6 to 7 mm
