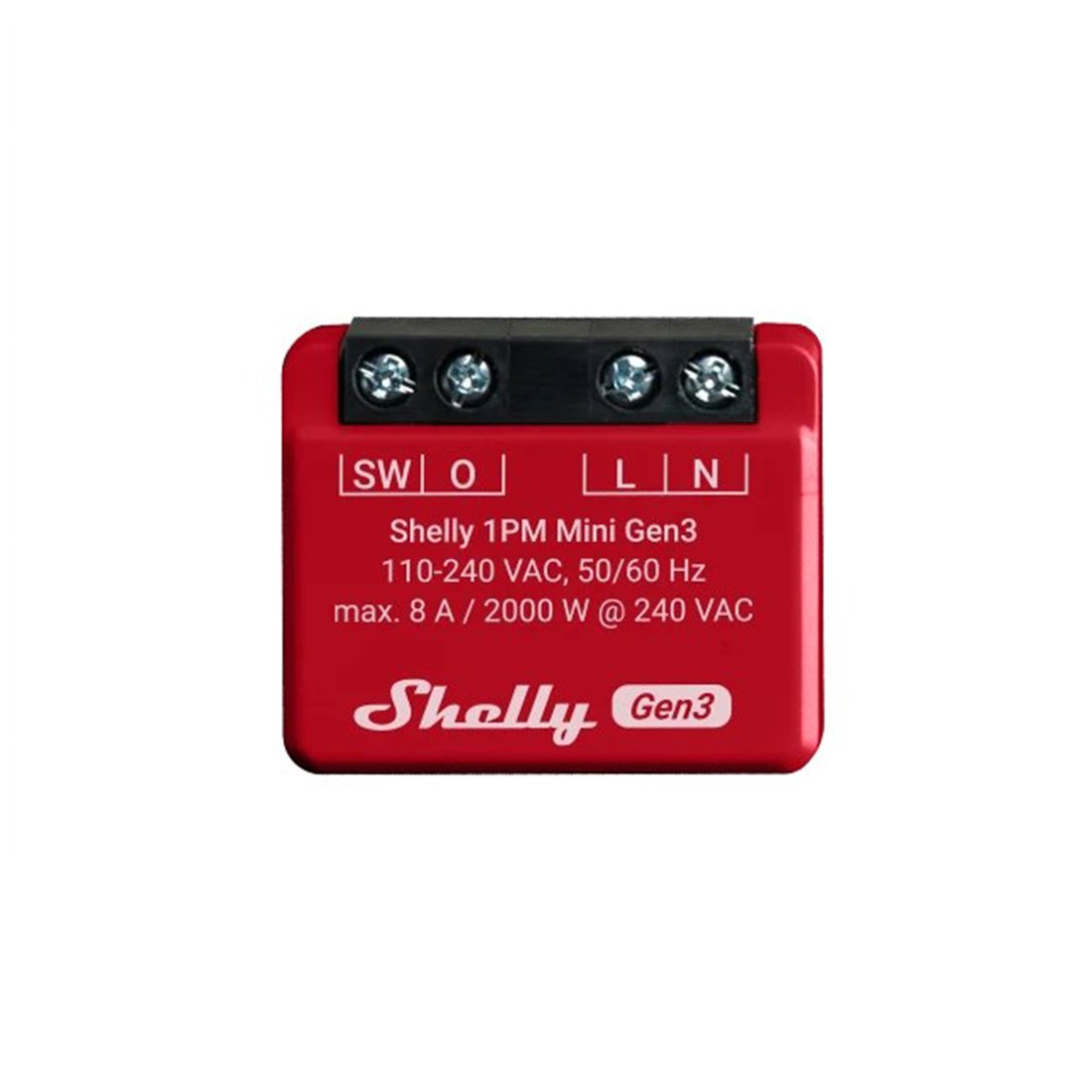

Shelly 1PM Mini GEN3

This compact device is designed to make your life easier and more convenient. With its easy installation process, you can effortlessly control your lights, appliances, and more from anywhere using your smartphone.
MSRP: $17.99
Manufacturer: Shelly Products
SKU: 3800235261590

Features

  • Control your devices from anywhere: With the Shelly 1PM Mini Gen3, you can instantly control your lights, appliances, and more from the palm of your hand. Whether you're at home, at work, or on vacation, you have complete control over your home's devices through the user-friendly Shelly app.
  • Save energy and money: Say goodbye to wasted energy and skyrocketing utility bills. The Shelly 1PM Mini Gen3 allows you to schedule your devices to turn on and off automatically, ensuring that they are only in use when needed. This not only reduces your carbon footprint but also saves you money in the long run.
  • Compatible with voice assistants: Experience the convenience of hands-free control with the Shelly 1PM Mini Gen3. Connect it to your favorite voice assistant, such as Amazon Alexa or Google Assistant, and effortlessly control your devices with simple voice commands. Just imagine saying, "Alexa, turn off the lights," and watching as your home responds instantly.
  • Easy installation: Don't worry if you're not a tech expert – the Shelly 1PM Mini Gen3 is designed with simplicity in mind. With its compact size and straightforward installation process, you can easily replace your existing switch with this smart switch in no time. No need to hire a professional or deal with complicated wiring diagrams.

Specs

Memory 8 MB
CPU ESP-Shelly-C38F
MQTT Da
HTTP/HTTPS webhooks 20 with 5 URLs per hook
Custom scripts(mJs) Yes
Scripting Yes
Power measurement Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
Power supply AC 110-240V ±10%, 50/60Hz
Operational temperature -20ºC to +40ºC
Humidity 30 % to 70 % RH
Altitude Up to 2000 m
Range Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
Bluetooth 4.2
Bluetooth RF band 2400 - 2483.5 MHz
Bluetooth Max. RF Power < 4 dBm
Bluetooth range Up to 10 m indoors and 30 m outdoors
Wireless/WiFi Protocol 802.11 b/g/n
Wireless/WiFi Range Up to 30 m indoors and 50 m outdoors
WiFi Max. RF power < 20 dBm
WiFi RF band 2401 - 2495 МHz
Mounting Wall box
Screw terminals max torque 0.4 Nm



Dimensions

Size 29x34x16 ±0.5 mm
Weight 18 g
Conductor stripped length 5 to 6 mm
Conductor cross section 0.2 to 2.5 mm²
