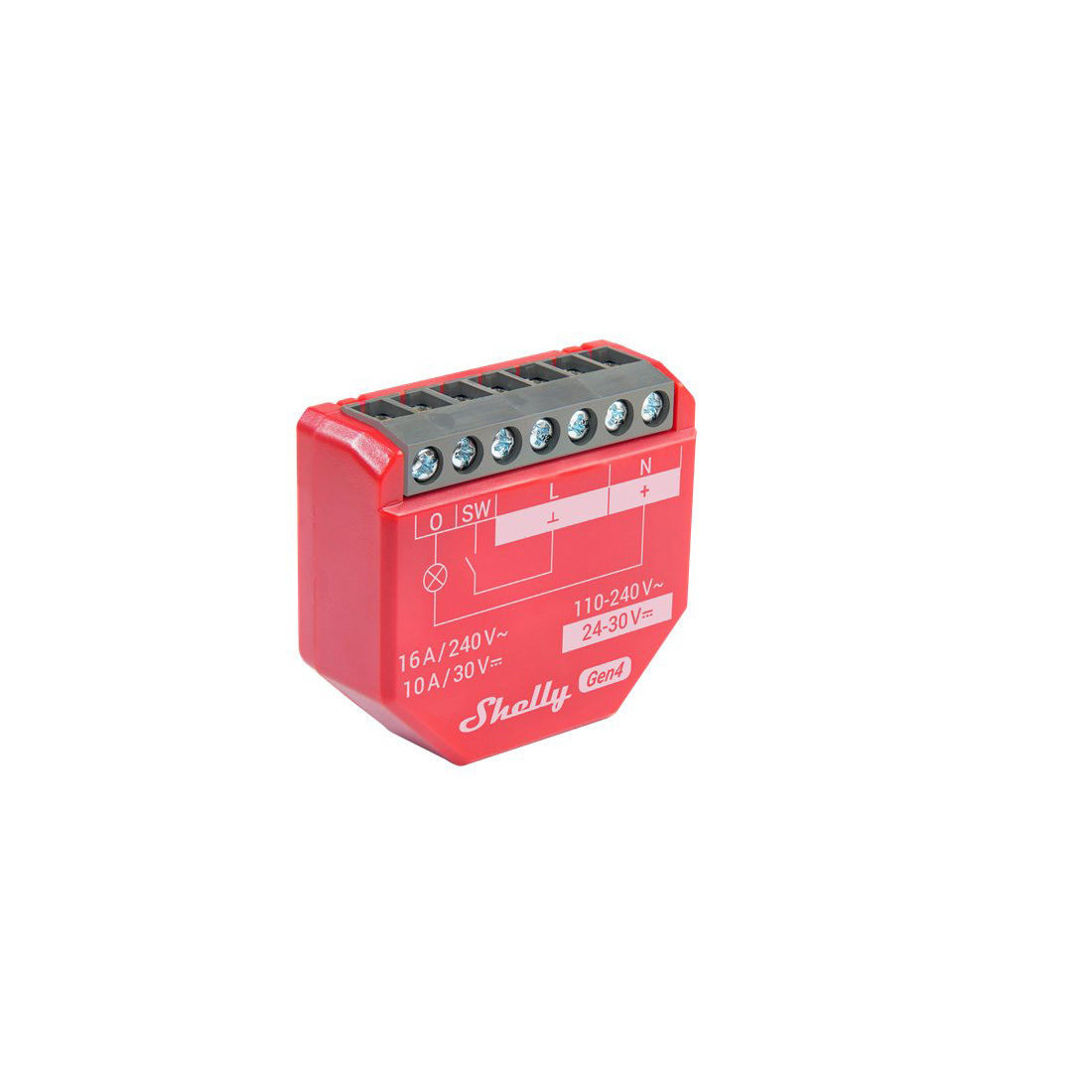

Shelly 1PM Gen4

MSRP: $27.99
Manufacturer: Shelly Products
SKU: 3800238070717

Specs

  • Bluetooth 5.0
  • HTTP/HTTPS webhooks: 20 with 5 URLs per hook
  • Intelligent On/Off
  • Conductor stripped length: 6 to 7 mm
  • Conductor cross section: 0.2 to 2.5 mm²
  • Screw terminals max torque: 0.4 Nm
  • CPU: ESP-Shelly-C68F
  • Memory: 8 MB
  • Max switching voltage:
    • 30 V
    • 240 VAC
  • MQTT: Da
  • Power supply AC: 110-230V ±10%, 50/60Hz
  • Power supply DC: 24-30 V
  • Device temperature protection
  • Power measurement
  • Maximum load: 16A
  • Operational temperature: -20ºC to +40ºC
  • Device power consumption: < 1.2 W
  • Wireless/WiFi Protocol: 802.11 b/g/n
  • AES encryption (CCM mode)
  • Bluetooth RF band: 2402 - 2480 MHz
  • Bluetooth max. RF power: < 4 dBm
  • Bluetooth range: Up to 10 m indoors and 30 m outdoors
  • WiFi protocol: Up to 30 m indoors and 50 m outdoors
  • WiFi Max. RF power: < 20 dBm
  • WiFi RF band: 2412 - 2472 ?Hz
  • Zigbee protocol: 802.15.4
  • Zigbee RF bands: 2400 do 2483.5 Mhz
  • Zigbee Max. RF power: < 20 dBm
  • Zigbee range: Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
  • Humidity: 30 % to 70 % RH
  • Altitude: Up to 2000 m
  • Warranty: 36 months

Dimensions

  • 1.46" x 1.65" x 0.63"
  • 0.95 oz
