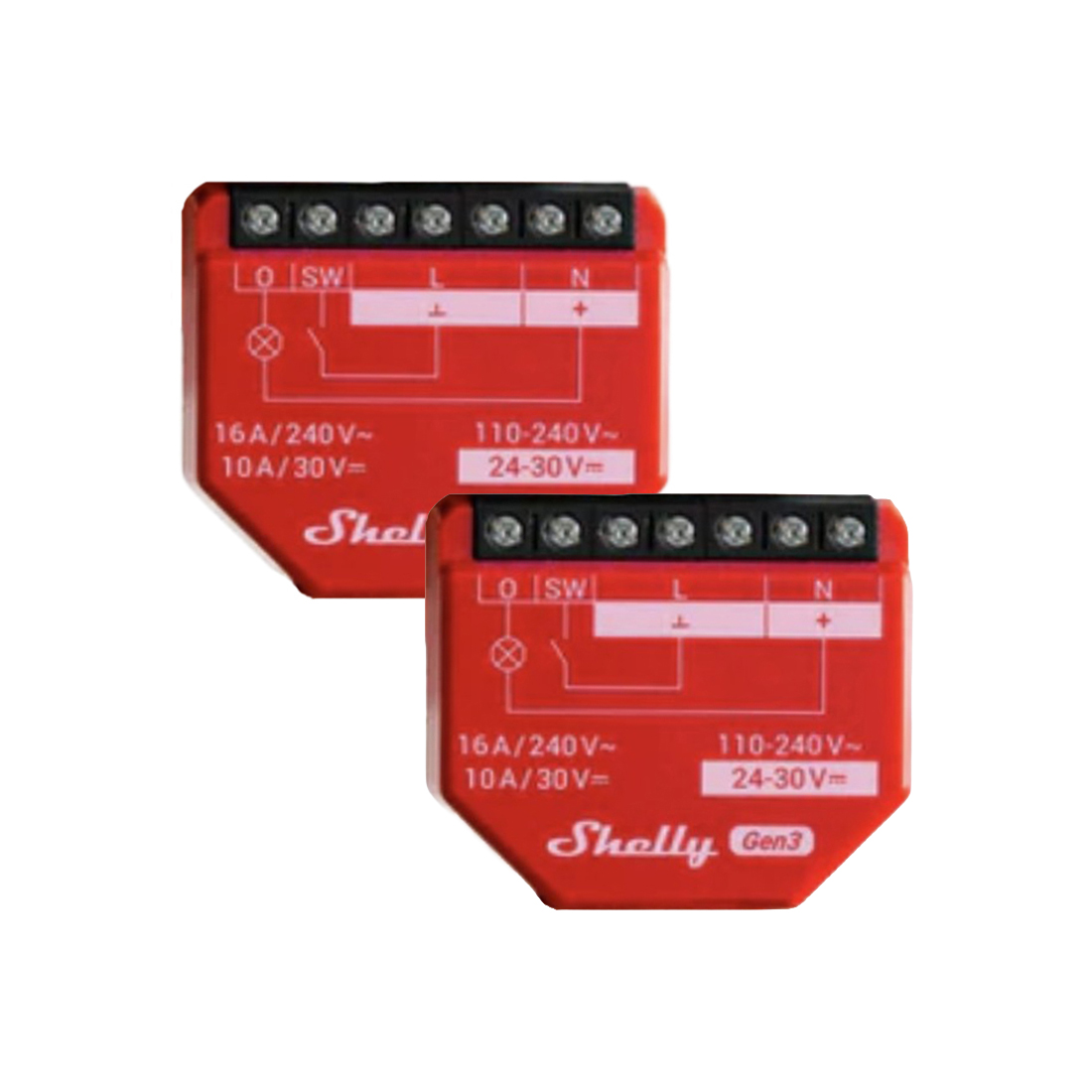

Shelly 1PM Gen3 x2

Wi-Fi-operated smart switch, with power monitoring, for remote control of a wide range of home appliances and office equipment.
MSRP: $53.33
Manufacturer: Shelly Products
SKU: 3800235261804

Features

  • New Matter certified. (Available after updating to latest firmware.)
  • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization
  • New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
  • Improved durability of terminals
  • High security
  • Wi-Fi range extender & Bluetooth gateway
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Specs

Power supply 110 - 240 V~
24-30 V⎓
Power consumption < 1.2 W
External protection Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)
Max. switching voltage 240 V~
30 V⎓
Max. switching current 16A (240 V~)
10A (30 V⎓)
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
Internal-temperature sensor Yes
Voltmeter (AC) Yes
Ammeter (AC) Yes
Wi-Fi Protocol: 802.11 b/g/n
RF band: 2401 - 2483 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
Bluetooth Protocol: 4.2 with BLE
RF band: 2400 - 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
CPU ESP-Shelly-C38F
Flash 8MB
Mounting Wall console
Screw terminals max. torque 0.4 Nm
Shell material Plastic
Schedules 20



Dimensions

H x W x D 1.46" x 1.65" x 0.63"
Weight 27 g / 0.95 oz
Conductor cross section 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in



Product Files
MANUALS

Features

  • New Matter certified. (Available after updating to latest firmware.)
  • Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization
  • New processor - ESP-Shelly-C38F chip with an increased memory of 8 MB
  • Improved durability of terminals
  • High security
  • Wi-Fi range extender & Bluetooth gateway
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants
  • Supports KNXnet / IP communication

Customers who bought this item also bought
Picture of Shelly 1PM Gen4 UL x2 pack

Shelly 1PM Gen4 UL x2 pack

3800238074647
Shelly 1PM Gen4 is a small form factor smart switch with power measurement, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
MSRP: $64.66

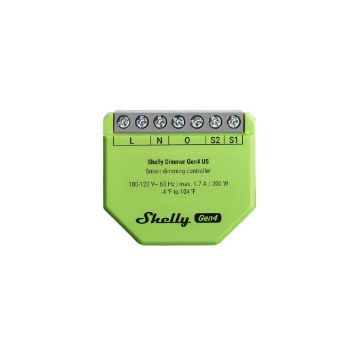

Picture of Shelly Dimmer Gen4 US
