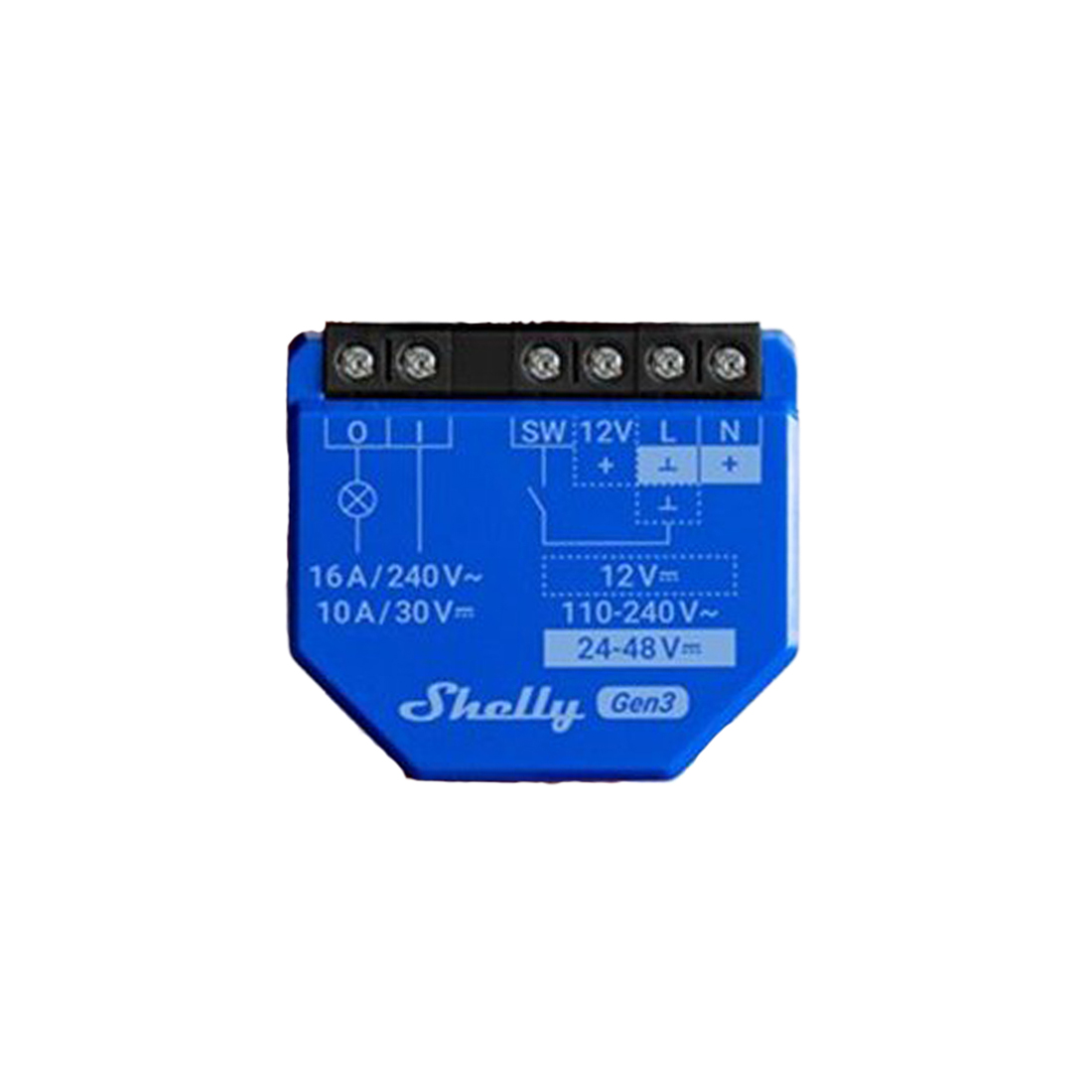

Shelly 1 Gen3

Shelly 1 Gen3 is a smart switch with potential-free contacts. Remotely control a wide range of home appliances and office equipment from anywhere. Retrofit your standard electrical wall boxes, power sockets, and light switches or other places with limited space.
MSRP: $21.49
Manufacturer: Shelly Products
SKU: 3800235261767

Features

  • Dry contacts (potential-free)​ - option for contactor control
  • ESP-Shelly-C38F chip with an increased memory of 8 MB
  • Improved durability of terminals
  • High security
  • Wi-Fi range extender & Bluetooth gateway
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No HUB required! Easy control through Shelly Smart Control app, various home automation protocols, platforms, as well as voice assistants

Specs

Memory 8 MB
CPU ESP-Shelly-C38F
MQTT Da
HTTP/HTTPS webhooks 20 with 5 URLs per hook
Intelligent On/Off Yes
Dry contacts Ne
Device temperature protection Yes
Intelligent On/Off Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
Encryption AES encryption (CCM mode)
Power supply DC 12V - 24V
Power supply AC 110-230V ±10%, 50/60Hz
Device power consumption < 1.2 W
Maximum load 16A
Altitude Up to 2000 m
Operational temperature -20ºC to +40ºC
Humidity 30 % to 70 % RH
Bluetooth 4.2
Bluetooth range Up to 10 m indoors and 30 m outdoors
Bluetooth RF band 2400 - 2483.5 MHz
Bluetooth Max RF Power < 4 dBm
Wireless/WiFi Protocol 802.11 b/g/n
Wireless/WiFi Range Up to 30 m indoors and 50 m outdoors
WiFi RF band 2401 - 2495 МHz
WiFi Max. RF power < 20 dBm
Mounting Wall box
Shell material Plastic
Screw terminals max torque 0.4 Nm



Dimensions

Size 37x42x16 mm
Weight 26 g
Conductor cross section 0.2 to 2.5 mm²
