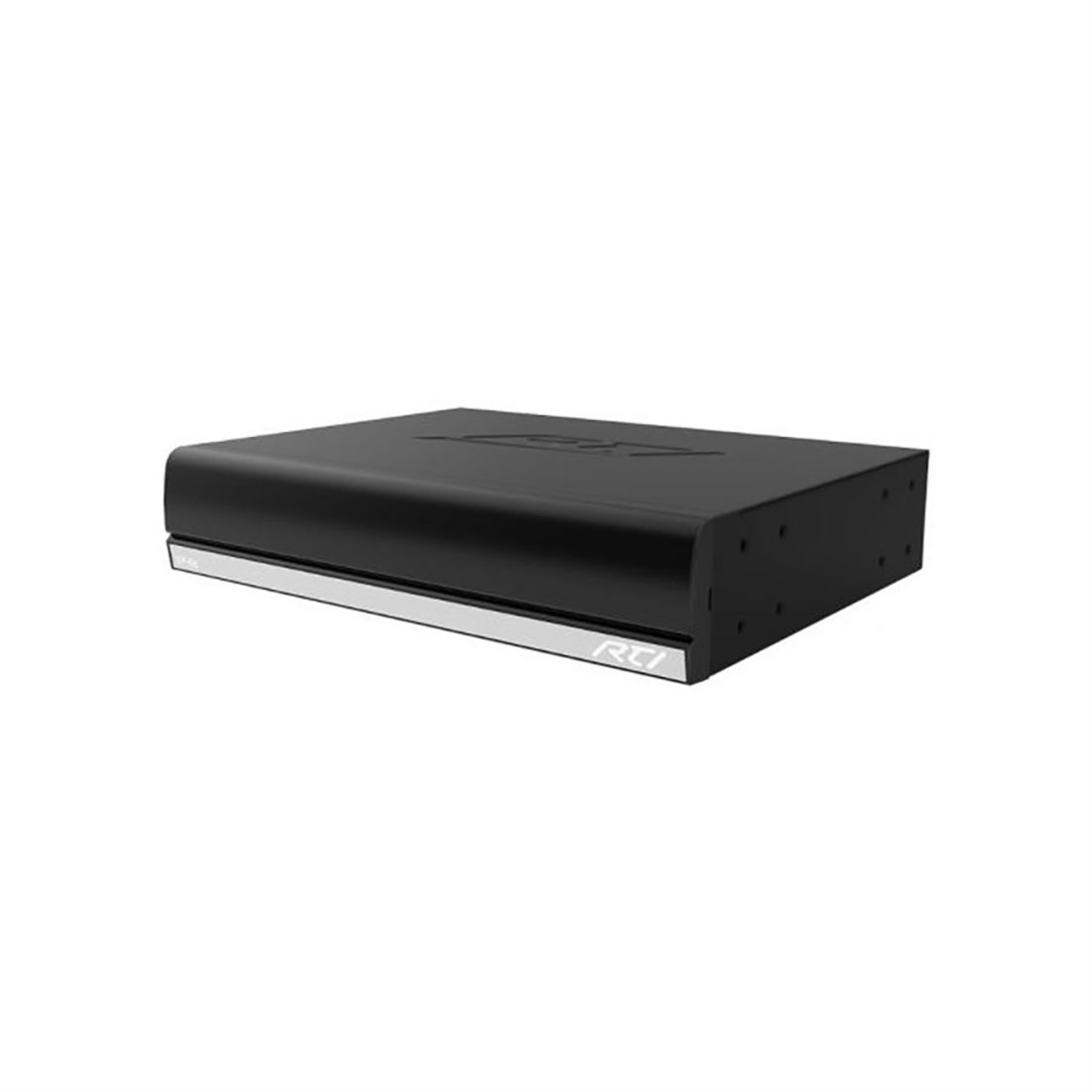

RTI XP Based Central Processor

RTI XP Based Central Processor
MSRP: $1123.00
Manufacturer: RTI
SKU: XP-6S
Features
  • Powerful 32bit, 1GHz CPU
  • 512MB of non-volatile Flash and 512MB of internal RAM memory
  • Compatible with all RTI wired, wireless (requires RTI RF antennas/Zigbee transceivers), and app-based user interfaces
  • Six multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems
  • Multi-purpose I/O ports also support optional RTI power sensing and communications modules
  • Three programmable 12VDC trigger outputs
  • Three assignable voltage sense inputs
  • Three programmable relay outputs
  • Three RS-232 ports for bi-directional communication
  • Built-in astronomical clock for time-based events and sleep timers
  • Input for connection of multiple RM-433 RF receiver modules
  • Variable IR output on all IR ports
  • Non-volatile Flash memory stores your system configuration even when power is not present
  • Fast USB 2.0 and Ethernet programming
  • Field upgradable firmware
  • Rack mountable or free standing
What’s in the box
  • XP-6S RTI XP Based Central Processor
  • Power supply (12V, 1A)
  • RJ45 to DB9 serial adaptor (3),
  • Rack ears (2) with screws
  • Feet (4) with screws
  • Terminal blocks 18-position (1)

 Spec Sheet Download

Specs

Power+12VDC, 1A
Multi-Purpose Output PortsSix 3.5mm jacks, Compatible with industry-standard IR emitters
IR Output Drive100mA maximum (per port, adjustable), 200mA maximum (high IR output port)
Infrared Frequency Range15 KHz - 460 KHz
Infrared InputCompatible with industry-standard repeaters and receivers
Trigger OutputsThree, 12VDC, 100mA max each
RelaysThree, 3 amps @ 30VDC
Sense InputsThree, 3-24VDC
RS-232 PortsThree, Bi-directional RJ45 Connections
Ethernet Port10/100Base-T, RJ45 Connection
USB PortsOne, Programming
RTI COM PortZigbee Communication Port, RJ45 Connection



Dimensions

Size (W x H x D)8.5" x 1.72" x 6"
Weight2 lb.
