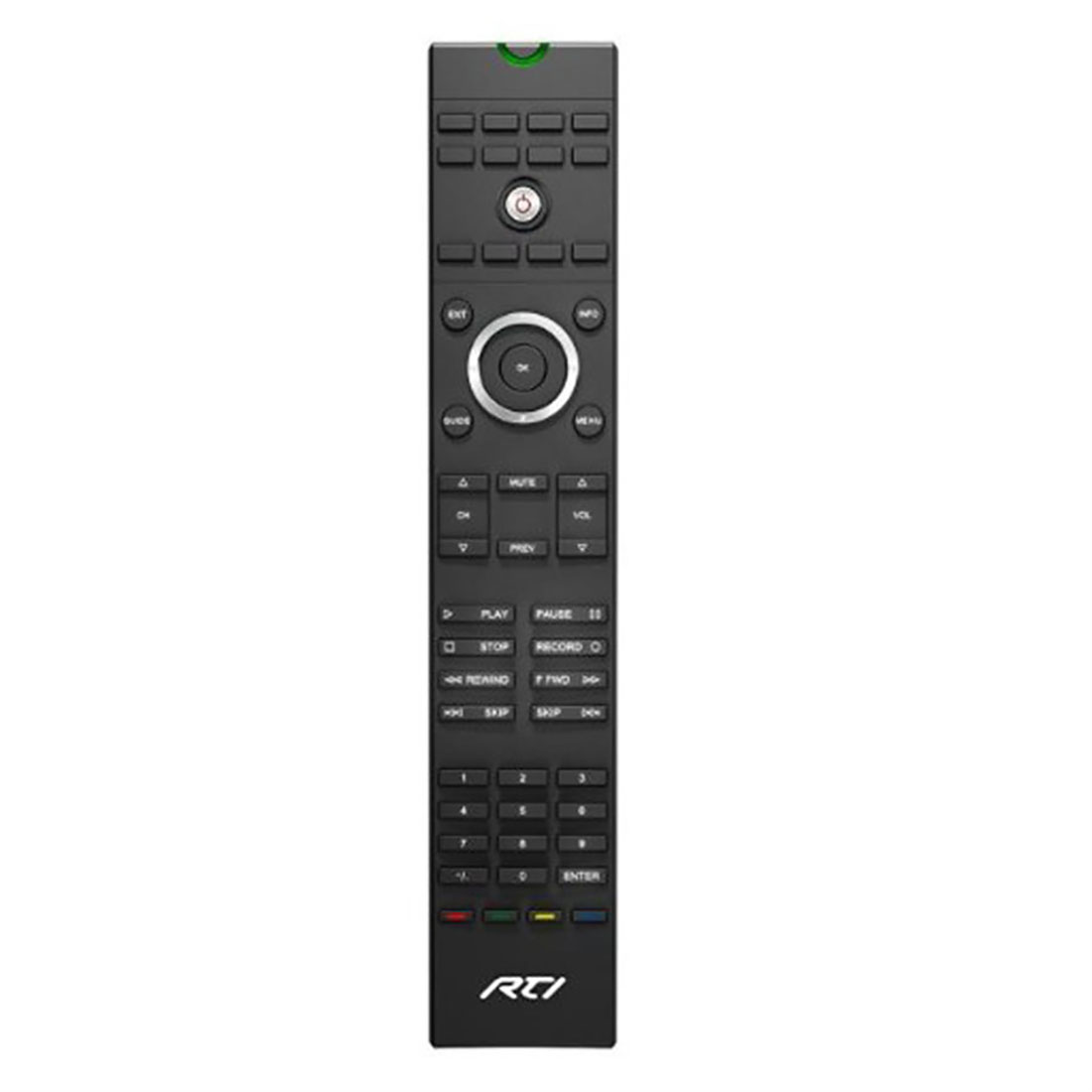

RTI Universal System Controller

The T1-B+ is the third generation of RTI's popular T1 universal system controller, now featuring the RTI dual RF platform and backlit buttons. The T1-B+ allows all other factory remote controls to be combined into one simple, ergonomic user interface providing powerful one-handed system control.
MSRP: $542.00
Manufacturer: RTI
SKU: T1-B+

Features

  • Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee technology)
  • Comfortable ergonomic design permits effortless, one-handed operation
  • Eight source and four general purpose assignable/programmable keypad buttons with interchangeable key labels-Laser Shark compatible
  • Ships with a certificate for one Laser Shark engraved button set
  • Forty assignable/programmable backlit keypad buttons
  • Capable of transmitting IR and RF from a single button press
  • Completely customizable and programmable
  • Optional modules/processors for voltage sensing (to monitor power status of equipment) and RS-232 control
  • System includes a Lithium-ion battery and a docking station
  • USB programming

What’s in the Box

  • (1) RTI T1-B+


Specs

Power3.6 VDC, 900mAh Lithium-ion battery pack
Power ManagementAutomatic on/off (tilt switch)
Infrared Control Range30 ft @ 60 degrees
Infrared Frequency Range15kHz-460kHz
RF Control RangeUp to 100ft
RF Carrier802.15.4 @ 2.4GHz (zigbee technology) and 433 MHz
Battery Charge Time3-4 hours
CommunicationsUSB programming port
EnclosureHigh-impact molded ABS plastic



Dimensions

Size (L x W x D)10” x 1.9” x .9”
Weight7 oz.



Product Files
SPEC SHEETS
MANUALS
