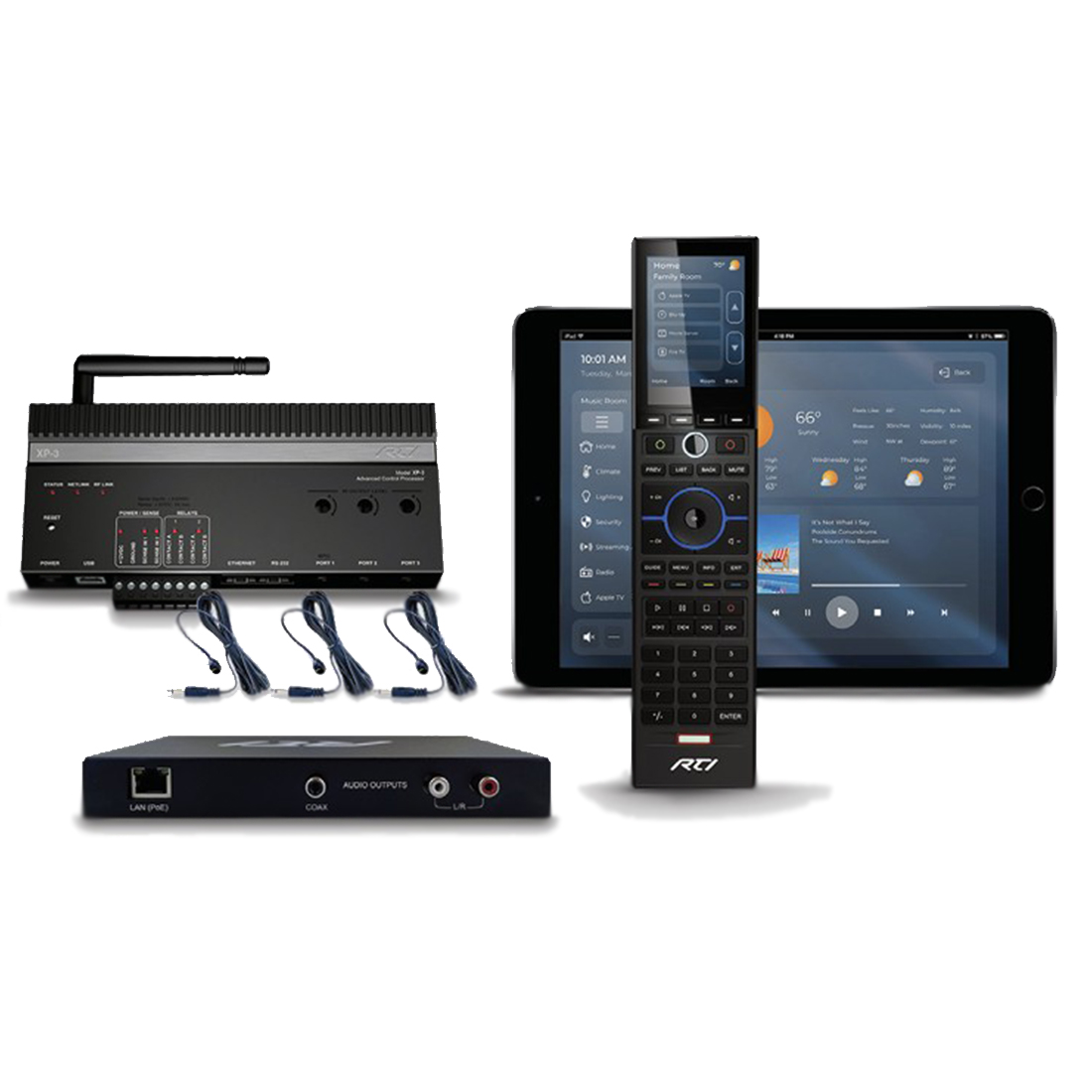

RTI Single Room Training Kit *For Training Use Only* (open box)

The SRTK-1 kit combines the power of the XP-3 control processor and the streaming convenience of the MS-1 Music Streamer with the vibrant, fully customizable graphical interface of the T2x touchscreen remote control for exceptional control in multiple environments. The included RTiPanel unlimited license enables control via Apple or Android smartphones or tablets.
MSRP: $1599.00
Manufacturer: RTI
SKU: SRTK-1/O

Features

  • All-in-one single room control and audio streaming solution
  • Used in the RTI New Dealer Authorization Training
  • XP-3 processor with Ethernet, RS-232, Infrared, Relay, I/O and Voltage Sensing ports
  • MS-1 Music Streamer with analog and digital audio output
  • Reliable two-way control communication via Zigbee between processor and remote
  • T2x touchscreen remote with hard buttons for intuitive, convenient control. Docking Station included
  • Licensed RTiPanel App allows control with iOS or Android smartphones and tablets
  • Fully customizable graphical user interface and programmable hard buttons with two-way feedback
  • Configurable macros and scenes through the Integration Designer programming platform

Specs

  • XP-3 Control Processor
    • Power Supply: +12V DC, 1A or PoE (802.3af)
    • Wireless Networking: IEEE802.15.4 Zigbee© network compliant
    • RF Frequency Range: 2.4Ghz - 2.5Ghz
    • Multi-Purpose Output Port (Port 1): One custom 3.5mm 4-conductor jack. Designed for RTI modules as well as industry-standard IR emitters.
    • IR Output Ports (Ports 2 & 3): Two, 3.5mm jacks. Compatible with industry standard IR emitters
    • IR Output Drive: 100mA maximum (per port, adjustable)
    • Infrared Frequency Transmission Range: 15kHz - 460kHz
    • RS-232 Port: One, Bi-directional, RJ45 Connection
    • Ethernet Port: One, 10/100Base-T with Power-over-Ethernet (Class 3)
    • Relay: Two, 5 Amps @ 30 VDC or 12V/100mA Trigger
    • Sense Inputs: Two, 3-24VDC. Off/Low Voltage condition must not exceed 1VDC
    • USB Ports: One, Programming
    • Wall-mount or free standing
  • T2x Remote Control
    • Power: 3.6 VDC, 1800 mAh Lithium-Ion Battery Pack
    • Power Management: Automatic On/Off (accelerometer / grip sensors)
    • Infrared Control Range: 30 feet (9.1 meters) @ 60 degrees
    • Infrared Frequency Transmission Range: 15kHz - 460kHz
    • Radio Frequency Control Range: Up to 100 feet (30.5 meters)
    • Radio Frequency Carrier: 802.15.4 @ 2.4GHz (Zigbee® Wireless Mesh Networking) & 433MHz
    • Wireless Ethernet: 802.11b/g @ 2.4Ghz
    • High-brightness color TFT LCD, 240x320, 64K colors
    • Display Size: 2.8 in (71 mm) diagonal
    • Blue/White LED Backlights (Keypad)
    • System Memory: 128M Bytes Flash (non-volatile) memory
    • Total number of devices is limited only by memory
    • Communications: USB 2.0 programming port
    • Enclosure: High-impact molded ABS plastic
  • MS-1 Music Streamer
    • Power Supply: PoE (802.3af)
    • Mounting: Free-Standing or Rack Mount with RM-4VIP2 (optional)
    • Audio Output: 1 x RCA L/R analog audio, 1 x RCA Digital Coaxial
    • Digital-to-Analog Conversion: Hi-Res 24-bit/192kHz
    • Sample Rates: 44.1kHz -192kHz
    • Ethernet Port: 1 x LAN RJ45 Connector 10/100Mbps
    • Control: IP

Dimensions

  • XP-3 Control Processor
    • 7” x 3” x 1”
    • 6.4 oz
  • T2x Remote Control
    • 10.0” x 2.3” x 0.7”
    • 8.8 oz. (With battery pack)
  • MS-1 Music Streamer
    • 7.5” x 4.75” x 1”
    • 1.47 lbs
