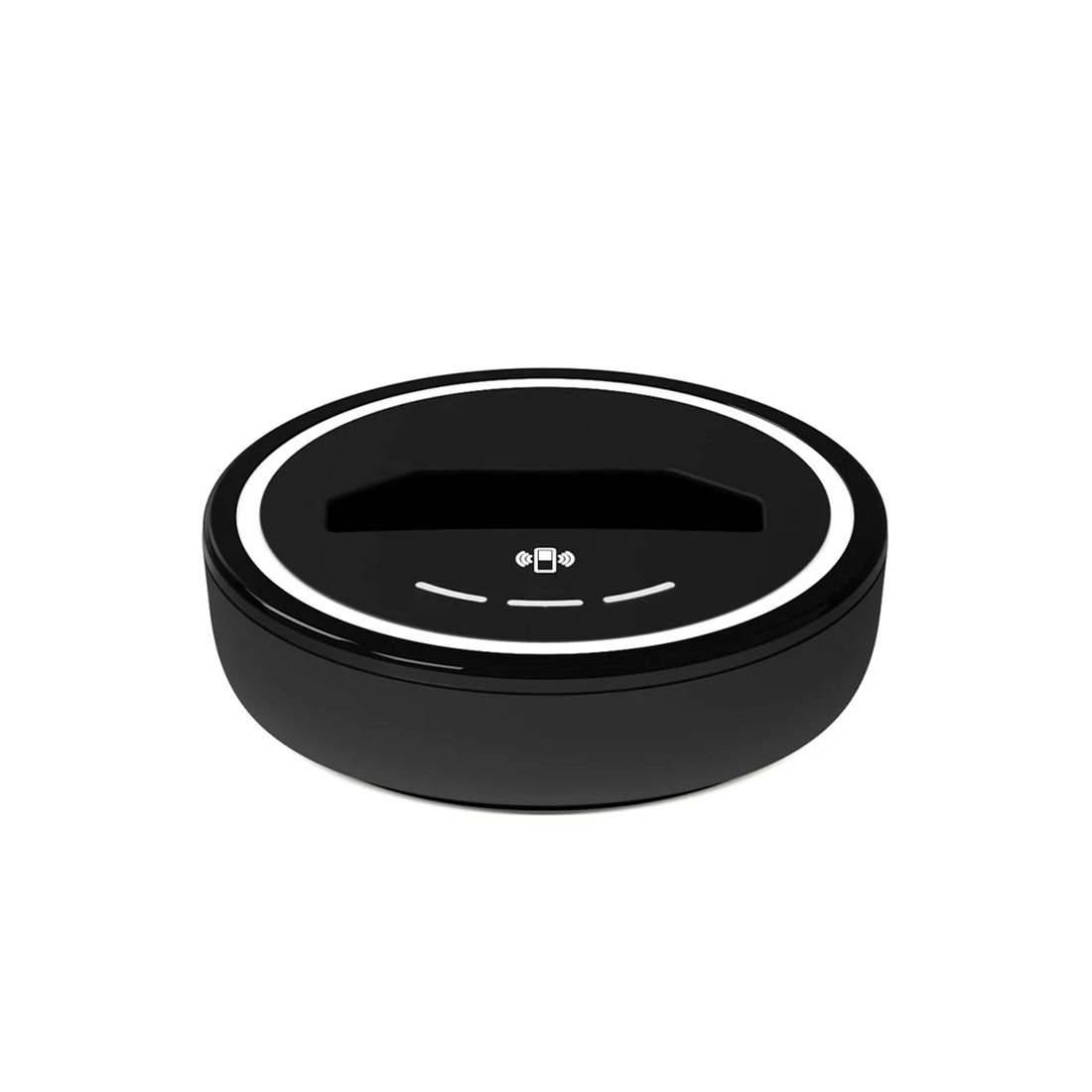

RTI Intelligent Surface Remote Advanced Base Controller

Introducing the ISR-AB Advanced Base - the first-ever charging base to offer programmable control buttons and a "Find My Remote" button, adding unmatched convenience and elevating the control experience. The ISR-AB Advanced Base is the perfect companion to your Intelligent Surface remote, providing an instant and dedicated Wi-Fi connection for seamless control.
MSRP: $258.00
Manufacturer: RTI
SKU: RTI-ISR-AB

Features

  • Wi-Fi access point for solid, dedicated, instant-on Wi-Fi connection for the ISR-4 or ISR-2
  • Wired or wireless connection to the system
  • Three programmable soft-touch buttons for scenes and commands
  • "Find My Remote" button
  • Modern design with LED light ring for operation status
  • Easy charging for the ISR-4 or ISR-2
  • The ISR-AB programs only with RTI Integration Designer 11.12 or later to deliver a 100% customizable experience exclusive to RTI control and automation systems.

Specs

Power Supply +5VDC, 2.0A
Ethernet 10/100BaseT, RJ-45 Connector
PoE 802.3af
Wi-Fi Frequeny 2.4GHz
Wi-Fi Modes 802.11b/g/n
Wi-Fi Range Minimum of 30ft (9m) indoors
Modes of Operation Hard Wired Ethernet and Wi-Fi Bridge Mode
Security WPA or WPA 2 password protection
Buttons Four capacitive touch, all programmable through ID11.
One "Find my Remote" and three programmable scenes.
Button LEDs Combined illumination for "Find my Remote" and three soft-touch buttons.
LED Light Ring Illuminates in set colors to correspond to different modes of operation:
BLUE - No remote in the ISR-AB
RED - Remote is in the ISR-AB and charging
GREEN - Remote is in the ISR-AB and fully charged
Power for ISR Remote Charging for ISR-4 or ISR-2
Battery Charge Time 3-4 Hours
Minimum ID Version 11.12 or later
Warranty Three Years (Parts & Labor)
