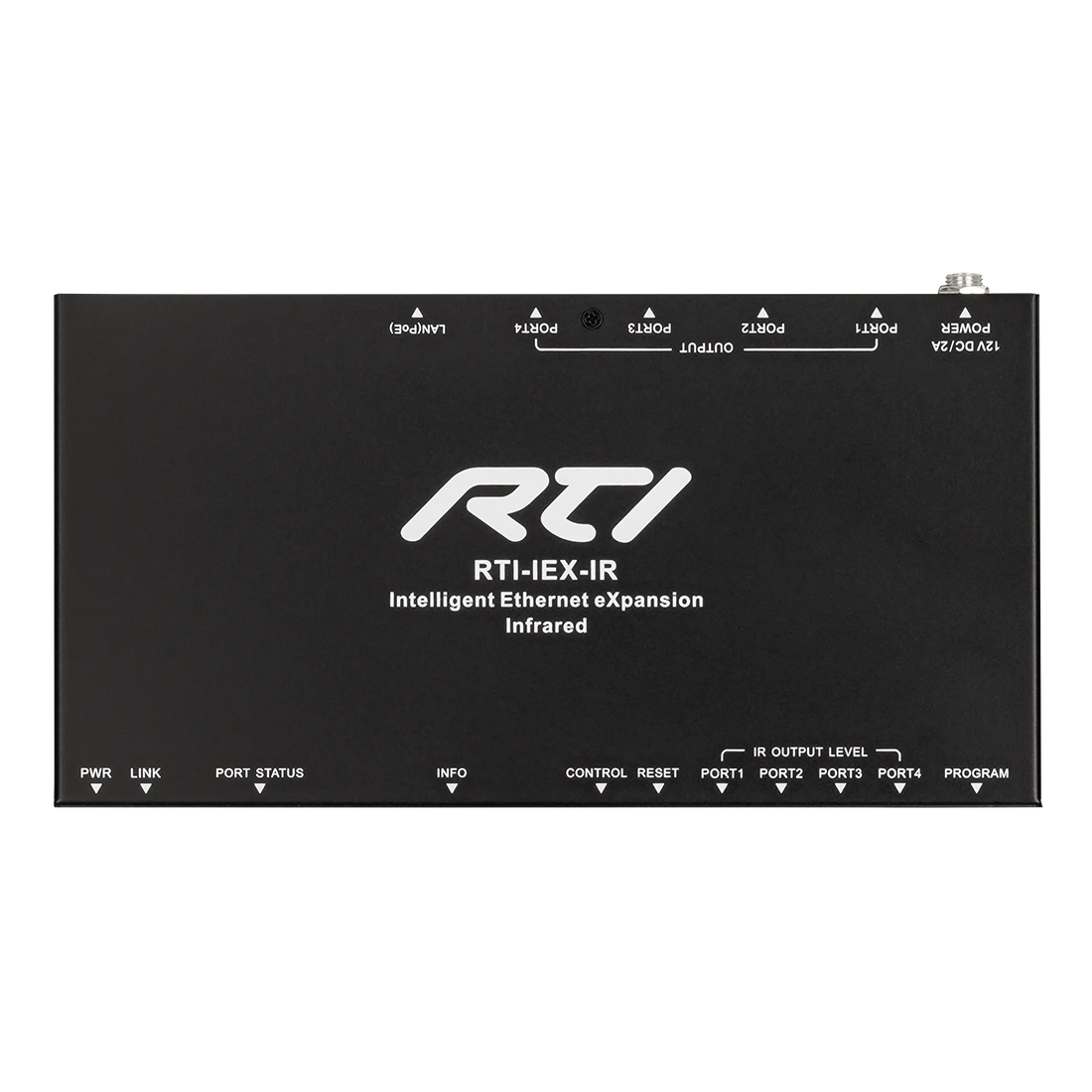

RTI Intelligent Ethernet Expansion w/ 4 IR Ports

Intelligent Ethernet Expansion with four infrared ports for control, the IEX-IR extends control directly from the processor. Flexible, adaptable, compact, and versatile, the IEX-IR solves the solution of control exactly where you need it. An additional benefit is it is very easy to configure and program as the ports become addressable from the processor as IR connections.
MSRP: $228.00
Manufacturer: RTI
SKU: IEX-IR

Features

  • Infrared control exactly where it’s needed, being local to the device
  • Compact size to allow easy mounting in difficult to reach areas and create minimal environmental disruption
  • Convenient display to visually indicate key data such as IP and MAC address
  • Provides expansion I/O additional assignable IR ports to the control processor expanding it’s I/O capabilities
  • Web page to give easy access to network information, firmware upgrade capability, and system operations

What's in the Box

  • 12V 2.0A Power SupplyUSB A to C
  • 4 x IR Emitters
  • 2 x mounting brackets
  • 4 x screws for the mounting brackets
  • DIN rail mounting plate
  • 4 x screws for the mounting plate
  • Small screwdriver for IR adjustment

Specs

Processor IC Rockchip RK3506G2
Flash Memory 256Mb
Ethernet RJ45: 1Gb PoE
USB-C Programming port
Display 0.91” OLED
Infrared 4 ports (3.5mm mono connectors)
Frequency Range 15kHz - 460 kHz
IR Output Drive 100mA maximum (per port, adjustable)
Max Power Consumption 24W (12V 2A)
Power Supply Unit Input: AC 100-240V~ 50/60HZ
Output: DC 12V 2A
Environmental Operating Temperature: 23 to 125°F (-5 to 51°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Operating Humidity: 5-90% RH (No Condensation)
Cooling: Air vents



Dimensions

Size 7.88" x 4.05" x 0.79"
Weight 1 lb
