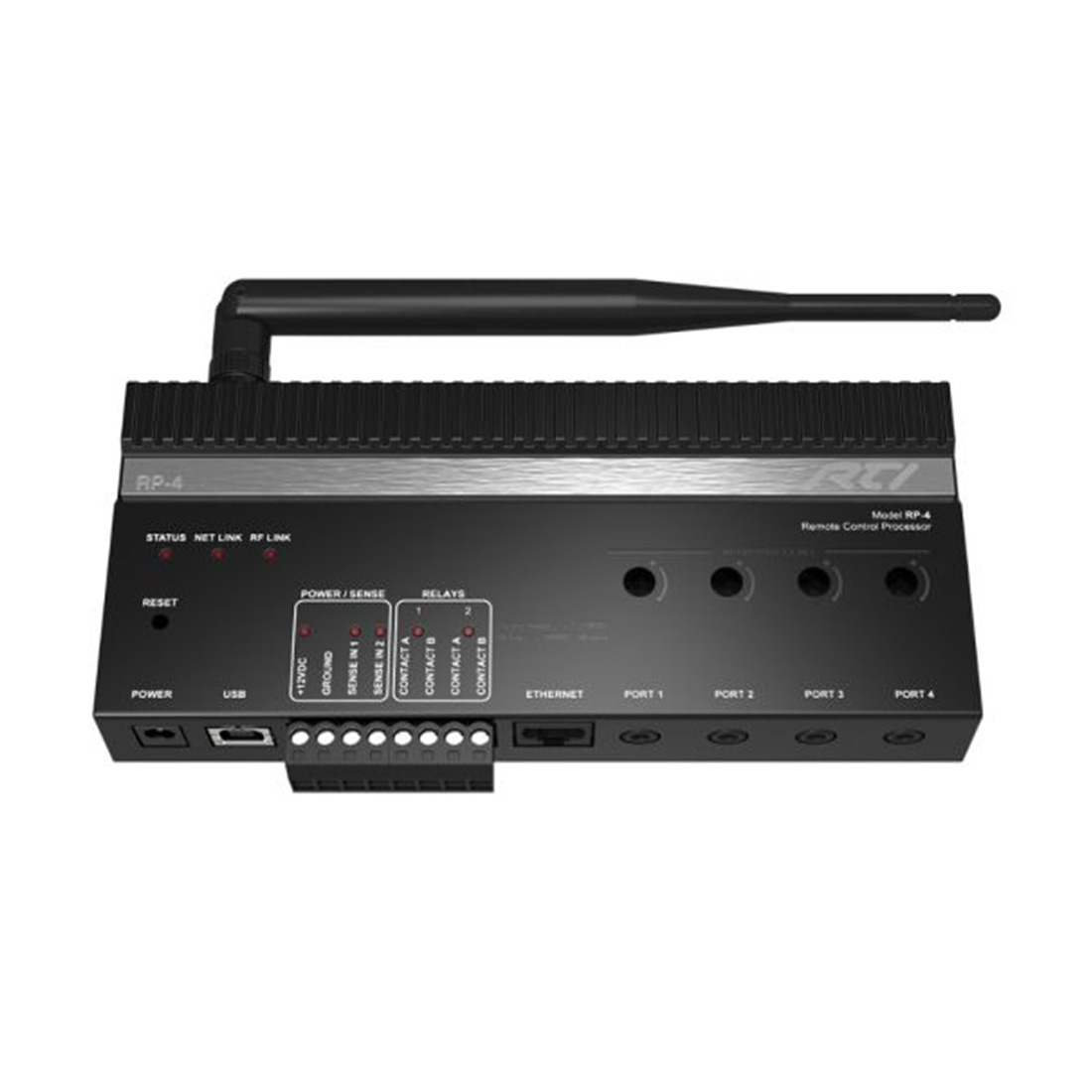

RTI Integrated Remote Control Processor
Special Order Only
Specs
- Power Supply: +12V DC, 1A
- IR Output Ports: Four (4), 3.5 mm jacks
- IR Output Drive: 100mA maximum (per port, adjustable)
- Infrared Transmission Bandwidth: 15kHz - 460kHz
- Ethernet Port: One, RJ45 Connection, 10/100Base-T
- Relays: Two, +30VDC, 5A max
- Sense Inputs: Two, 3-24VDC
- RF Receiver Carrier Frequency: 433 MHz
- Mounting: Wall-mount or free standing
- Operating Temperature: +32°F to +122°F (0°C to +50°C)
- Operating Humidity: 5% to 95% non-condensing
Dimensions
