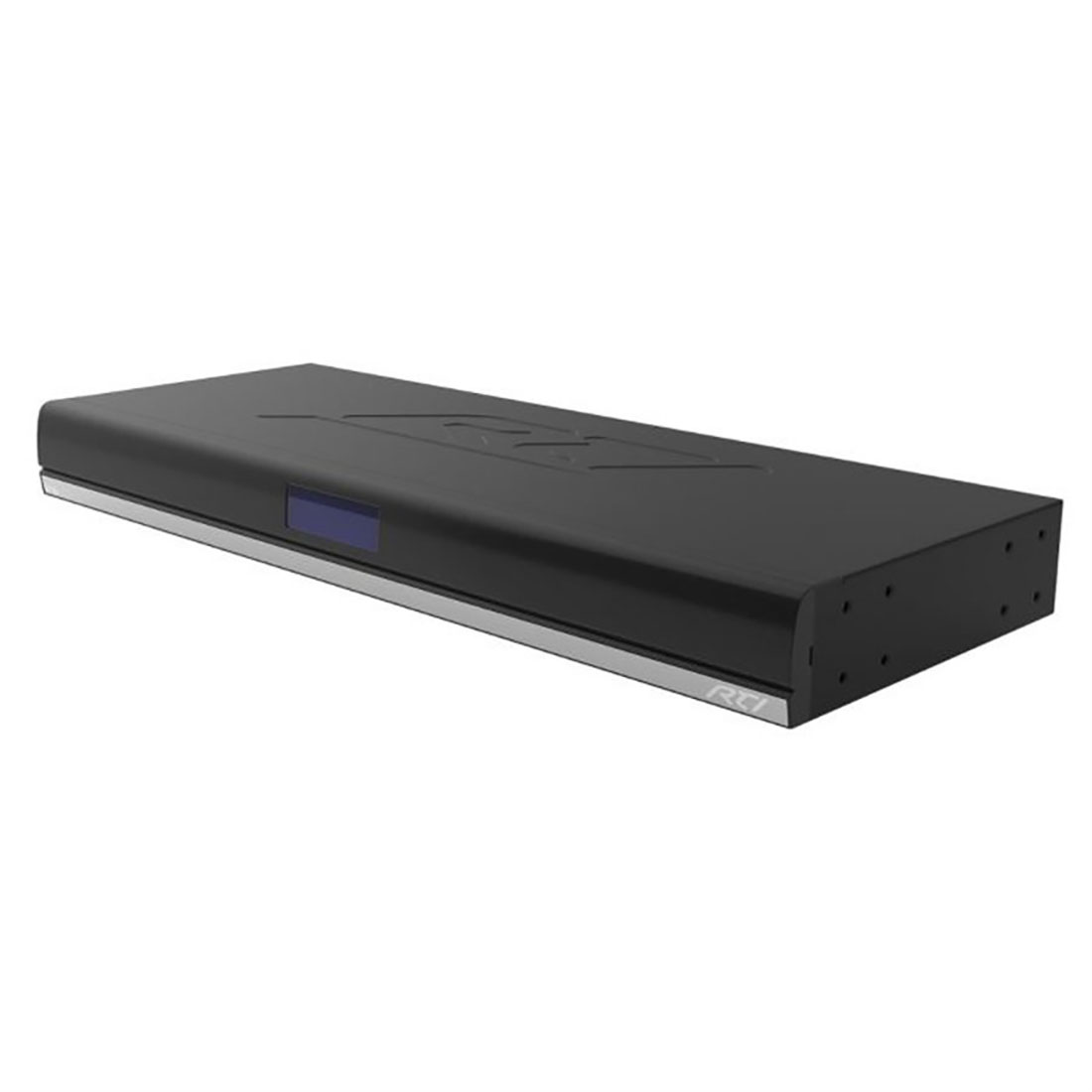

RTI Advanced XP Central Processor

RTI Advanced XP Central Processor
MSRP: $2774.00
Manufacturer: RTI
SKU: XP-8V
Features
  • Powerful 1GHz i.MX CPU
  • 1GB of RAM memory and 512MB of non-volatile Flash memory
  • HDMI output for OSD provides bidirectional control interface on a TV
  • Eight two-way RS-232 ports
  • Eight relays can be programmed as a contact closure or voltage trigger
  • Eight multi-purpose I/O ports are compatible with industry standard IR emitters and optional RTI power sensing and communications modules
  • Eight sense inputs can trigger events based on contact closure or voltage
  • Astronomical clock allows time-based events
  • SD/MM Card Slot for Memory Expansion
  • Front panel controls/display (11 Buttons for front panel control)
  • All output ports incorporate both short-circuit and overload protection
  • Variable IR output on all ports
  • Programmed using the Integration Designer Software
  • Non-volatile Flash memory stores your system configuration even when power is not present
  • Field upgradable firmware
  • USB and Ethernet programming
  • Input for connection of both 433MHz and 2.4GHz Zigbee RF modules
  • Rack mountable or free standing
What’s in the box
  • XP-8V RTI Advanced XP Central Processor
  • Power supply (12V, 1A)
  • RJ45 to DB9 serial adaptor (8)
  • Rack ears (2) with screws
  • Feet (4) with screws
  • Terminal blocks (3x 4-position, 3x 2-position)

 Spec Sheet Download

Specs

Power+12VDC, 1A
Multi-Purpose Output PortsEight custom 3.5mm 4-conductor jacks, Designed for RTI modules as well as industry-standard IR emitters
IR Output Drive100mA maximum (per port, adjustable), 200mA maximum (high IR output port)
Infrared Frequency Range15 KHz - 460 KHz
Infrared InputCompatible with industry-standard repeaters and receivers
Video Output of OSDHDMI 720p/1080p
RelaysEight, 3 amps @ 30VDC or 12V/100mA Trigger
Sense InputsEight, Digital/Closure
RS-232 PortsEight RJ45 Connections
Ethernet Port10/100Base-T, RJ45 Connection
USB PortsTwo Host, One Programming
RTI COM PortTwo-way Zigbee Communication Port, RJ45 Connection
Expansion PortRS-485/IR/PWR, RJ45 Connection
Memory ExpansionSD/MM Card Slot



Dimensions

Size (W x H x D)17" x 1.7" x 6.4"
Weight4 lb.
