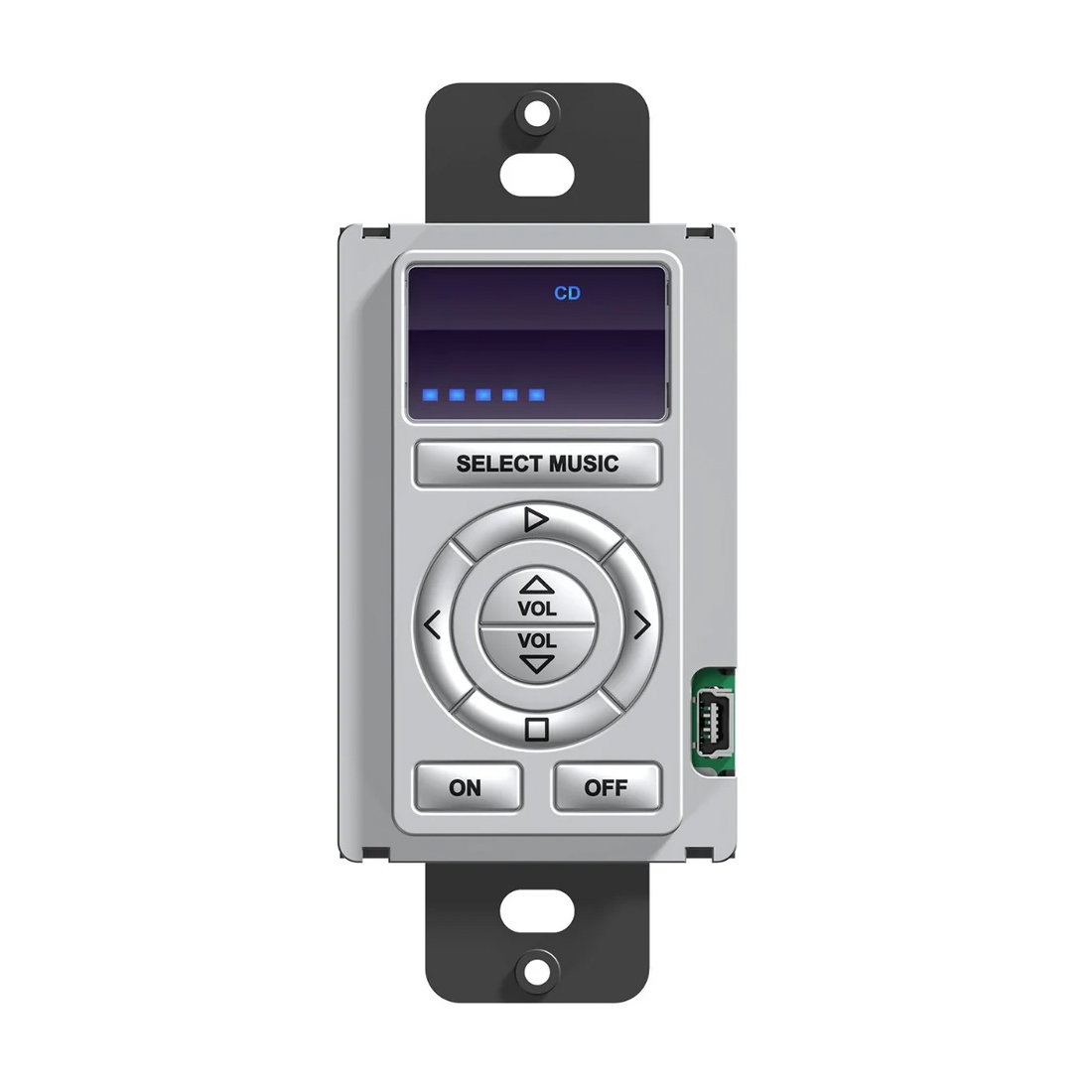

RTI 9 Button Single Gang In-Wall Multi-room LED Keypad

The RKM-1+ is a simple, intuitive keypad designed for multi-room audio control. Eight fully-programmable hard buttons and an open architecture provide the flexibility to control almost any multi-zone receiver or distributed audio system.
MSRP: $226.00
Manufacturer: RTI
SKU: RTI-RKM1-PLUS

Features

  • Blend your flush-mount keypad into the wall and use it for simple control of your home or business.
  • Nine buttons provide quick access to control functions such as lights, music, audio/video source selection.
  • Control intuitively with the buttons of your keypad and get status feedback from controlled devices on the status display such as on/off or arm/disarm status, dimming value of lights, selected audio/video source.
  • Control devices directly without a control processor by connecting a CPB-1 Control Block.
  • Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.
  • Power your keypad by connecting the control port to a CB-8 Connecting Block and establish two-way control communication with RTI processors and accessories.
  • Mount your keypad conveniently in a standard US single gang wall box.
  • Use any standard Decora® type faceplate (sold separately).
  • Fits in a single gang outlet box.
  • Eight selectable sources.
  • Backlit volume level indicator.
  • Customizable LED backlit film source indicator.
  • Completely customizable and programmable.
  • USB Programming.

What's in the Box

  • RKM-1+ In-Wall Audio Distribution Keypad (white)
  • Additional Keypad Cover
  • Keycap Set
  • Mute & Power Buttons (1 each - black & light almond),
  • Window Film (1 clear, 1 transparent purple)
  • Label Sheet
  • (2)Screws

Specs

Power +9VDC to +16VDC, 350mA max
Backlights Blue LED - Eight sources
Blue LED - Nine volume level indicators
Infrared Output Port 200 mA output
Drives up to 1000ft (300 m) of wire
Total System Memory 64k Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure Formed steel, black powder coat
Front Plate High-impact molded ABS plastic, white
Mounting Mounts into single gang box
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)



Dimensions

HxWxD 4.1" x 1.8" x 1"
Installation Cut-Out (HxW) 2.8" x 1.8"
Total Depth in Wall 0.75"
Weight 4 oz
