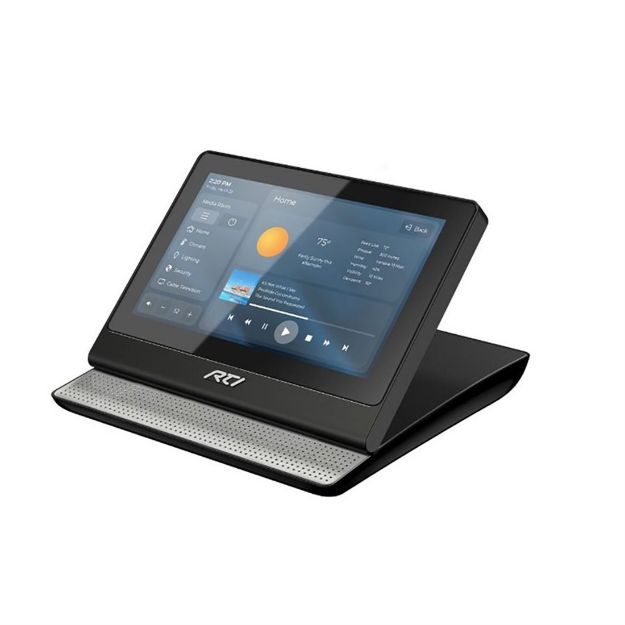

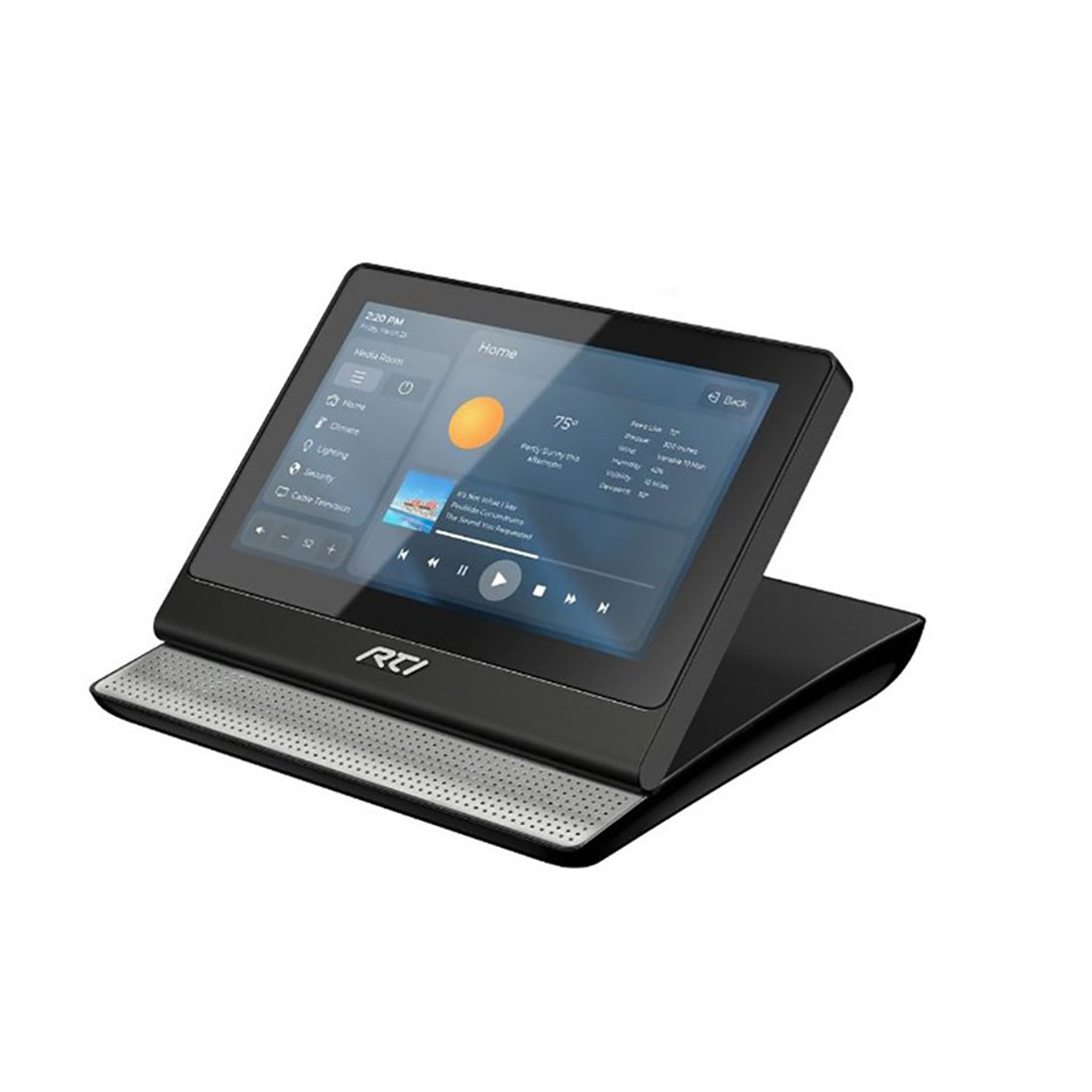

RTI 7" Tabletop Touchscreen Controller

RTI 7" Tabletop Touchscreen Controller
MSRP: $1254.00
Manufacturer: RTI
SKU: CX7
Features
  • 800x480 WVGA LCD with integrated multi-touch capacitive touch screen
  • Composite, S-Video or component video input at up to 480i, 576i, 480p or 576p
  • Analog audio input and stereo speakers
  • Integrated 10/100 Base-T and 802.11 wireless ethernet
  • Built-in camera, microphone and speakers enable video intercom capability
  • Built-in high output IR port for direct control
  • Powered using power supply, CB8 or PoE
  • Optional modules/processors provide additional two-way control
  • USB and ethernet programming
  • Adjustable tilt display (from 10º-90º) or unit can be mounted under a cabinet
  • Optional modules/processors provide additional control capabilities including two-way communication via RS-232/IP, sensing, IR and relay control

Specs

Power+9VDC to +16VDC, 1A max or PoE (using class 3 PoE ethernet router/injector)
Power ManagementAdjustable backlight brightness/power down time
Touchscreen DisplayHigh-brightness color TFT LCD / WVGA (800x 480 pixels) with 65K colors / Integrated high-resolution capacitive touchscreen
Display Size7” diagonal
Display BacklightDual CCFL, 300nit
Infrared Output Port10/100 Base-T with Power-over-Ethernet (using class 3 PoE ethernet router/injector)
Wireless Ethernet802.11b/g
Total System Memory256M Bytes Flash (non-volatile) memory
Device CapabilityTotal number of devices is limited only by memory
Macro CapabilityUnlimited steps in a single macro / total number of macros is limited only by memory / Macro capability on every button
CommunicationsUSB programming port
Video Input3 BNC connectors, composite, S-video or component analog video inputs NTSC/PAL/SECAM
EnclosureHigh-impact molded ABS plastic
MountingTabletop or screws through mounting bracket (included)



Dimensions

Size (L x W x H)7.5” x 7.3” x 6.25”
Weight2.0 lbs.



Features
  • 800x480 WVGA LCD with integrated multi-touch capacitive touch screen
  • Composite, S-Video or component video input at up to 480i, 576i, 480p or 576p
  • Analog audio input and stereo speakers
  • Integrated 10/100 Base-T and 802.11 wireless ethernet
  • Built-in camera, microphone and speakers enable video intercom capability
  • Built-in high output IR port for direct control
  • Powered using power supply, CB8 or PoE
  • Optional modules/processors provide additional two-way control
  • USB and ethernet programming
  • Adjustable tilt display (from 10º-90º) or unit can be mounted under a cabinet
  • Optional modules/processors provide additional control capabilities including two-way communication via RS-232/IP, sensing, IR and relay control

}
