Specs

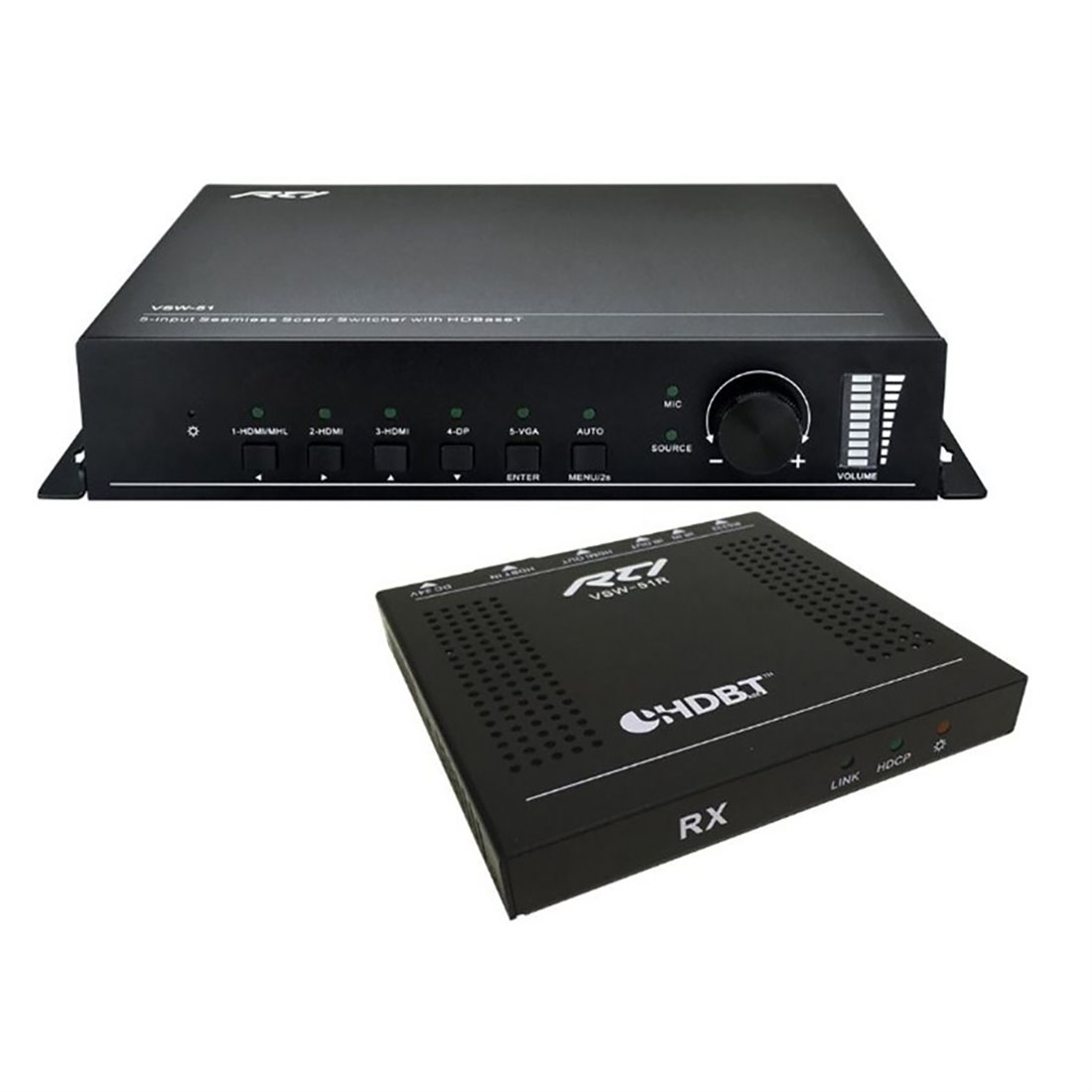

VSW-51 Presentation Scaler Switcher
- Power Supply: +24 VDC, 2.71A
- Mounting: Surface / wall mount or free standing
- Digital Video Input: One HDMI/MHL, Two HDMI, One Display Port
- Analog Video Input: One VGA, female 15-pin (supports YPbPr and composite video using supplied adapter cable)
- Video Output (mirrored): One HDMI / One HDBaseT with PoH (RJ45), 1920 x 1200<229ft
- Output Resolution Range: 1920x1200, 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, 1024x768
- Compliance: HDMI 1.4, HDCP 2.2
- Audio Line Input: Two analog stereo for VGA and display port (3.5mm jack)
- Microphone Input: One balanced/unbalanced (3-pin phoenix connector), switchable line / 48V phantom power
- Audio Input Impedance: 10kOhms
- Audio Output: One Dual-mono analog audio (5-pin phoenix connector)
- Audio Output Impedance: 70 Ohms
- Frequency Response: 20Hz to 20KHz
- Stereo Channel Separation: >80dB @ 1kHz
- Front Panel Control: 6 buttons, 1 volume knob, Bargraph and Status LED
- RS232: One, bi-directional (3-pin phoenix) for VSS-51 or remote device through HDBaseT
- IR Control of local or remote device: One, 3.5mm jack (IR In) to IR OUT or HDBaseT to IR OUT on HDBaseT receiver
- USB: Type-A for firmware update
- Ethernet Port: One, 10/100Base-T (RJ45)
Dimensions
- Size (W x H x D): 8.66” x 1.73” x 2.85”
- Weight: 1.76 lbs.
VSW-51R HDBaseT Receiver (included)
- Power Supply: via PoH (Power over HDBaseT)
- Mounting: Surface / wall mount or free standing
- Input: One HDBaseT with PoH (RJ45)
- Output: One HDMI
- Compliance: HDMI 1.4, HDCP 2.2
- Control Ports: One RS-232 Bi-directional (3-pin phoenix) / One IR in (3.5mm jack) / one IR out (3.5mm jack)
