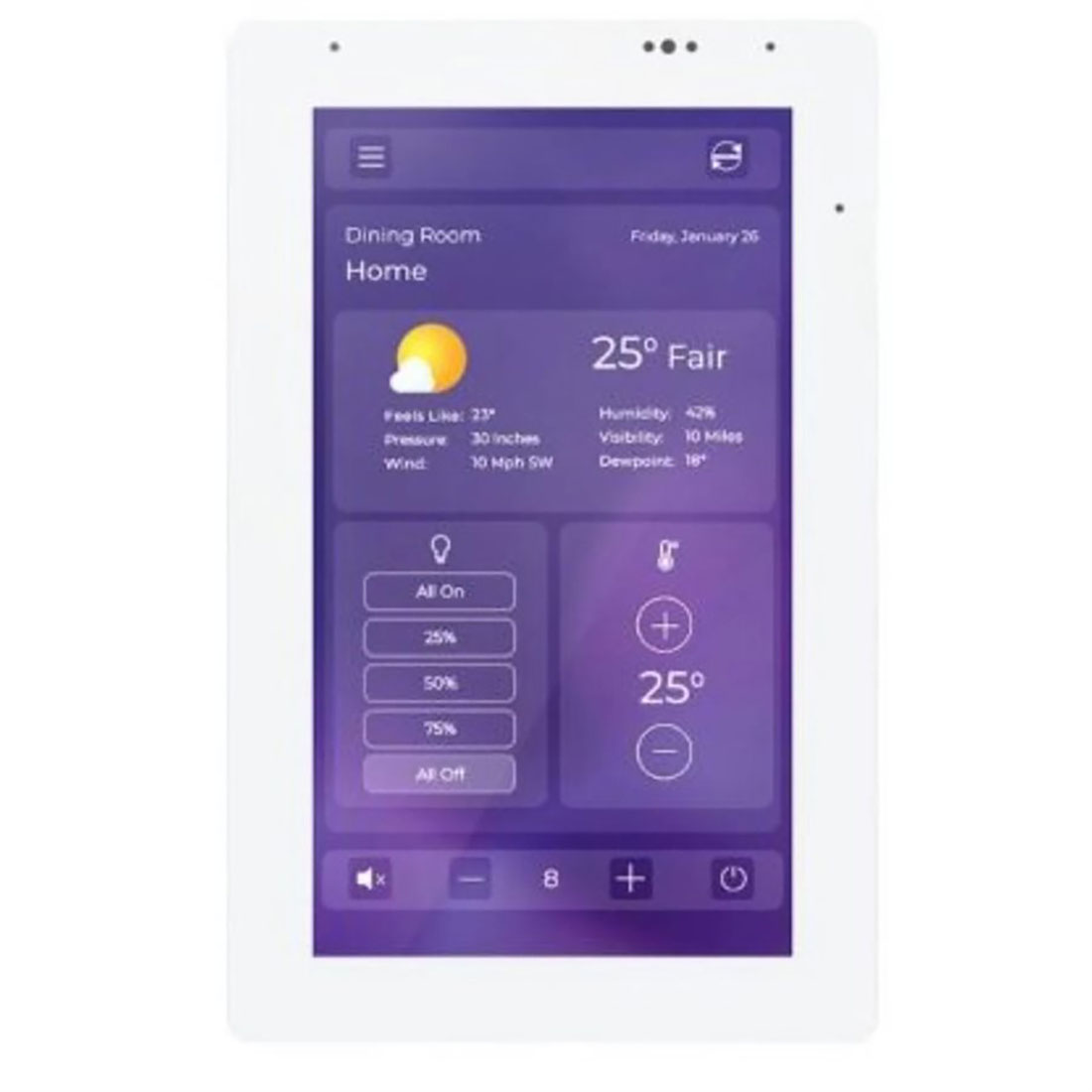

RTI 5" Intelligent Surface Touchpanel in White

RTI 5" Intelligent Surface Touchpanel in White
MSRP: $680.00
Manufacturer: RTI
SKU: IST-5-W
Features
  • Hi-resolution 5” capacitive touch screen (854x480) with ultra-thin bezel
  • Near-flush mount (less than 0.4” off wall)
  • Ethernet and WiFi options for control and communication
  • PoE or 12V DC power options
  • Exceptional video streaming and two-way intercom at H.264 or H.265 format
  • Dual speakers and far-field microphone array (with mute button)
  • Proximity and ambient light sensors
  • Portrait or landscape

Specs

Power (power supply not included)+12VDC, 2A or PoE (802.3af)
Power ManagementAdjustable backlight/proximity sensor
Touchscreen DisplayHigh-brightness color IPS LCD/FWVGA (854x480 pixels) with true black display filter/Integrated high-resolution capacitive touch screen
Display Size5” diagonal
Aspect Ratio16:10
Display BacklightLED Backlit, 400nit
Ethernet PortRJ-45, 10/100 Base-T with Power-over-Ethernet
MicrophoneBuilt-in digital microphone array/Mute button/Hardware based echo cancellation
SpeakersTwo (2), 8 Ohms, 1 watt
CommunicationsEthernet/Network IP/Wifi 2.4G/5G 802.11a/b/n/ac
Total System Memory4GB RAM, 64GB ROM
Device CapabilityTotal number of devices is limited only by memory
Macro CapabilityTotal number of macros is limited only by memory
MountingWall-Mount
InstallationUS standard single gang



Dimensions

Outer Bezel Dimension (W x H)5.24” x 3.33” x 0.43”
Wall Cut-Out Dimension (W x H)2.15” x 3.6”
Depth in Wall (Wall Box)1.34”
Weight7.05 oz.



Features
  • Hi-resolution 5” capacitive touch screen (854x480) with ultra-thin bezel
  • Near-flush mount (less than 0.4” off wall)
  • Ethernet and WiFi options for control and communication
  • PoE or 12V DC power options
  • Exceptional video streaming and two-way intercom at H.264 or H.265 format
  • Dual speakers and far-field microphone array (with mute button)
  • Proximity and ambient light sensors
  • Portrait or landscape

}
