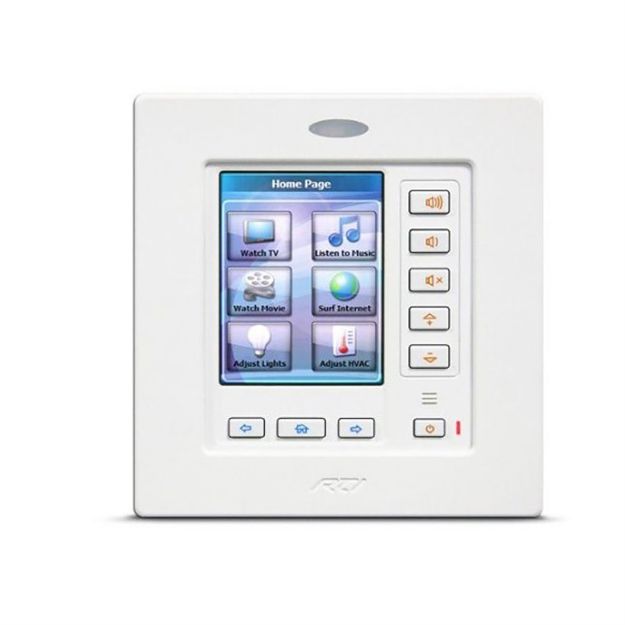

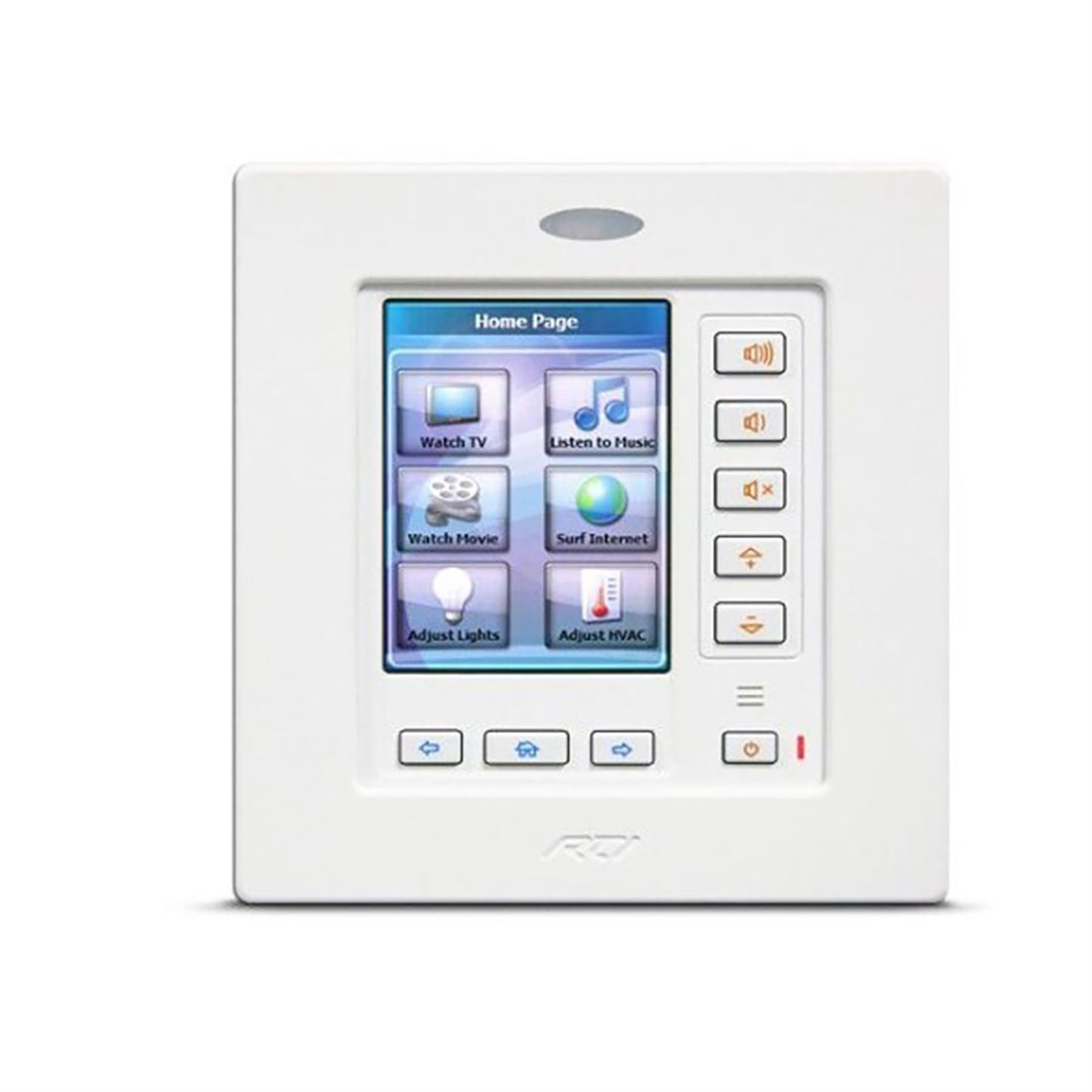

RTI 3.5 Color In-wall Controller


MSRP: $1000.00
Manufacturer: RTI
SKU: RK3VGW
Features
  • Stylish low-profile faceplate bezel
  • Integrated mounting wings for easy installation
  • Full VGA resolution LCD to display custom buttons, text and graphics
  • Customizable sounds
  • Integrated 10/100Base-T Ethernet port with Power-over Ethernet
  • Plasma friendly infrared receiver for command pass-through
  • IR output port drives up to 1000 feet of wire
  • Two power status input ports
  • Integrated high-resolution touchscreen
  • Powerful 32-bit, 200MHz XScale® processor
  • 32Mbyte of flash memory
  • Extremely bright, backlit display and keys with adjustable brightness
  • Nine assignable/programmable keys
  • Completely customizable and programmable
  • Non-volatile flash memory stores your system configuration even when power is lost
  • Easy-to-use Windows® based software for programming and customization
  • Field upgradable firmware
  • USB and Ethernet programming

Specs

Power+9VDC to +16VDC, .5A max or 802.3af Power-over-Ethernet
Touchscreen DisplayHigh-brightness color TFT LCD/Full VGA (480w x 640h pixels) with 65k colors/Integrated high-resolution resistive touchscreen
BacklightsWhite LED (Display), Blue/Amber LED (Keypad)
Infrared Output Port200mA output / Drives up to 1000ft of wire
Ethernet Port10/100Base-T with Power-over-Ethernet
EnclosureHigh-impact molded ABS plastic, black
Front-PlateHigh-impact molded ABS plastic, gray or black
MountingIntegrated mounting wings, or screws through front bezel



Dimensions

Display Size (H x W)3.5” Diagonal
Front Plate Dimensions (H x W)5.75” x 5.5”
Installation Cut-Out (H x W)5.125” x 4.75”
Total Depth in Wall1.125”
Weight10 oz.



Features
  • Stylish low-profile faceplate bezel
  • Integrated mounting wings for easy installation
  • Full VGA resolution LCD to display custom buttons, text and graphics
  • Customizable sounds
  • Integrated 10/100Base-T Ethernet port with Power-over Ethernet
  • Plasma friendly infrared receiver for command pass-through
  • IR output port drives up to 1000 feet of wire
  • Two power status input ports
  • Integrated high-resolution touchscreen
  • Powerful 32-bit, 200MHz XScale® processor
  • 32Mbyte of flash memory
  • Extremely bright, backlit display and keys with adjustable brightness
  • Nine assignable/programmable keys
  • Completely customizable and programmable
  • Non-volatile flash memory stores your system configuration even when power is lost
  • Easy-to-use Windows® based software for programming and customization
  • Field upgradable firmware
  • USB and Ethernet programming

}
