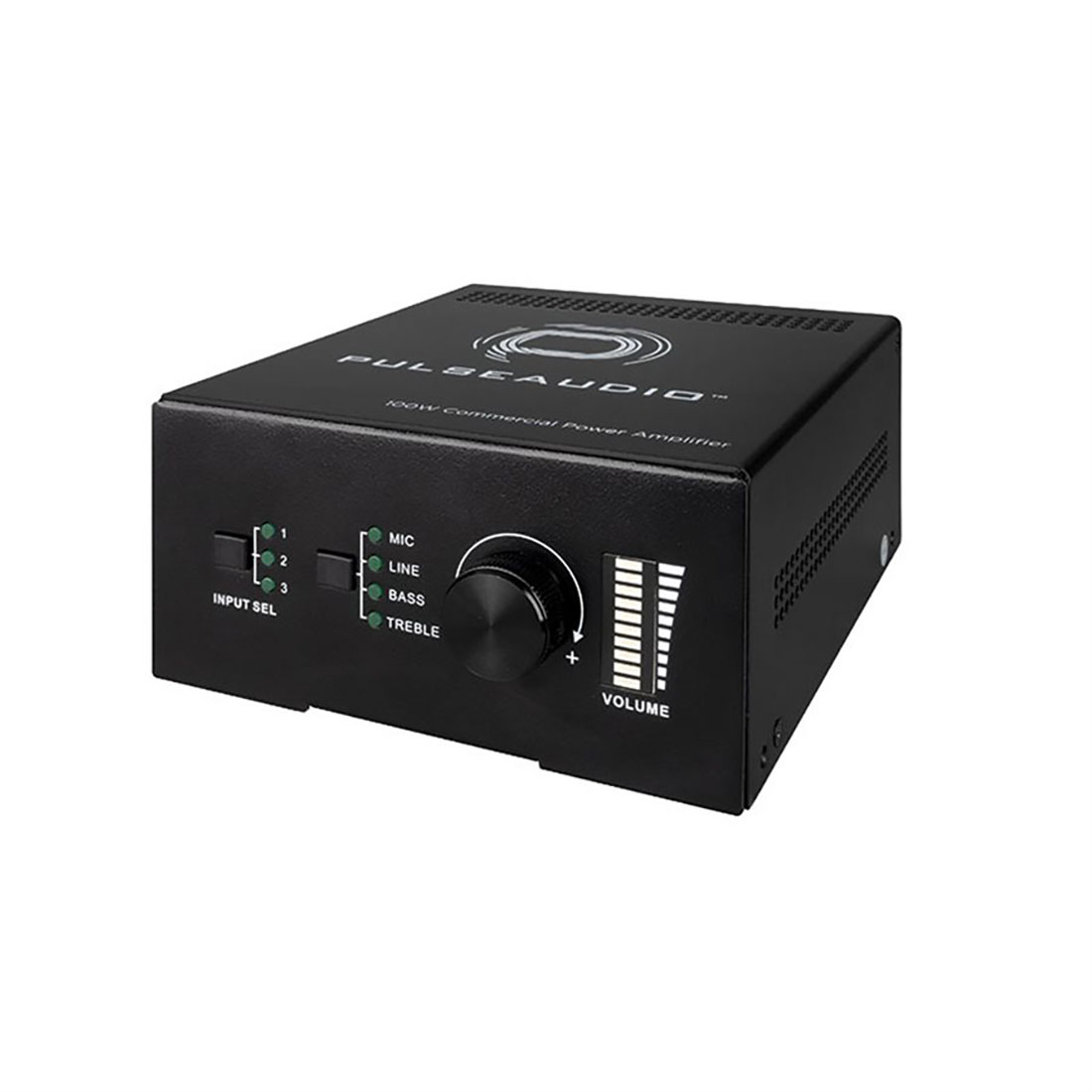

PulseAudio Single Channel 100w 70/100 Volt Amplifier w/Mic I

PulseAudio Single Channel 100w 70/100 Volt Amplifier w/Mic I
MSRP: $1181.99
Manufacturer: PulseAudio
SKU: PAV1100
Features
  • Mono audio output at 100W
  • Switchable between 70V and 100V
  • Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
  • MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
  • One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232
  • Manual volume control
  • Bass/Treble controllable via front panel, IR remote & RS232
  • Convection cooled, no external fan needed
  • LED indicator, for power and working status
  • Anti-static case design provides good protection for long-term and stable performance

Specs

Audio Input(2) stereo audio, (1) MIC, (1) Digital Fiber Audio Input Connector(2) RCA, (1) 3.5mm jack, (1) 3-pole
Output(1) mono amplifier
Output Connector(1) 3-pole 3.81mm captive screw connector
Output TypeConstant voltage 70V or 100V
Frequency Response20Hz~20kHz
CMRR70dB@20Hz~20kHz
SNR69.2db (Max)
Bandwidth20Hz~20kHz
Rated Power Output100 Watt
THD + Noise1%@1kHz, 0.3%@20kHz at nominal level
Voltage Gain37.8dB



Dimensions

Size (W x H x D)5.11” x 2.5” x 5.9”
Weight3.17 lb.



Features
  • Mono audio output at 100W
  • Switchable between 70V and 100V
  • Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
  • MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
  • One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232
  • Manual volume control
  • Bass/Treble controllable via front panel, IR remote & RS232
  • Convection cooled, no external fan needed
  • LED indicator, for power and working status
  • Anti-static case design provides good protection for long-term and stable performance
