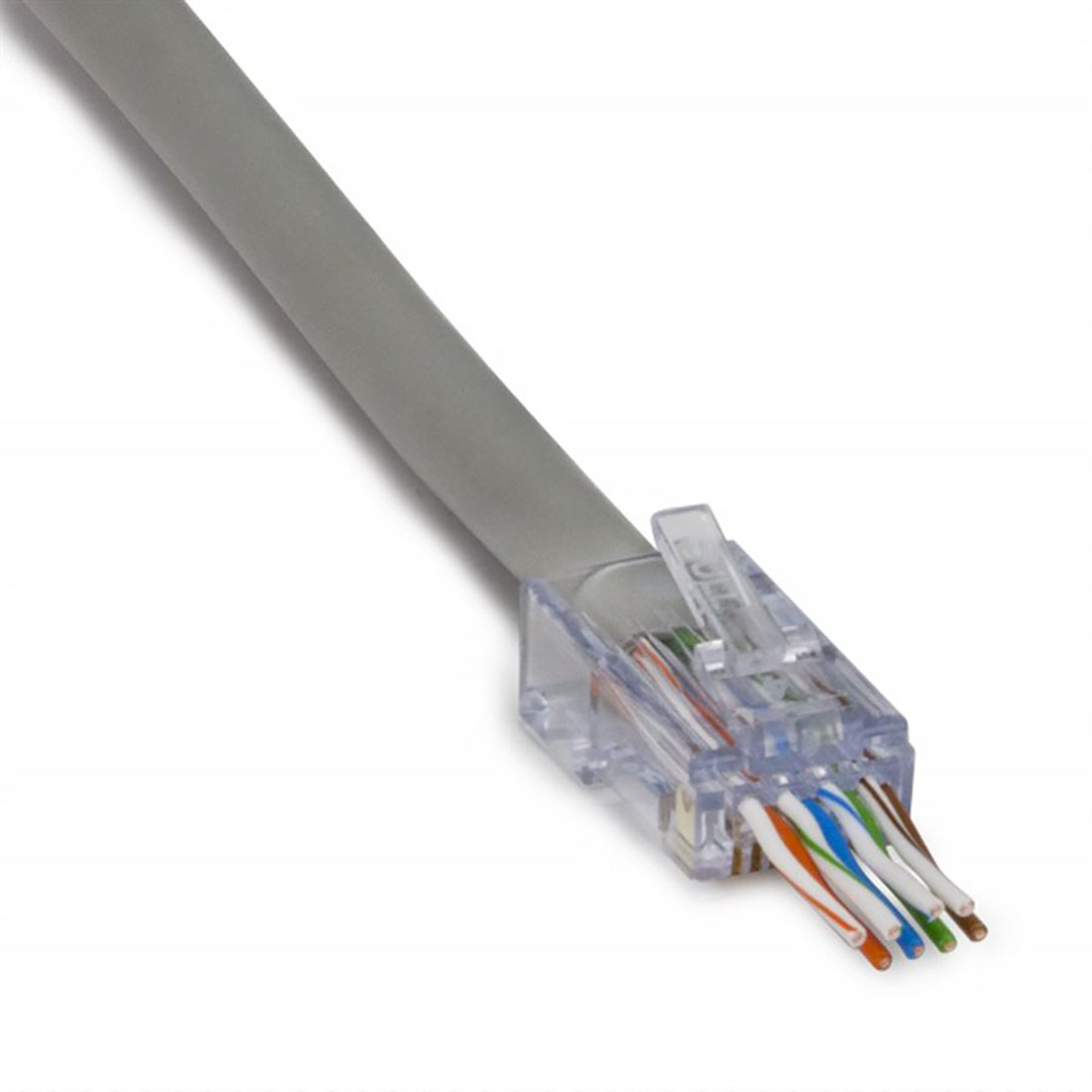

Platinum Tools ezEX48 Connectors (50 qty)

Platinum Tools ezEX48 Connectors (50 qty)
MSRP: $43.05
Manufacturer: Platinum Tools
SKU: 100029C
Features
  • Hi-Lo stagger isolates each conductor for higher performance
  • Simple one piece/pass through design, no bars or liners
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6A & Lg Cat6
  • Made in the USA
  • The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C)

Specs

Insulation Diameter (Conductor) Size range.043” – .048” (1.09 –1.22mm)
Max outer diameter.290” (7.36mm)
50 micron gold plated contacts
Solid or Stranded 23-22 AWG



Features
  • Hi-Lo stagger isolates each conductor for higher performance
  • Simple one piece/pass through design, no bars or liners
  • TIA, TAA, RoHS, UL & FCC compliant
  • Typically used with Cat6A & Lg Cat6
  • Made in the USA
  • The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C)
