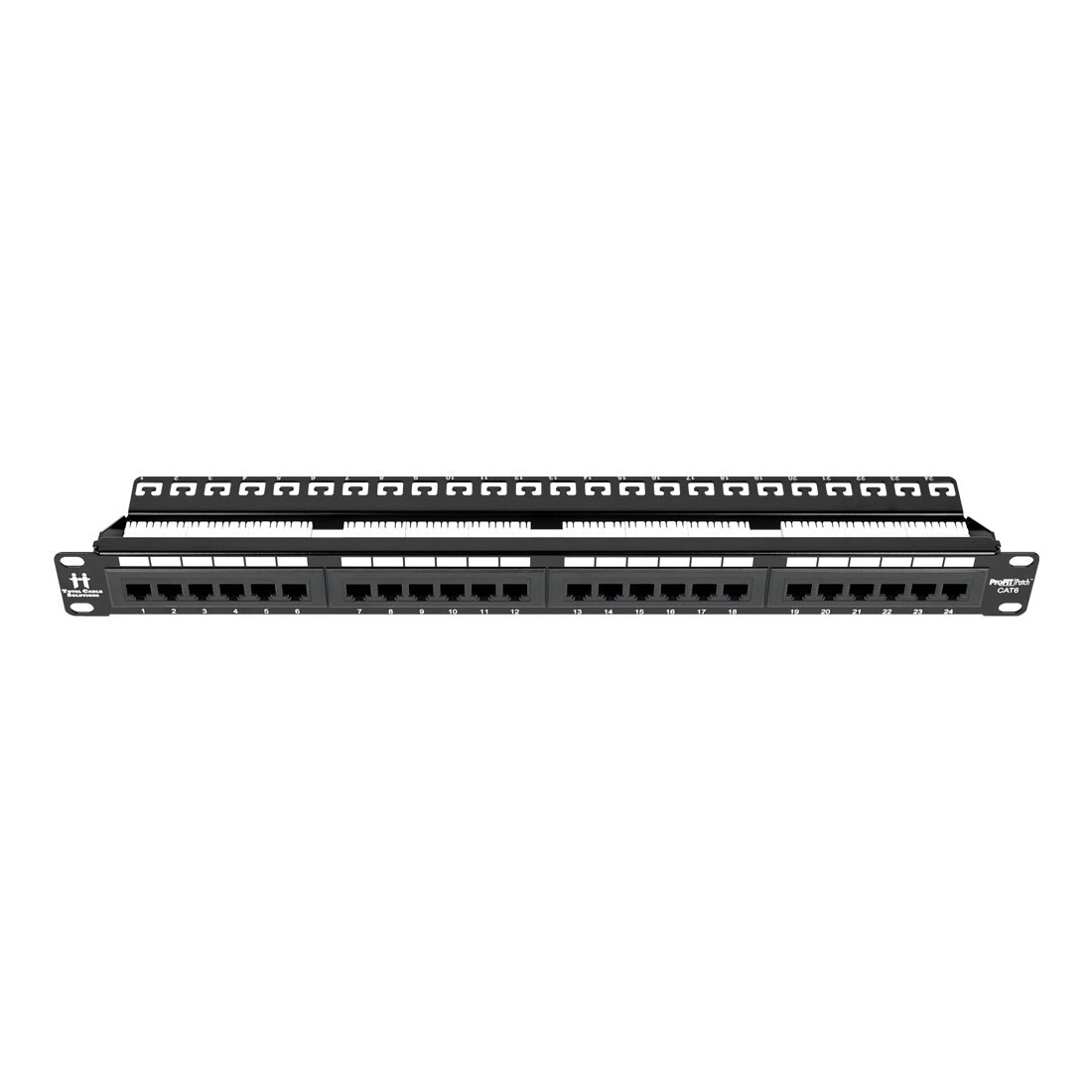

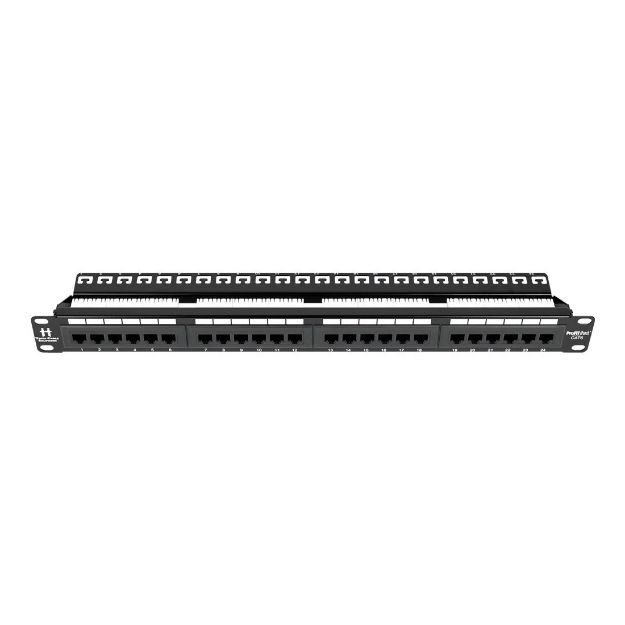

Platinum ProFIT CAT5E UTP 180° 1U 24 PORT RJ45 Patch Panel, 19" Rack Mount, Rear Cable Management

MSRP: $99.99
Manufacturer: Platinum Tools
SKU: PRO-CPP-24-CAT5E-19

Features

  • Built-in rear cable management designed for hyper-scale extreme density
  • Silk-screened labeling on front and back cable management for quick port identification
  • Designed for T568A and T568B wiring configurations

Specs

  • Panel: 1.5mm SPCC steel with black paint
  • Jack bracket set: 1.5mm SPCC steel with black paint
  • RJ45 Jack
    •  Housing: ABS, UL 94V-0
    •  Contact: phosphor bronze, nickel plated; 50µm gold plated contacts
    •  Contact bracket: PC, UL 94V-2, transparent color
  • IDC
    •  Housing: PC glass fiber, UL 94V-2
    •  Terminal: phosphor bronze, tin plated
    •  PCB: FR4, UL 94V-0
  • T568A & T568B wiring
  • Insertion force: 20N max (IEC 60603-7-4)
  • Retention strength: 7.7kg between jack and plug
  • Operating temperature: -10ºC to 60ºC
  • Life (mating cycles)
    • Jack: 750 cycles/min (ISO/IEC 11801, IEC 60603-7-4)
  • ICD: suitable for 22 – 26AWG stranded and solid wire, compatible with both 110 & Krone punch down tools
