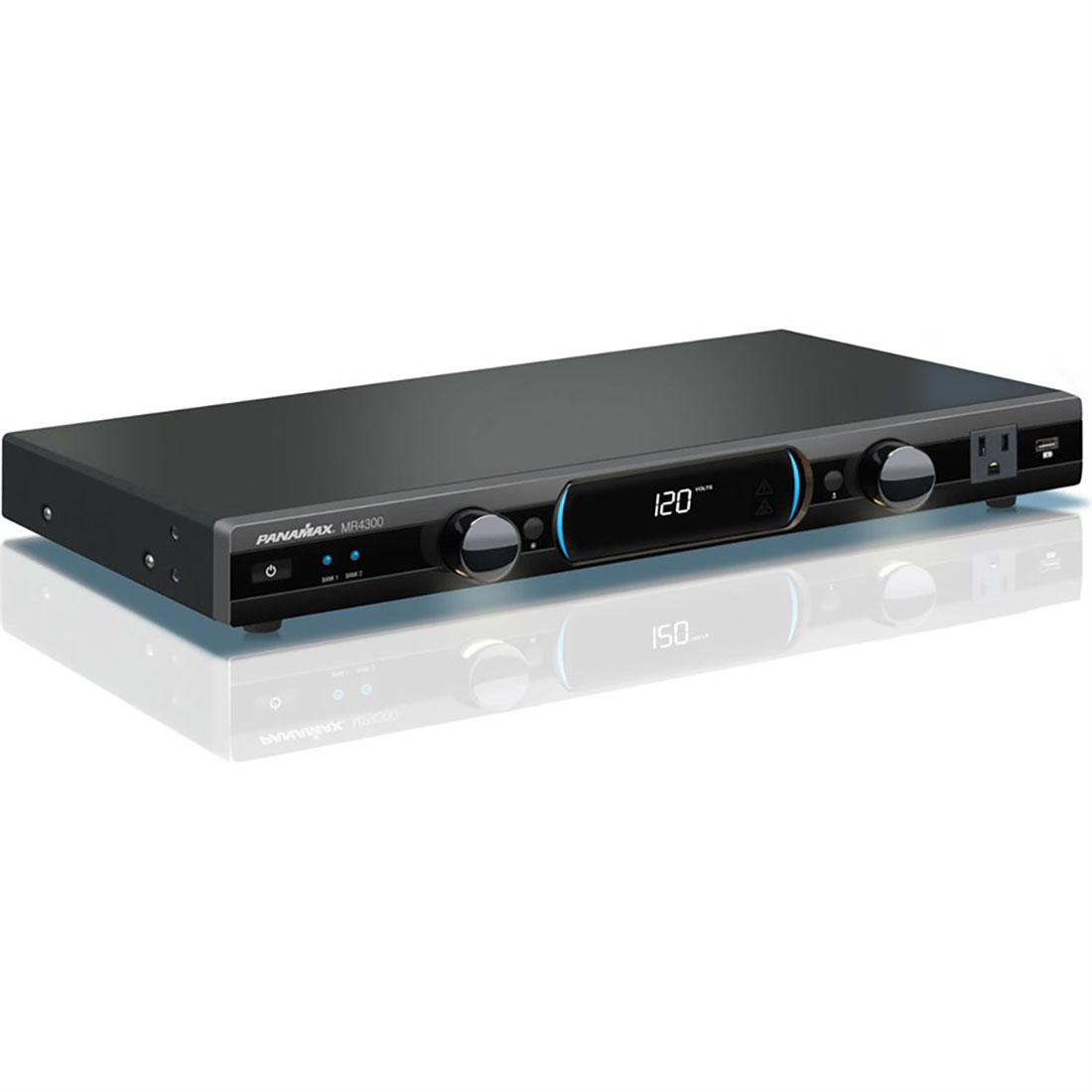

Panamax 9 Outlet Power Line Conditioner and Surge Protector

Name: Panamax 9 Outlet Power Line Conditioner and Surge Protector
SKU: MR4300
Availability: InStock

MSRP: $471.19

Manufacturer: Panamax

SKU: MR4300

Specifications

Specs

AC Protection
- Overvoltage Shutoff: 135V ± 2V
- Undervoltage Shutoff: 100V ± 2V
- Line Voltage: 120VAC, 50/60HZ
- Initial Clamping Level: 200V Peak, 141VRMS
- Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
- Protection Modes: L-N, L-G, N-G
- Maximum Current Rating: 15A (1800W)
- EMI/RFI Noise Filtration: Panamax Level 3 Noise Filtration
- Response Time: <1ns
- Single Pulse Energy Dissipation: 1575 Joules
LAN Protection
- Clamping Level: 62V ± 6V @ 1 mA
- Compatibility: 10/100/1000bT
- Wires Protected: 8-Wires
- Connectors: RJ-45
TEL Protection
- Clamping Level: 260V
- Wires Protected: 2 Wires, 1 Pair (4, 5)
- Connectors: RJ-11
Universal COAX Protection
- Clamping Level: 75V
- Frequency Range: OMHz - 2.2 GHz
- Insertion Loss: <0.5 dB
- Connections: Female “F”, Gold Plated

Dimensions

Size (L x W x H): 6” x 17” x 1.75”
Weight: 6.5 lb.
Shipping Size (L x W x H): 12” x 19.5” x 5”
Shipping Weight: 9 lb.
