Panamax 2 Outlet Direct Plug-In Surge Protector with Tel/Lan

Panamax 2 Outlet Direct Plug-In Surge Protector with Tel/Lan
MSRP: $64.95
Manufacturer: Panamax
SKU: MD2-TL
Features
  • EMI/RFI filtration circuitry for clean, unimpeded power
  • Protect-or-Disconnect™ circuitry

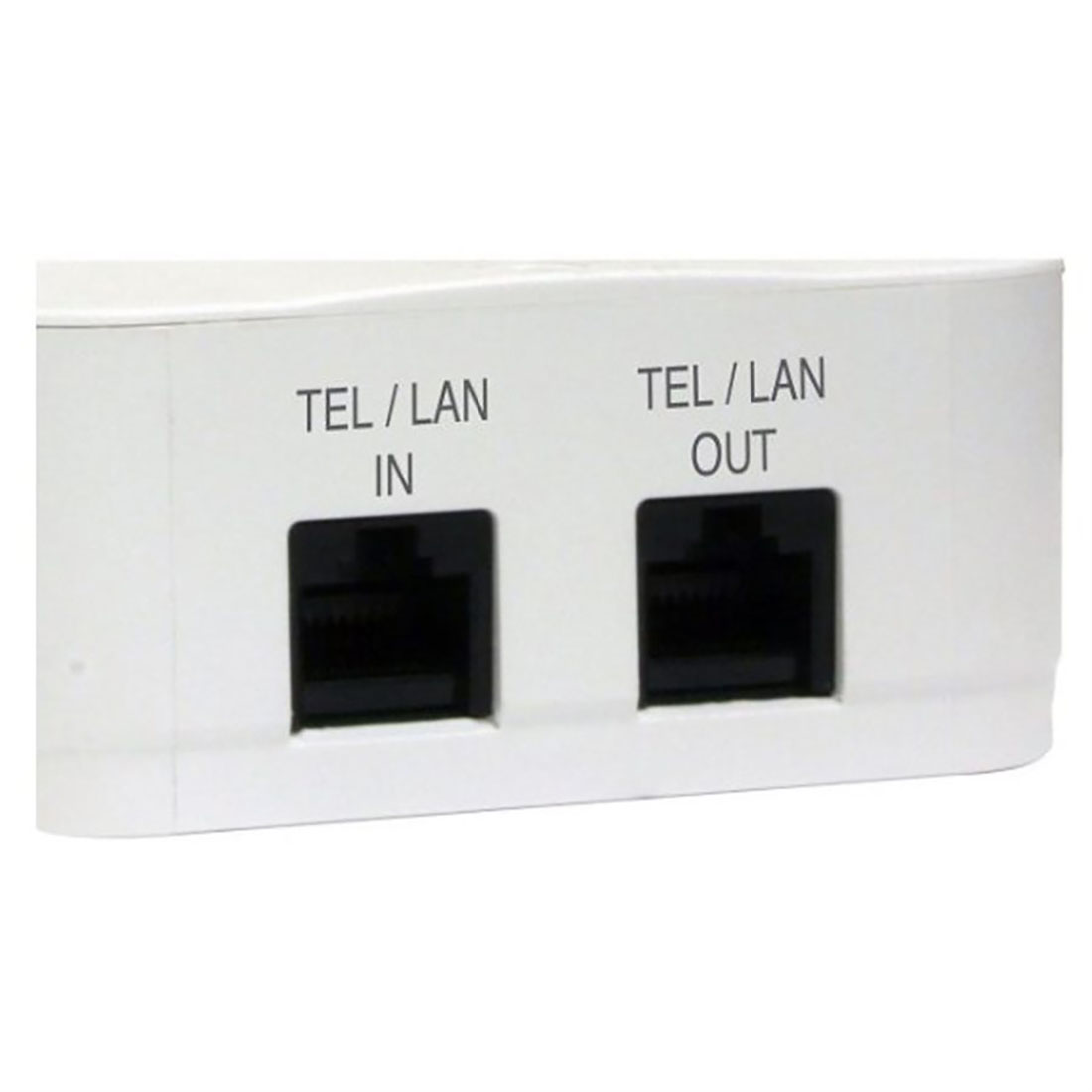

  • In/Out Telco/LAN connectors
  • Removable, paintable cover ensures seamless fit with any décor
  • Two diagnostic lights (LED) power on/protection OK and line fault
  • Thin Profile, only 1.5 inches deep
  • Convenient display feature; turn cover around to hide diagnostic lights

Specs

Voltage Protection Rating (UL 1449 3rd edition, 3,000A)L-N 400V, L-G 500V, N-G 500V
Thermal FusingYes
Single Pulse Energy Dissipation1350 Joules
Response Time<1 ns
Peak Impulse Current60,000 A
Nominal Discharge Current3,000 A



LAN Specs
Wires ProtectedPins 1, 2, 3, and 6
Suppression ModesDifferential and Common Ground
ConnectorsRJ-45 shared with Telco
Compatibility10/100 Base-T
Clamping Level7V



Telco Specs
Wires Protected2 wire, 1 pair (4,5)
Suppression ModesMetallic and Longitudinal
Fuseless/Auto-ResettingYes
ConnectorsRJ-45 Shared with LAN
Clamping Level260V
Capacitance30 pf (approx.)



Dimensions

Size (W x D x H)3.25” x 1.625” x 5.25”
Weight0.65 lbs.



Features
  • EMI/RFI filtration circuitry for clean, unimpeded power
  • Protect-or-Disconnect™ circuitry
  • In/Out Telco/LAN connectors
  • Removable, paintable cover ensures seamless fit with any décor
  • Two diagnostic lights (LED) power on/protection OK and line fault
  • Thin Profile, only 1.5 inches deep
  • Convenient display feature; turn cover around to hide diagnostic lights

}
