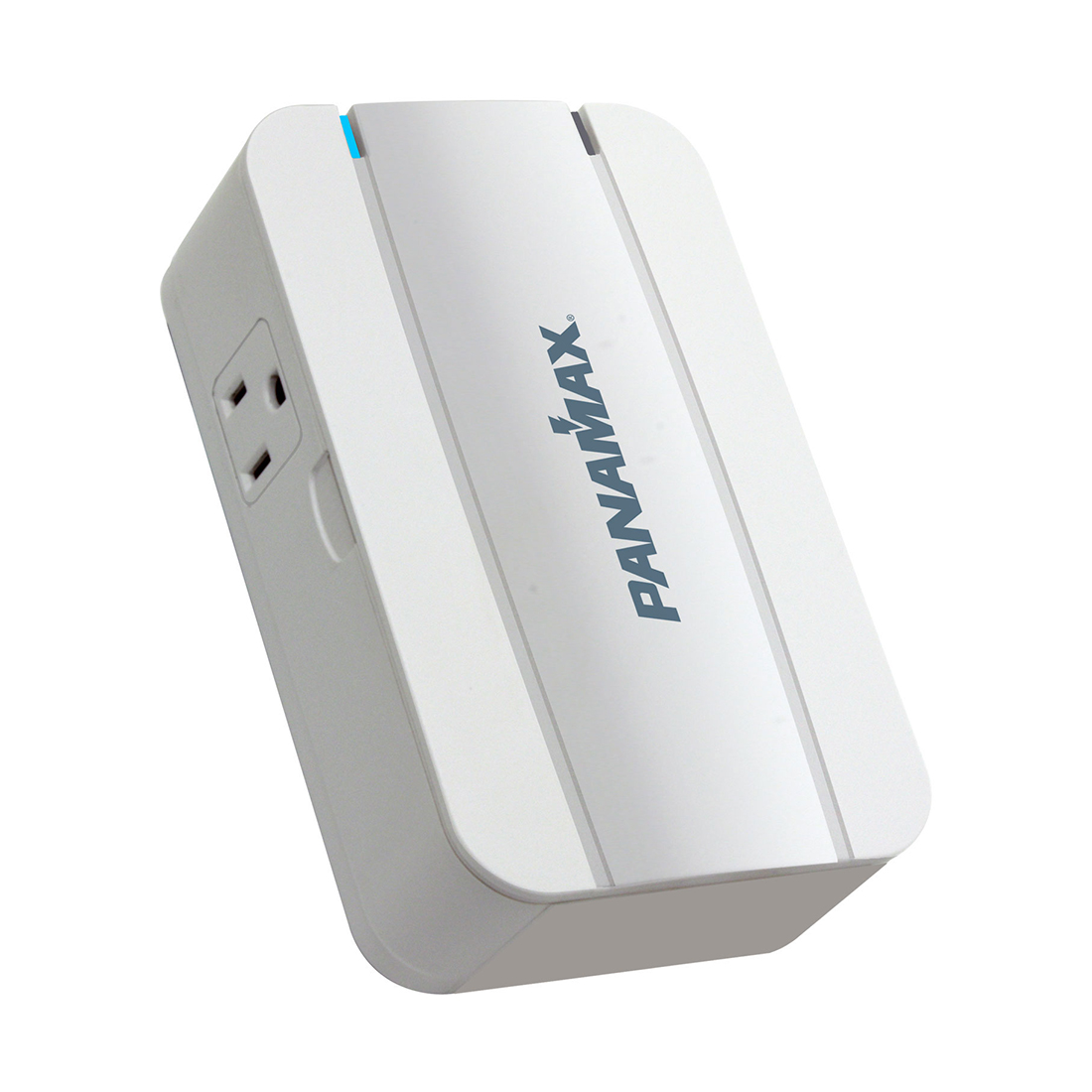

Panamax 2 Outlet Direct Plug-In Surge Protector

MSRP: $74.43
Manufacturer: Panamax
SKU: MD2

Features

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power
  • Protect-or-Disconnect™ Circuitry
  • Paintable cover ensures seamless fit with any décor
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault
  • Thin Profile – Only 1.5 inches deep
  • Convenient display feature; turn cover around to hide diagnostic lights

Specs

  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1350 Joules
  • Response Time: <1 ns
  • Peak Impulse Current: 60,000 A
  • Nominal Discharge Current: 3,000 A
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 2
  • Compliance: C-UL (UL standard #1449)
  • Maximum Current Rating: 15 (Amps)
  • Initial Clamping Level: 200V Peak
  • Filtration Technology: RFI/EMI Filtration
  • Filtration Rating: 50 dB @ 100 kHz – 1 MHz

Dimensions

  • 3.25″ x 1.625″ x 5.25″
  • 0.65 lbs

Features

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power
  • Protect-or-Disconnect™ Circuitry
  • Paintable cover ensures seamless fit with any décor
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault
  • Thin Profile – Only 1.5 inches deep
  • Convenient display feature; turn cover around to hide diagnostic lights
