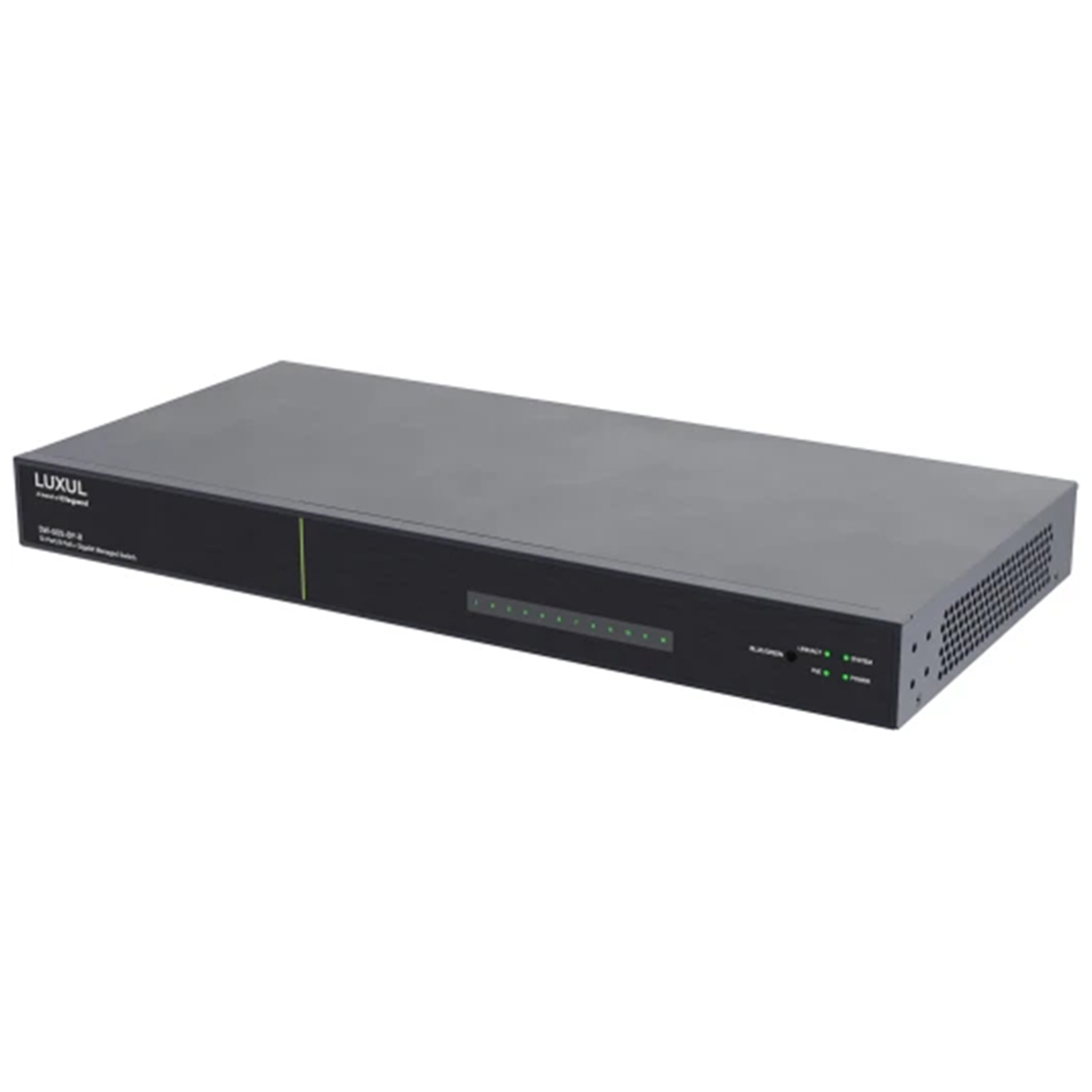

Luxul Managed Switch 8 POE+ 1GB 2RJ45

The SW-505-8P-R includes eight 1-Gigabit PoE+ Ethernet ports, two non-PoE Ethernet Ports, and two 1-Gigabit SFP expansion ports. Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 8 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port.
MSRP: $657.00
Manufacturer: Luxul
SKU: SW-505-8P-R

Features

  • Refreshed, simplified user interface
  • Layer 2/Layer 3 capabilities (static routing included)
  • Multicast/IGMP snooping and querying feature
  • Per port unregistered flooding
  • 802.1Q VLAN and QoS support including DCSP
  • Dante and AES67 compatibility
  • AV-over-IP compatible
  • PoE Self-Healing with auto-recovery and power scheduling
  • 8 PoE+ powered capable ports
  • 130 Watt total PoE budget
  • Rear-facing ports
  • Low noise, variable speed fans
  • 2 RJ45/SFP Combo Ports
  • Dynamic PoE allocation
  • Rack Mountable
  • AV templates for easier, faster deployment and network control available with firmware update 1.00.429
  • Three Year Limited Warranty

What's in the Box

  • 8 PoE+ | 2 RJ45 | 2 SFP Ports - Gigabit L2/L3 Managed Switch - Gigabit L2/L3 Managed Switch
  • Power Cord
  • Rack Ears and Set of Four (4) Rubber Feet
  • Quick Install Guide & Regulatory Documentation

Specs

PoE Power Budget 130 W
Switching Capacity 24 GBPS
Connection Type Wired
Jumbo Frame Support 9216 B
Layer Support L2
L3
Multicast IGMP v1/2/3
Per Port Unregistered Flooding
Quierer
Snooping
Number of Fiber SFP Ports 2
Number of Ports 8
PoE Self Healing Per Port Basis
Port Location Rear
Power Cord US Cord
Spanning Tree MSTP
RSTP
STP
SPF Port Type 2 x 1 Gigabit
Switch Type Managed
PoE+
TAA Compliant Yes
UPC 655003923360
VLAN Compliance 802.1Q max 4094 VIDs & VLAN trunking
VLAN ID 4094
Wired Data Rate 1 Gbps
Certifications CB Report
CE
CE-EMC
CE-LVD
cUL
FCC
IC
NDAA 889
RCM
RoHS
TAA
UKCA
UL
VCCI
Operating Temperature 32° to 104°F (0° to 40°C)



Dimensions

HxWxL 1.75" x 14.75" x 17.4"
Weight 5.5 lbs
