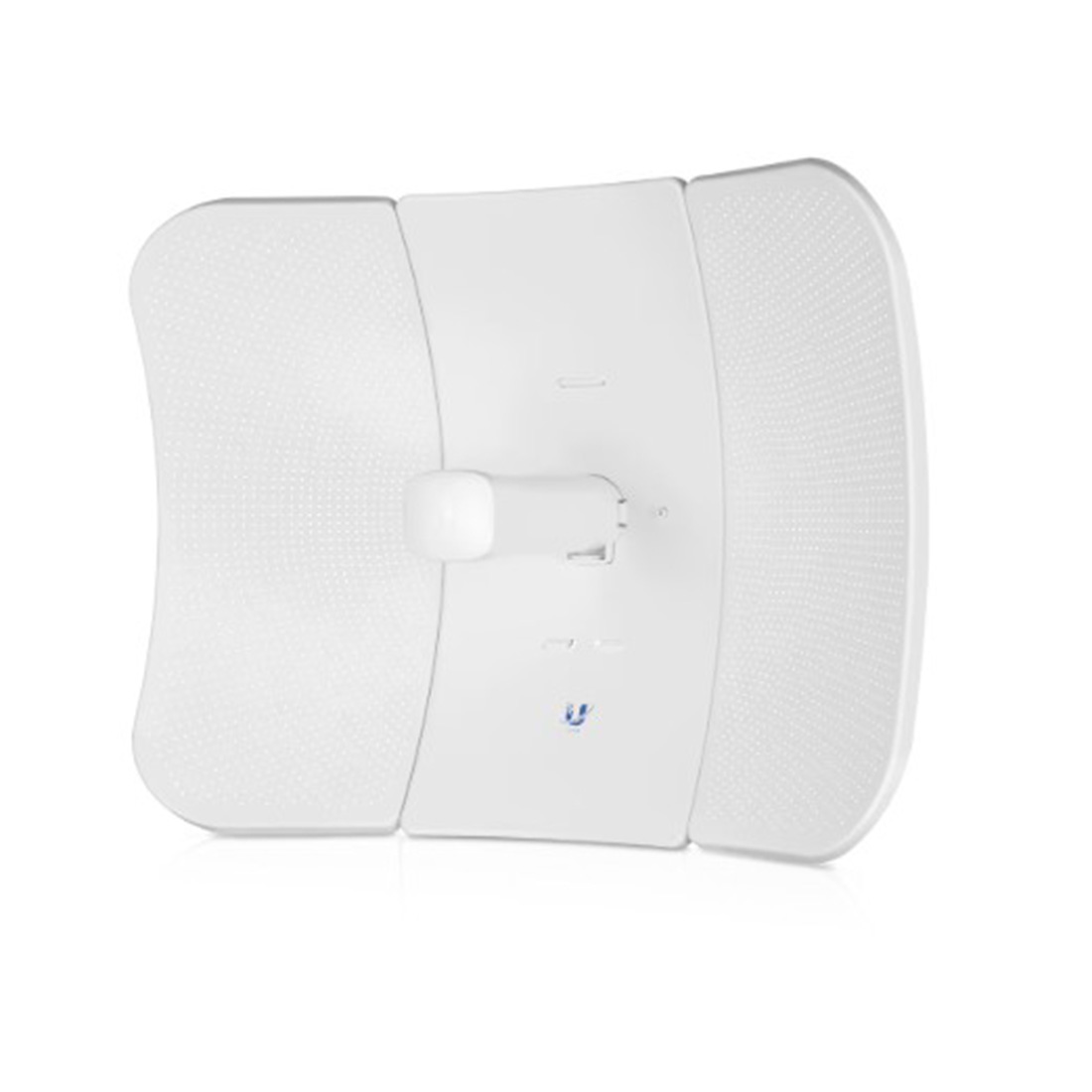

LTU-LR-US 5GHz Long-Range LTU Client Radio

LTU-LR-US 5GHz Long-Range LTU Client Radio
MSRP: $129.00
Manufacturer: Ubiquiti
SKU: LTU-LR-US

Specs

  • Maximum throughput: 900+ Mbps (FW version 2.3.0 and later)
  • Encryption: WPA2-PSK (AES)
  • Uplink/downlink ratio: 25/75, 33/67, 50/50
  • Enclosure material: UV-stabilized polycarbonate
  • Mounting: Pole mount (Kit included)
  • Wind loading: 550 N at 200 km/h (123.6 lbf at 125 mph)
  • Wind survivability: 200 km/h (125 mph)
  • Weatherproofing: IPX6
  • Networking interface: (1) GbE RJ45 port
  • Power method: Passive PoE 2-pair (4, 5+; 7, 8-)
  • Power supply: 24V, 0.5A gigabit PoE adapter (Included)
  • Supported voltage range: 22—27V DC
  • Max. power consumption: 8.5W
  • ESD/EMP protection: Air/contact: ± 24kV
  • Operating frequency: US/CA: U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz | Worldwide - 4800 - 6200 MHz
  • Management Radio Worldwide: 2400 - 2483.5 MHz
  • Max. conducted TX power: 22 dBm (per chain)
  • Channel bandwidth: 10/20/30/40/50/60/80/100 MHz (FW version 2.3.0 and later)
  • Antenna gain: 26 dBi
  • Ambient operating temperature: -40 to 60° C (-40 to 140° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC
  • NDAA Compliant

Dimensions

  • 20.2" x 15.2" x 10.2"
  • 3 lbs
  • With mount: 3.8 lbs
