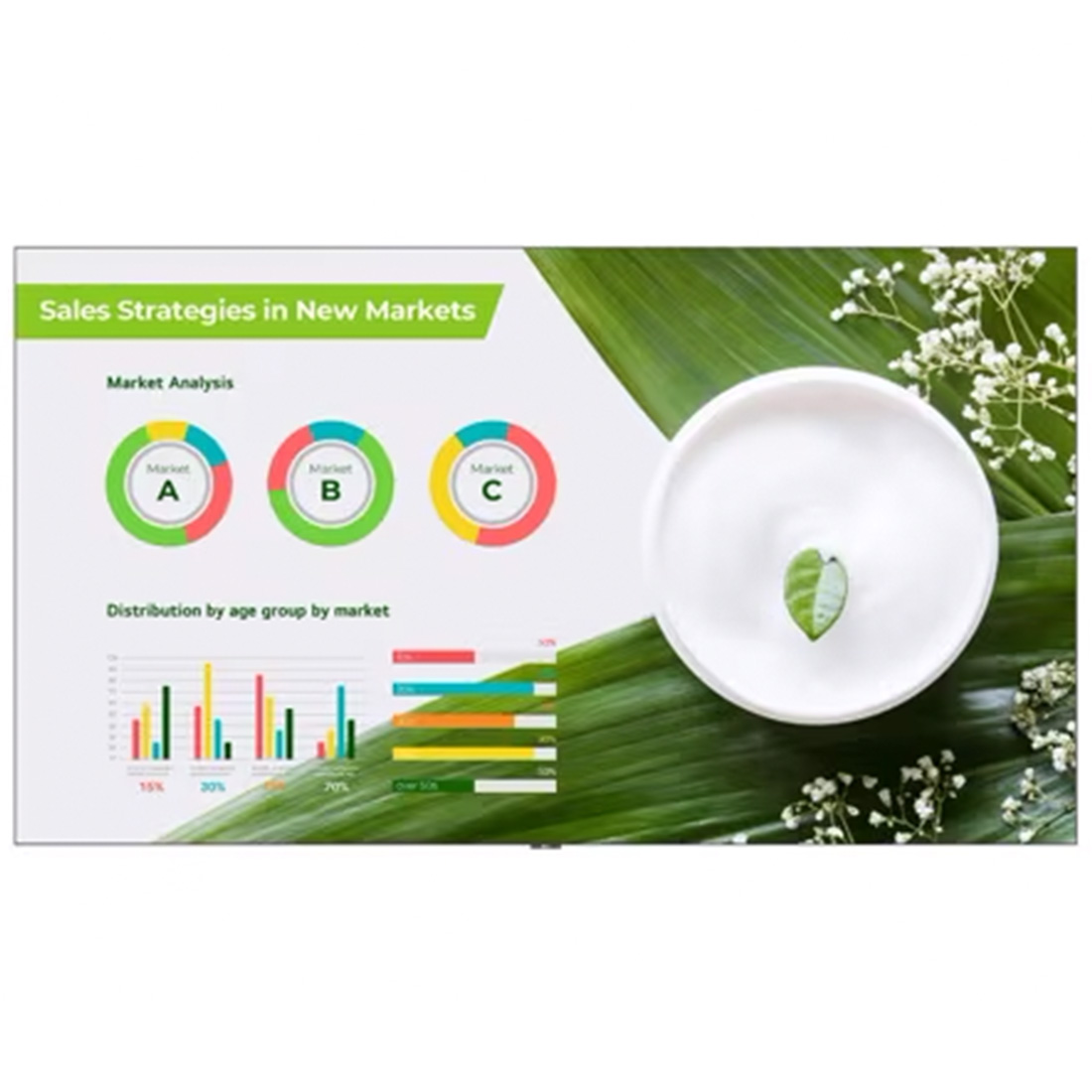

LG All-in-one 163" Video Wall System

LG All-in-one 163" Video Wall System
MSRP: $66667.00
Manufacturer: LG
SKU: LAPA163-GF

Specs

  • LED Type: Single SMD
  • Pixel Configuration: Single SMD
  • Pixel Pitch: 1.88 mm
  • Screen Size (Inches): 163"
  • Screen Resolution (W x H): 1,920 x 1,080 (FHD)
  • Module Resolution (W x H): 160 x 90
  • No. of Modules per Screen (W x H): 12 × 12 (Total 144)
  • Physical Pixel Density: 284,444 pixels/m²
  • Flatness of Cabinet: ±0.15 mm
  • Cabinet Material: Aluminum
  • Service Access: Front
  • Power Consumption (Max.): 2000W
  • Heat Dissipation (Max.): 6,825 BTU
  • Power Supply: 100-240V
  • Refresh Rate: 3,840 Hz
  • Frame Rate: 50 / 60 Hz
  • Heat Dissipation (Avg.): 2,560 BTU
  • Power Consumption (Avg.): 750W
  • Max. Brightness (After Calibration): Up to 500 nits
  • Color Temperature: 3,200-9,300K
  • Viewing Angle (H x V): 150° x 150°
  • Brightness Uniformity: 98%
  • Color Uniformity: ±0.015 Cx, Cy
  • Contrast Ratio: 3000:1
  • Processing Depth: 16 bit
  • Lifetime: Up to 100,000 hrs

Dimensions

  • Screen Dimensions (W x H x D): 141.9" x 79.9" x 1.2"
  • Module Dimensions (W x H): 11.8" x 6.6"
  • Screen Surface Area: 78.5 ft²
  • Weight: 341.7 lbs
