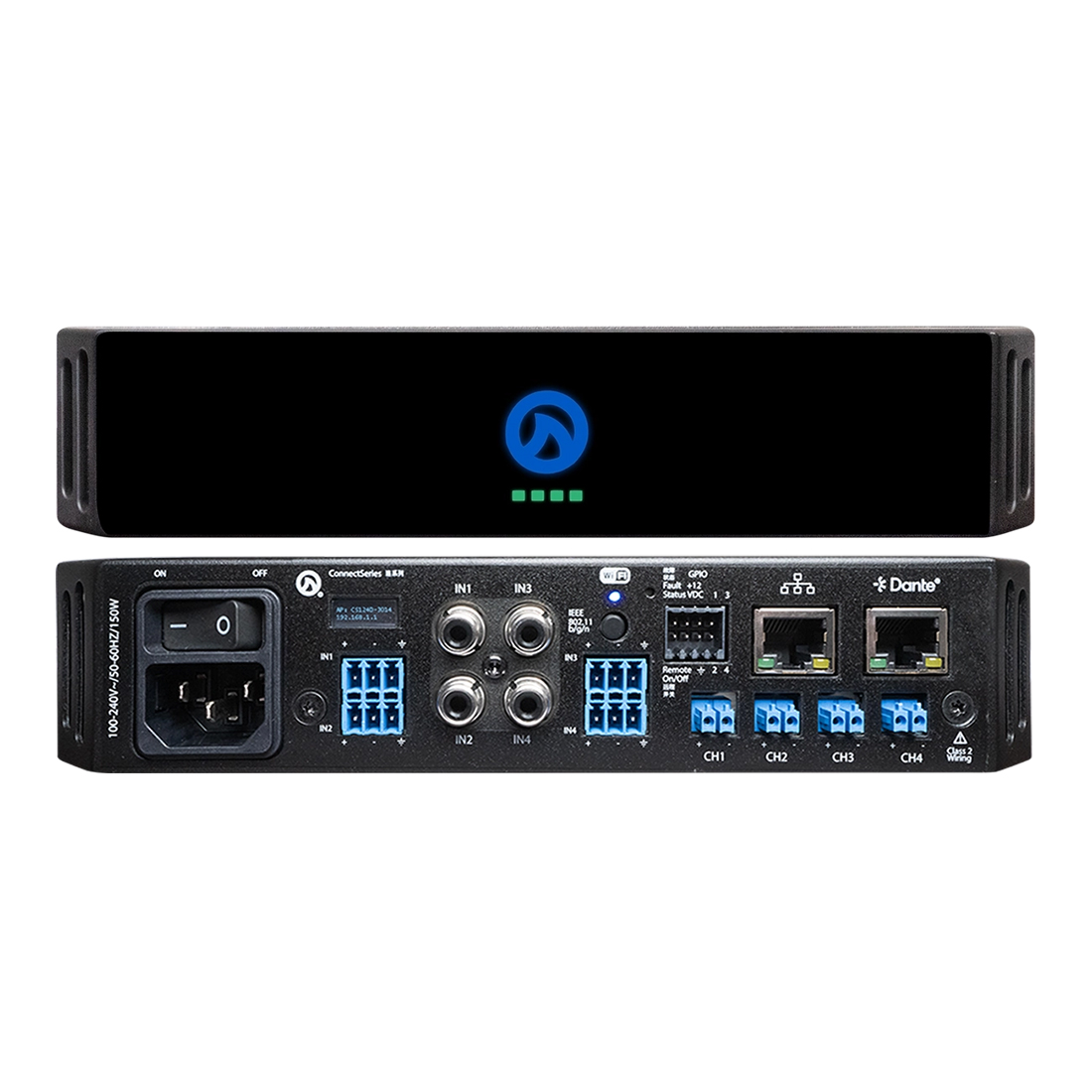

LEA Connect Series 124D Smart Amp 4CH 120W with Dante

The Connect Series 124D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor.
MSRP: $2599.99
Manufacturer: TruAudio
SKU: CS124D

Features

  • No software to download; browser-based and works on any device​
  • Remote control and monitoring from anywhere in the world — no additional costs required​
  • A vast selection of third-party API’s for ultimate system integration​
  • Sharkware simplifies control across large audio installs and includes offline mode
  • Processing that allows for enhanced audio quality and more precise sound
  • Dante® simplifies system installations with scalable, high-resolution audio over IP (AoIP)
  • A vast range of tunings makes the install quicker and protects speakers from damage
  • Real-time load monitoring ensures the amplifier operates safely with preventative maintenance
  • Event fault monitoring contributes to enhanced system performance and long-term reliability
  • Eliminates the need for separate amplifiers for different speaker impedances
  • Smart power bridge doubles power on one channel without sacrificing a channel, maximizing performance and flexibility
  • High efficiancy power design ensures that the amplifiers operate efficiently, reducing energy waste and cooling costs

Specs

Model CONNECT 124D
Channels 4
2Ω 60W
4Ω 120W
8Ω 120W
25V 120W
70V / 100V 120W
Inputs Analog: 4 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity
4 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity
***Note – Unbalanced and RCA inputs share the same analog input channel

Dante: 4 x 4 Dante at 48kHz, Multicast or Unicast
AES 67: Configurable via the Dante Controller software
THD+N 0.1% (20Hz to 20kHz)
Frequency Response 20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω
Signal to Noise Level 102dB (20Hz to 20kHz referenced to 8Ω)
Crosstalk 70dB (20Hz to 20kHz)
Amplifier Output Classification Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel
DSP Architecture Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters
Input Matrix & Matrix Mixer Routable matrix; any input can be mixed to any output
Crossovers Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth)
Parametric EQ 8 Band Parametric EQ per channel
Output Delay 100ms per channel
Output Protection DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection
User Adjustable Limiting Peak Voltage and RMS Voltage
Load Monitoring Realtime Load Monitoring and Pilot Tone Detection from Internal or External Sources
UI Web Browser User Interface, 3rd Party API control, Cloud Control, or SharkWare
AC Mains 100VAC – 240VAC +/- 15% 50Hz or 60Hz



Dimensions

L x W x H 11.82” x 8.58” x 1.71″
Weight 7 lbs
