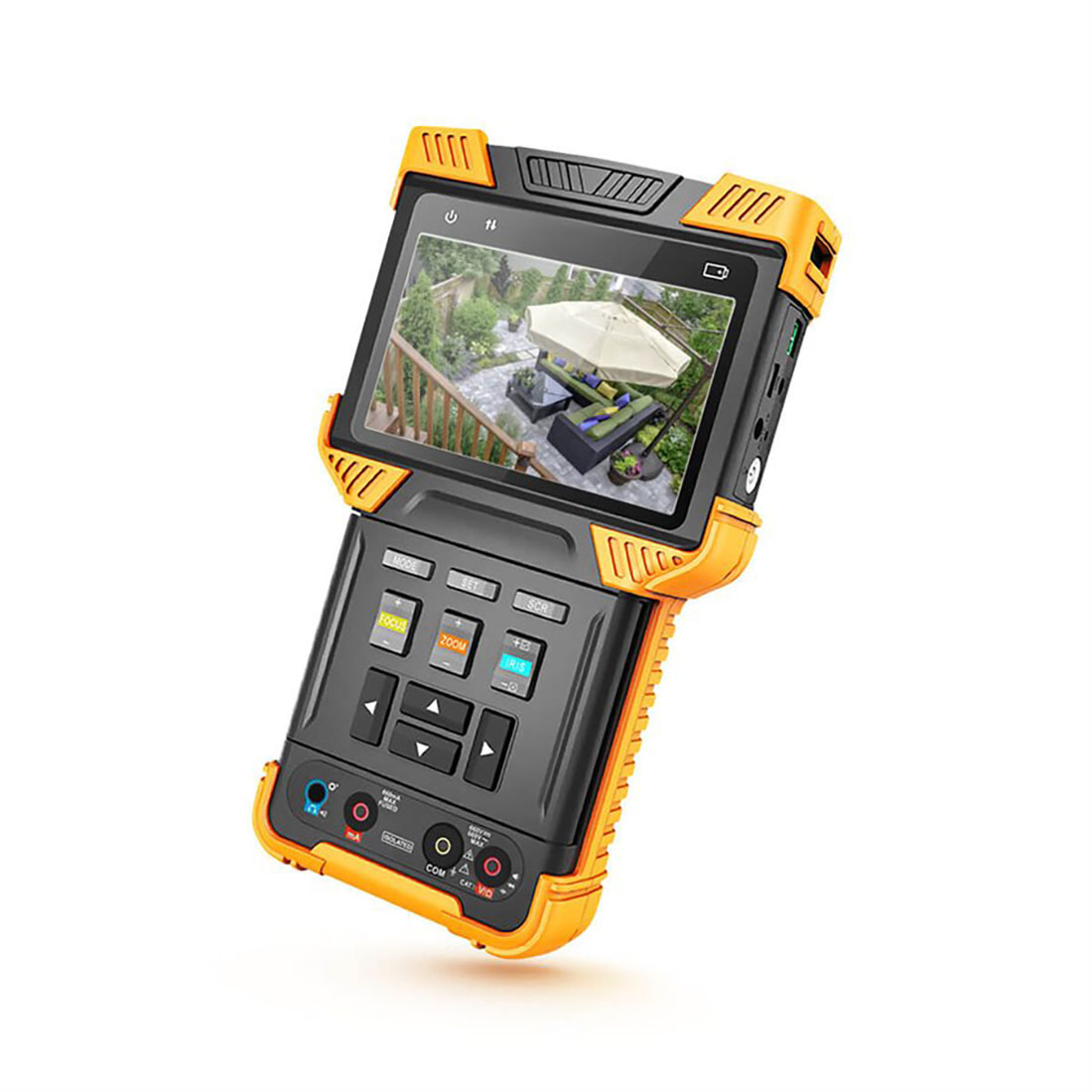

IC Realtime Cctv Onvif And Hd-Avs Multi Function Test Tool

IC Realtime Cctv Onvif And Hd-Avs Multi Function Test Tool
MSRP: $1554.00
Manufacturer: IC Realtime
SKU: ITM-9000-V3
Features
  • 4.0" TFT screen, 800 × 480 resolution
  • H.264/H.265 decoding support for IPC
  • HD AVS/AHD/TVI/CVBS video support
  • 12V/2A DC power supply for the camera
  • Supports RS–485 control and audio test
  • Ethernet cable length and attenuation tests
  • Built-in digital multimeter
What’s in the box
  • IC Realtime Cctv Onvif And Hd-Avs Multi Function Test Tool

 Spec Sheet Download

Specs

Operating SystemLinux
Screen4.0" TFT screen, 800 × 480 resolution
Interface Power1 standard PoE charging, IEEE802.3af 1 power output , 12V/2A DC
Audio:  1 audio input; 1 audio output
USB1 USB Mini-B
Ethernet2 RJ45 10M/100M/1G RS–4851 Digital
Multimeter Port3



Dimensions

Size7.8" × 4.53"× 1.48"



Features
  • 4.0" TFT screen, 800 × 480 resolution
  • H.264/H.265 decoding support for IPC
  • HD AVS/AHD/TVI/CVBS video support
  • 12V/2A DC power supply for the camera
  • Supports RS–485 control and audio test
  • Ethernet cable length and attenuation tests
  • Built-in digital multimeter
What’s in the box
  • IC Realtime Cctv Onvif And Hd-Avs Multi Function Test Tool

 Spec Sheet Download
