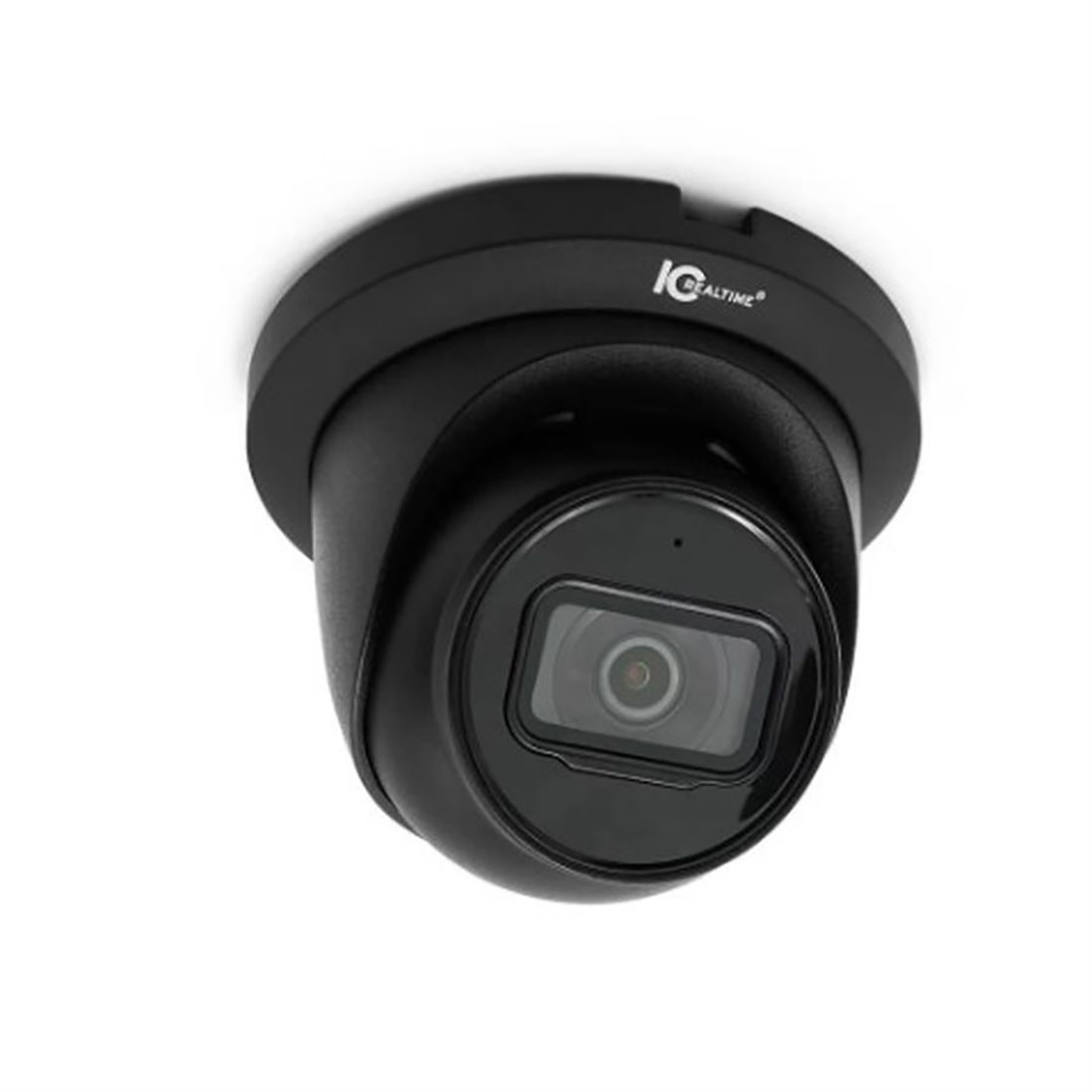

IC Realtime 8MP IP INDOOR/OUTDOOR MID SIZE EYEBALL BLACK DOM

IC Realtime 8MP IP INDOOR/OUTDOOR MID SIZE EYEBALL BLACK DOM
MSRP: $596.00
Manufacturer: IC Realtime
SKU: IPEL-E80F-IRB3
Features
  • 8MP, ½.8” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 triple-stream encoding
  • Outputs max. 8MP (3840 x 2160) at 25/30 fps
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR (120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Starlight support, Max. IR LEDs length 98ft
  • 256GB Micro SD memory, built-in mic, IP67, PoE

Specs

Image Sensor½.8” megapixel progressive CMOS
Effective Pixels3840 (H) x 2160 (V)
RAM/ROM1GB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s-1/100000 s
Minimum Illumination0.007 lux@F1.4 (color, 30 IRE) / 0.0007 lux@F1.4 (B/W, 30 IRE) / 0 lux (illuminator on)
S/N Ratio>56 dB
IR Distance98.4 ft
IR On/Off ControlAuto / Manual
IR LEDs1
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm
Max. ApertureF1.4
Angle of View Horizontal107º
Angle of View Vertical56º
Iris TypeFixed aperture
Close Focus Distance4.9 ft
Pan Range0º-360º
Tilt Range0º-78º
Rotation Range0º-360º
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+ / Smart H.264+
AI CodingAI H.265 / AI H.264
Streaming Capability3 streams
Bit Rate ControlCBR / VBR
BLC ModeBLC / HLC / WDR (120dB)
White BalanceAuto / Natural / Street Lamp / Outdoor / Manual
Gain ControlAuto / Manual
Noise Reduction3D DNR
Motion DetectionOff / On (4 zone, rectangle)
Region of InterestOff / On (4 zone)
Smart IRSupport
Digital Zoom16x
Audio CompressionG.711a / G.711Mu / PCM / G.726 / G.723
EthernetRJ-45 (10/100Base-T)
Streaming MethodUnicast / Multicast
Max. User Access20 (total bandwidth64 M)
CertificationsFCC Part 15, Subpart B
Power SupplyDC12V, PoE (802.3af)
CasingMetal
ColorBlack



Dimensions

Size4.17” x 3.69”
Gross Weight1.7 lbs.



Features
  • 8MP, ½.8” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 triple-stream encoding
  • Outputs max. 8MP (3840 x 2160) at 25/30 fps
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR (120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Starlight support, Max. IR LEDs length 98ft
  • 256GB Micro SD memory, built-in mic, IP67, PoE

}
