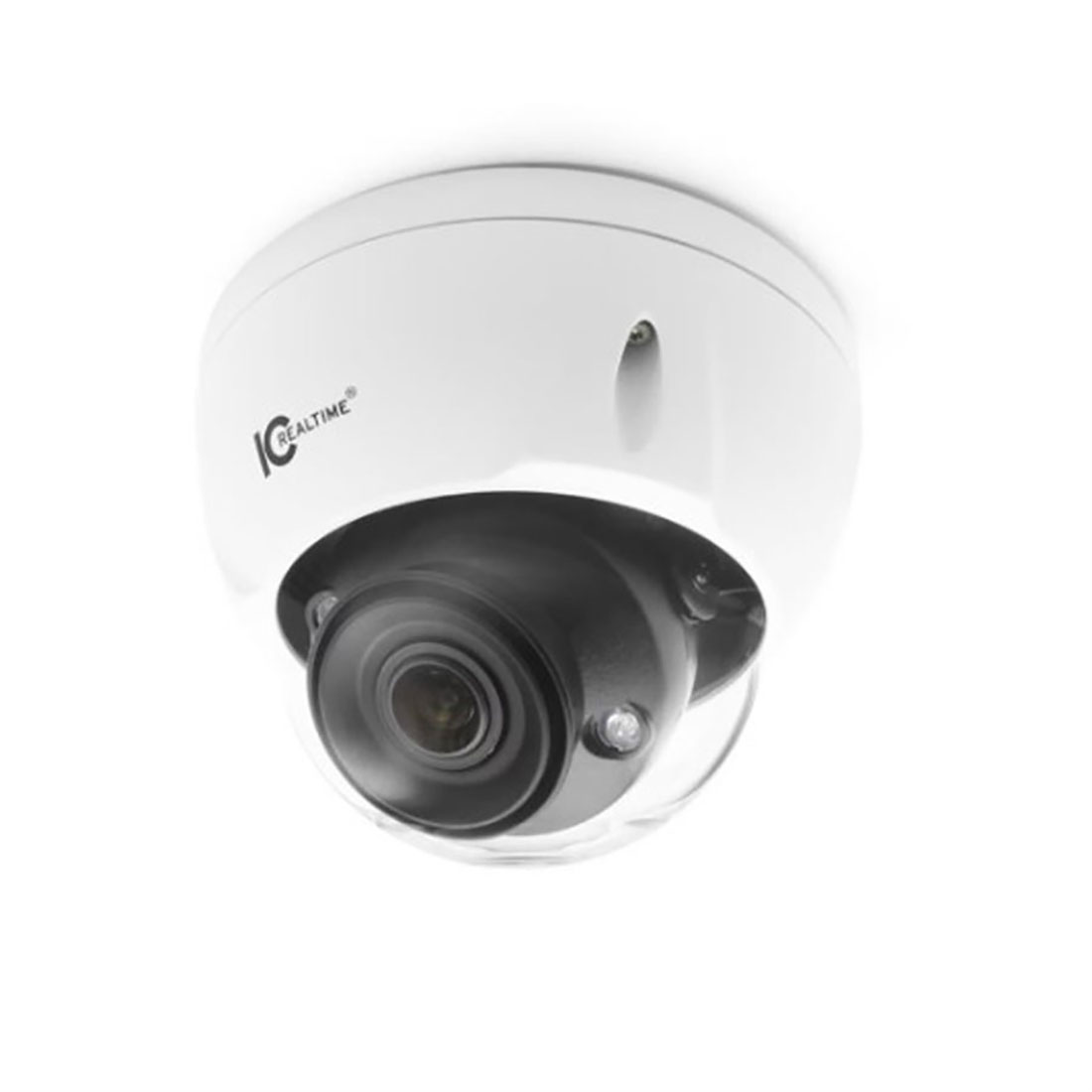

IC Realtime 8MP Indoor/Outdoor Full Size Vandal Dome

IC Realtime 8MP Indoor/Outdoor Full Size Vandal Dome
MSRP: $1120.00
Manufacturer: IC Realtime
SKU: IPFX-D80V-IRW3
Features
  • 8MP 1/1.8” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 quad-steam encoding
  • Outputs max. 8MP (3840 x 2160) @ 25/30 fps
  • Intelligent Motion Detect, Perimeter Protection, Face Detect, People Counting
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Starlight Support, Max. IR LEDs Length 131ft.
  • 512GB Micro SD memory, IP67, IK10, ePoE

Specs

Image Sensor1/1.8” CMOS
Effective Pixels3840 (H) x 2160 (V)
RAM/ROM2GB/4GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s-1/100000 s
S/N Ratio>56 dB
IR Distance131ft
IR On/Off ControlAuto; Zoomprio; Manual
IR LEDs4
Lens TypeMotorized vari-focal
Focal Length2.7mm-12mm
Max. ApertureF1.5
Iris TypeFixed
Close Focus Distance2.6 ft
Streaming Capability4 streams
Bit Rate ControlCBR/VBR
Gain ControlAuto / Manual
Noise Reduction3D DNR
Motion DetectionOff/On (4 zone, rectangle)
Digital Zoom16x
CompressionG.711a; G.711Mu; PCM; G.726; G.723
EthernetRJ-45 (10/100Base-T)
Streaming MethodUnicast / Multicast
Max. User Access20 (Total bandwidth80 M)
Web ViewerIE, Chrome, Firefox, Safari
Power Supply12 VDC/PoE (802.3af)
ePoESupported



Dimensions

Size273.2mm x 95mm x 95mm
Net Weight2.01 lbs.



Features
  • 8MP 1/1.8” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 quad-steam encoding
  • Outputs max. 8MP (3840 x 2160) @ 25/30 fps
  • Intelligent Motion Detect, Perimeter Protection, Face Detect, People Counting
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Starlight Support, Max. IR LEDs Length 131ft.
  • 512GB Micro SD memory, IP67, IK10, ePoE

}
