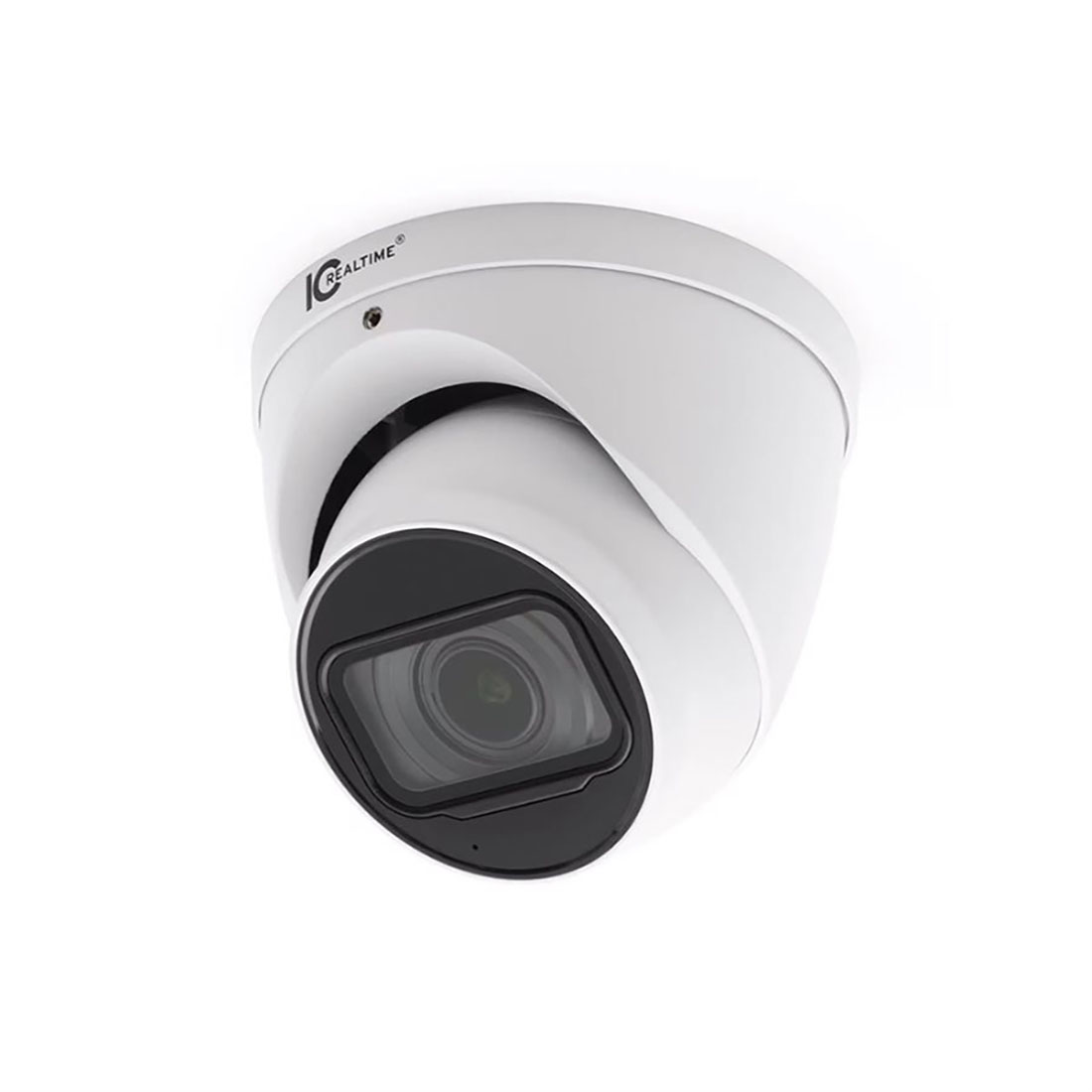

IC Realtime 8MP HDAVS Indoor/outdoor Mid Size Eyeball Dome C

IC Realtime 8MP HDAVS Indoor/outdoor Mid Size Eyeball Dome C
MSRP: $320.00
Manufacturer: IC Realtime
SKU: HDEG-E80V-IRM1

Specs

  • Image Sensor: 8 Megapixel CMOS
  • Effective Pixels: 3840 (H) × 2160 (V) 8MP/4K
  • Scanning System: Progressive
  • Minimum Illumination: 0.01 lux@F1.5 (Color, 30 IRE), 0.001 lux@F1.5 (B/W, 30 IRE), 0 lux (Illuminator on)
  • Illumination Distance: 196 ft (60 m)
  • 2x IR LED
  • Motorized Vari-focal Lens
  • Mount Type: φ14
  • Max. Aperture: F1.5
  • Angle of View: Horizontal: 114°–32°, Vertical: 58°–17
  • Resolution: 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)
  • Frame Rate:
    • AVS:
      • NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30
      • PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
    • AHD:
      • NTSC: 4K@15 fps
      • PAL: 4K@15 fps
    • TVI:
      • NTSC: 4K@15 fps
      • PAL: 4K@15 fps
    • CVBS:
      • NTSC: 960H
      • PAL: 960H
  • Power Supply: DC 12V ±30% (It is recommended to use a single power adapter to supply the power for one camera)
  • Power Consumption: Max 7.9W (12 VDC, IR on)

Dimensions

  • Φ4.80" × 4.13"
  • 1.63 lbs
