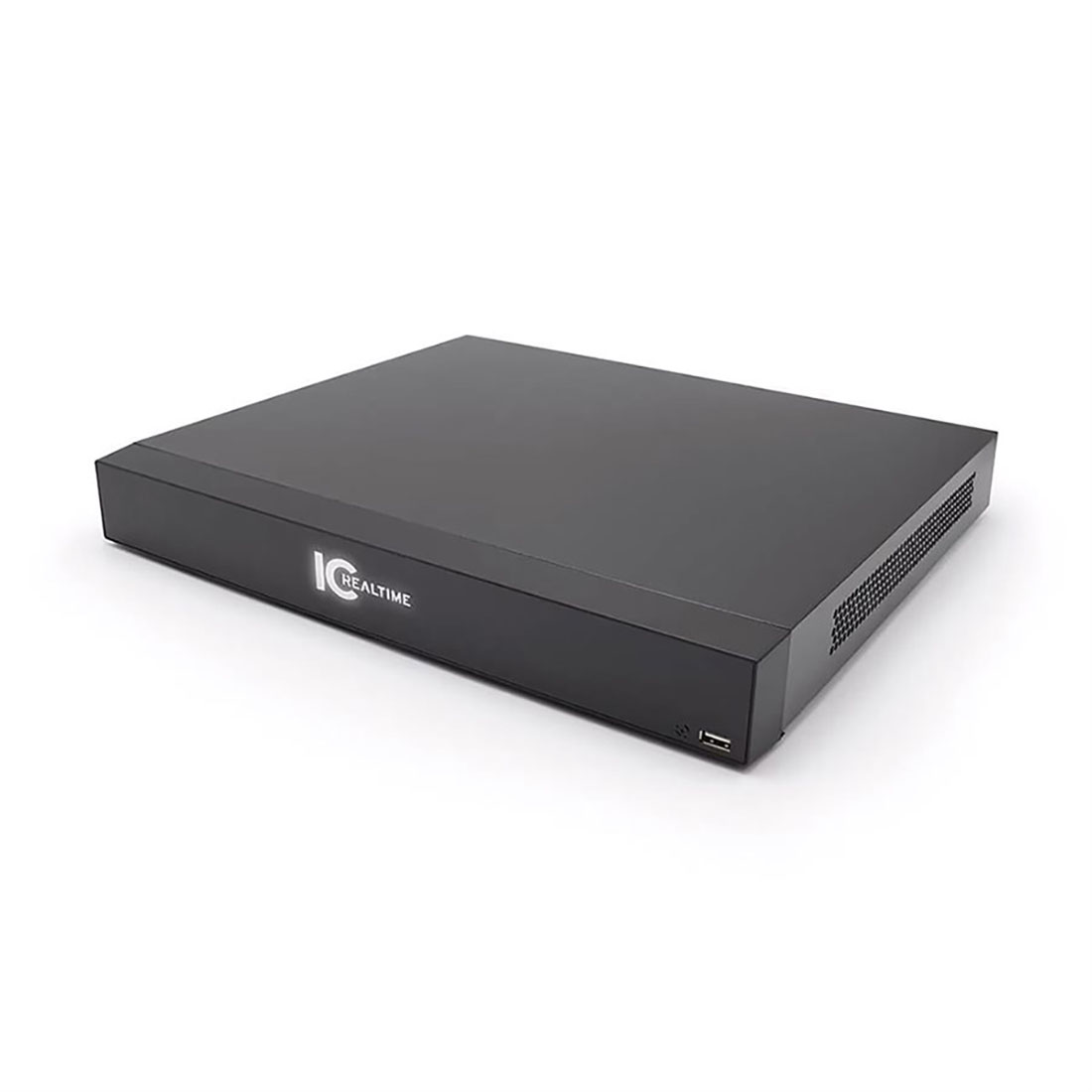

IC Realtime 8Ch Coax + 8 IP 1U Shelfmount Multi Signal AVR 2

IC Realtime 8Ch Coax + 8 IP 1U Shelfmount Multi Signal AVR 2
MSRP: $1274.00
Manufacturer: IC Realtime
SKU: HDVRMX08081U4KAI32TB

Features

  • 8Ch Coax + 8 IP
  • 2TB
  • 8MP (Coax & IP) Support
  • 128Mbps Bandwidth
  • 2 HDDs
  • Supports IP, AVS, AHD, TVI, CVBS | iMD + IVS Support
  • 2 USB | Alarm 8/3 | 1HDMI, 1 VGA
  • 1U | ICR 4.0 GUI
  • Rack or Desktop Mountable

Specs

  • Embedded Processor
  • Display Resolution:
    • VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    • HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×720
  • HDAVS input: 4K@25/30 fps; 6 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps
  • Video Standard:
    • AHD Resolution: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
    • TVI Resolution: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
    • CVBS Standard: PAL/NTSC
  • Compression:G.711a; G.711u; PCM
  • Throughput:
    • Incoming bandwidth: 128 Mbps
    • Recording bandwidth: 128 Mbps
    • Outgoing bandwidth: 128 Mbps
  • Internal HDD: 2 SATA Ports, up to 10TB capacity for each disk
  • Ethernet: 1 RJ-45 port (10/100M/1000M)
  • Web Viewer: Chrome, IE, Firefox, Safari
  • Management Software: Smart ICRSS
  • Power Supply: DC 12V/5A
  • Power Consumption: <15W (Without HDD)

Dimensions

  • 1U, 14.76'' × 11.30'' × 2.09"

Features

  • 8Ch Coax + 8 IP
  • 2TB
  • 8MP (Coax & IP) Support
  • 128Mbps Bandwidth
  • 2 HDDs
  • Supports IP, AVS, AHD, TVI, CVBS | iMD + IVS Support
  • 2 USB | Alarm 8/3 | 1HDMI, 1 VGA
  • 1U | ICR 4.0 GUI
  • Rack or Desktop Mountable
