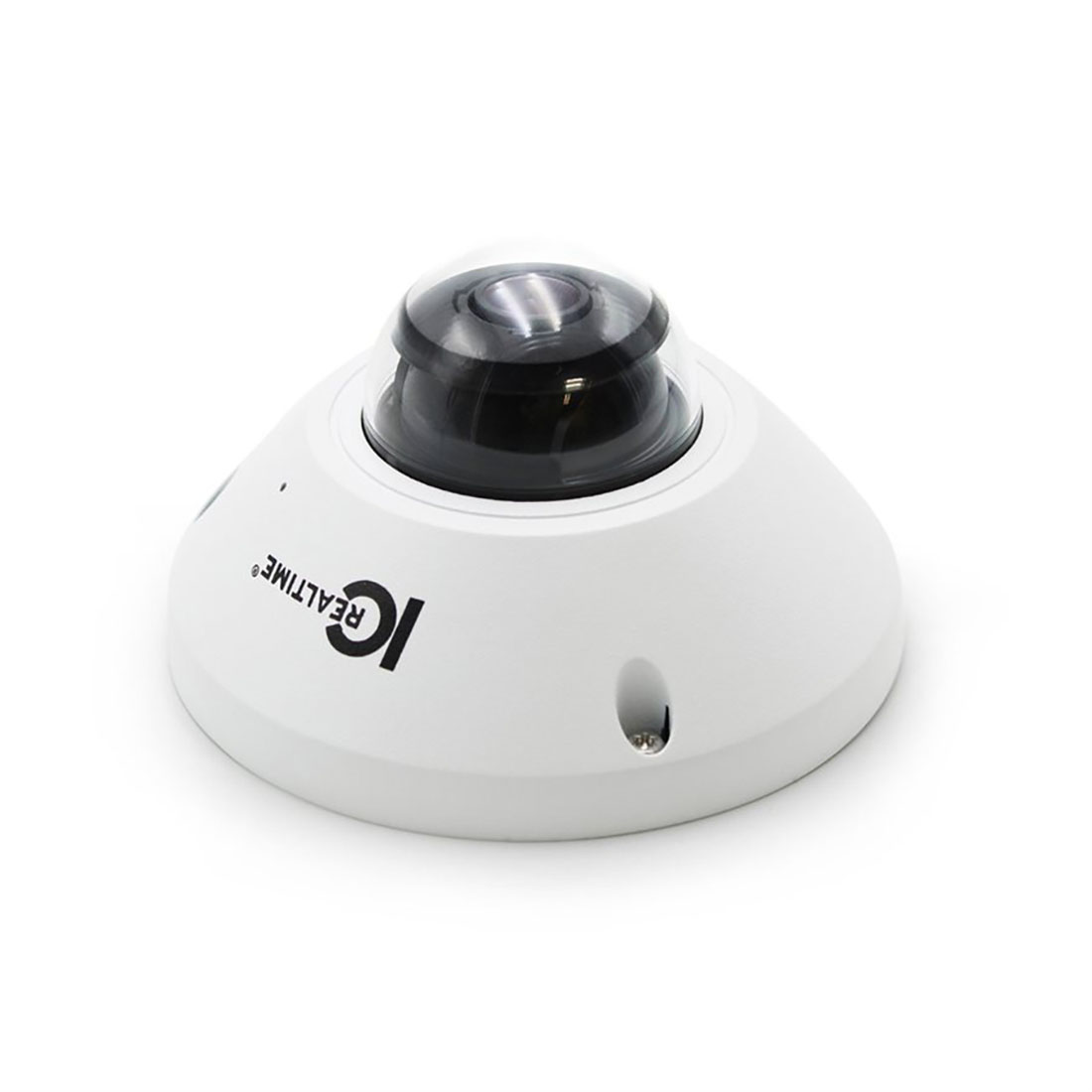

IC Realtime 5MP Indoor/outdoor 360A Spherical Dome

IC Realtime 5MP Indoor/outdoor 360A Spherical Dome
MSRP: $1106.00
Manufacturer: IC Realtime
SKU: IPEL-F50F-W2
Features
  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • H.265/H.264 triple-stream encoding
  • 5MP(2592 × 1944) @25/30 fps
  • Multiple dewarp modes, Built-in Mic
  • 120dB WDR, 3DNR, AWB, AGC, BLC
  • IVS Support, People Counting, Heat Map
  • 256GB Micro SD memory, IP67, IK10, PoE
What’s in the box
  • IC Realtime 5MP Indoor/outdoor 360A Spherical Dome

 Spec Sheet Download

Specs

Image Sensor1/2.7 5 Megapixel progressive scan CMOS
Scanning SystemProgressive
Effective Pixels2592(H) x 1944(V)
RAM/Rom128MB/ 512MB
Lens TypeFixed
Mount TypeBoard-in
Focal Length1.4mm
Max. ApertureF2.0
Angle of ViewHH180 degrees V180 degrees
Focus ControlFixed
Video Resolution5M (2592 x 1944) / 3M (2048 x 1536) / UXGA (1600 x 1200) / 1.3M (1280 x 960) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240)



Dimensions

Size2.44” x 4.3”
Weight1.1 lb.



Features
  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • H.265/H.264 triple-stream encoding
  • 5MP(2592 × 1944) @25/30 fps
  • Multiple dewarp modes, Built-in Mic
  • 120dB WDR, 3DNR, AWB, AGC, BLC
  • IVS Support, People Counting, Heat Map
  • 256GB Micro SD memory, IP67, IK10, PoE
What’s in the box
  • IC Realtime 5MP Indoor/outdoor 360A Spherical Dome

 Spec Sheet Download
