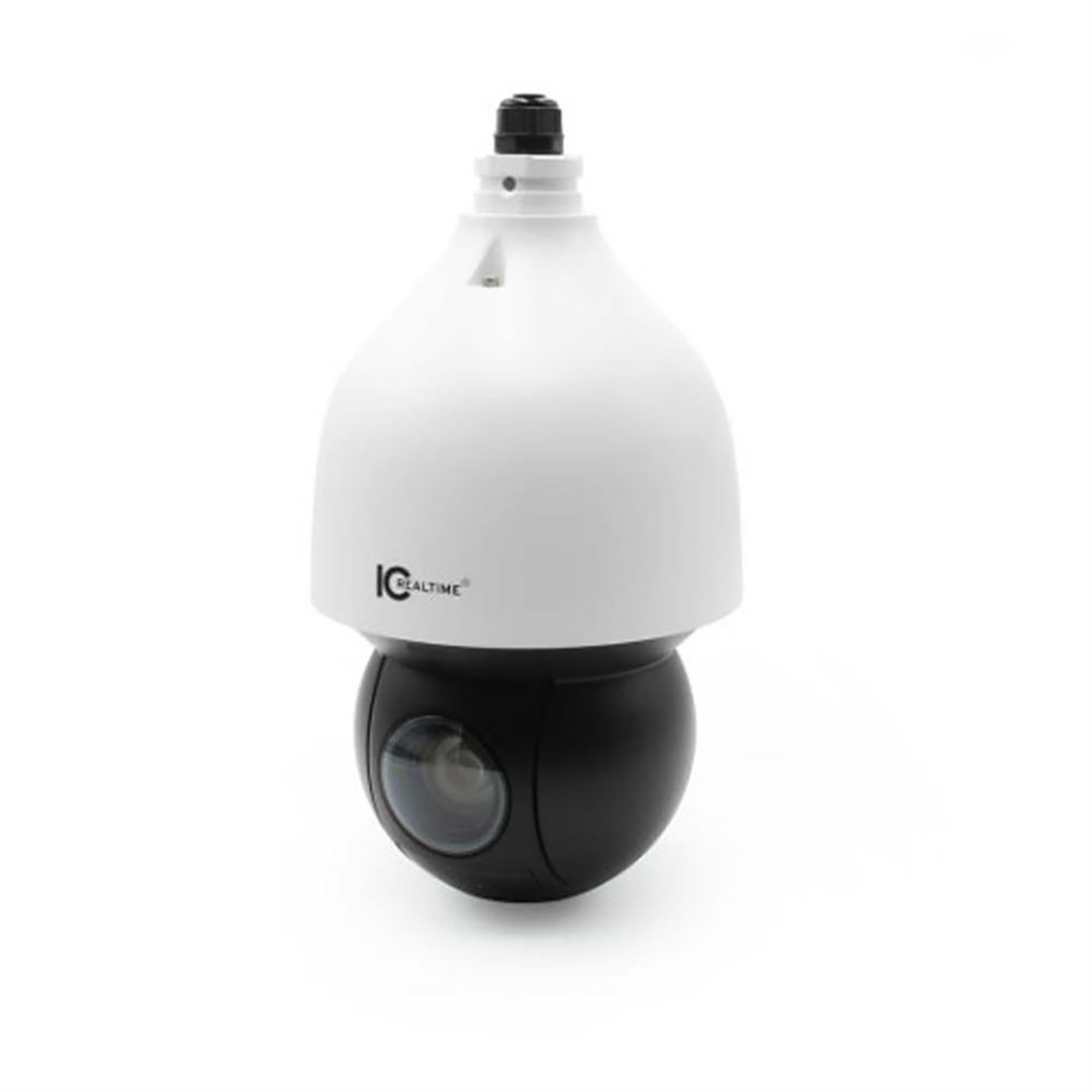

IC Realtime 4MP IP Mid Size PTZ. 32X Optical Zoom

IC Realtime 4MP IP Mid Size PTZ. 32X Optical Zoom
MSRP: $3688.00
Manufacturer: IC Realtime
SKU: IPFX-P4032X-IRW2
Features
  • ½.8” 4 Megapixel STARVISTM CMOS
  • Powerful 32x optical zoom
  • Max. 25/30fps @4M/3M. H.265 Encoding
  • iMD 2.0, perimeter protection and auto-tracking
  • IR distance up to 492 feet
  • IP67, IK10 and lightning protection
  • 256GB mSD support, DC 24V or PoE+
Specs
  • RAM/ROM: 4GB/1GB
  • Scanning System: Progressive
  • IR Distance: 492.13 ft
  • IR LEDs: 4
  • Focal Length: 4.9mm-154mm
  • Max. Aperture: F1.6-F4.0
  • Angle of View: Horizontal: 55.8º-2.4º / Vertical: 31.9º-1.3º
  • Optical Zoom: 32x
  • PTZ Mode: 5 patterns, 8 tour (up to 32 presets), 5 scan
  • Video Compression: H.265; H.264B; H.264M; H.264H; MJPEG (sub stream); H.265+; H.264+
  • Streaming Capability: 3 streams
  • Bit Rate Control: CBR/VBR
  • Gain Control: Auto / Manual
  • Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
  • Ethernet: RJ-45 (10/100Base-T)
  • Streaming Method: Unicast / Multicast
  • Power Consumption: Basic: 13 W, Max: 22 W (IRs on +PTZ moving)
Dimensions
  • Casing: Metal
  • Size: 7.48” x 13.07”
  • Gross Weight: 17.64 lbs.
What’s in the Box
  • (1) IC Realtime IPFX-P4032X-IRW2

Specs

RAM/ROM4GB/1GB
Scanning SystemProgressive
IR Distance492.13 ft
IR LEDs4
Focal Length4.9mm-154mm
Max. ApertureF1.6-F4.0
Angle of ViewHorizontal55.8º-2.4º / Vertical31.9º-1.3º
Optical Zoom32x
PTZ Mode5 patterns, 8 tour (up to 32 presets), 5 scan
Video CompressionH.265; H.264B; H.264M; H.264H; MJPEG (sub stream); H.265+; H.264+
Streaming Capability3 streams
Bit Rate ControlCBR/VBR
Gain ControlAuto / Manual
Audio CompressionPCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
EthernetRJ-45 (10/100Base-T)
Streaming MethodUnicast / Multicast
Power ConsumptionBasic13 W, Max22 W (IRs on +PTZ moving)



Dimensions

CasingMetal
Size7.48” x 13.07”
Gross Weight17.64 lbs.



Features
  • ½.8” 4 Megapixel STARVISTM CMOS
  • Powerful 32x optical zoom
  • Max. 25/30fps @4M/3M. H.265 Encoding
  • iMD 2.0, perimeter protection and auto-tracking
  • IR distance up to 492 feet
  • IP67, IK10 and lightning protection
  • 256GB mSD support, DC 24V or PoE+
Specs
  • RAM/ROM: 4GB/1GB
  • Scanning System: Progressive
  • IR Distance: 492.13 ft
  • IR LEDs: 4
  • Focal Length: 4.9mm-154mm
  • Max. Aperture: F1.6-F4.0
  • Angle of View: Horizontal: 55.8º-2.4º / Vertical: 31.9º-1.3º
  • Optical Zoom: 32x
  • PTZ Mode: 5 patterns, 8 tour (up to 32 presets), 5 scan
  • Video Compression: H.265; H.264B; H.264M; H.264H; MJPEG (sub stream); H.265+; H.264+
  • Streaming Capability: 3 streams
  • Bit Rate Control: CBR/VBR
  • Gain Control: Auto / Manual
  • Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
  • Ethernet: RJ-45 (10/100Base-T)
  • Streaming Method: Unicast / Multicast
  • Power Consumption: Basic: 13 W, Max: 22 W (IRs on +PTZ moving)
Dimensions
  • Casing: Metal
  • Size: 7.48” x 13.07”
  • Gross Weight: 17.64 lbs.
What’s in the Box
  • (1) IC Realtime IPFX-P4032X-IRW2
