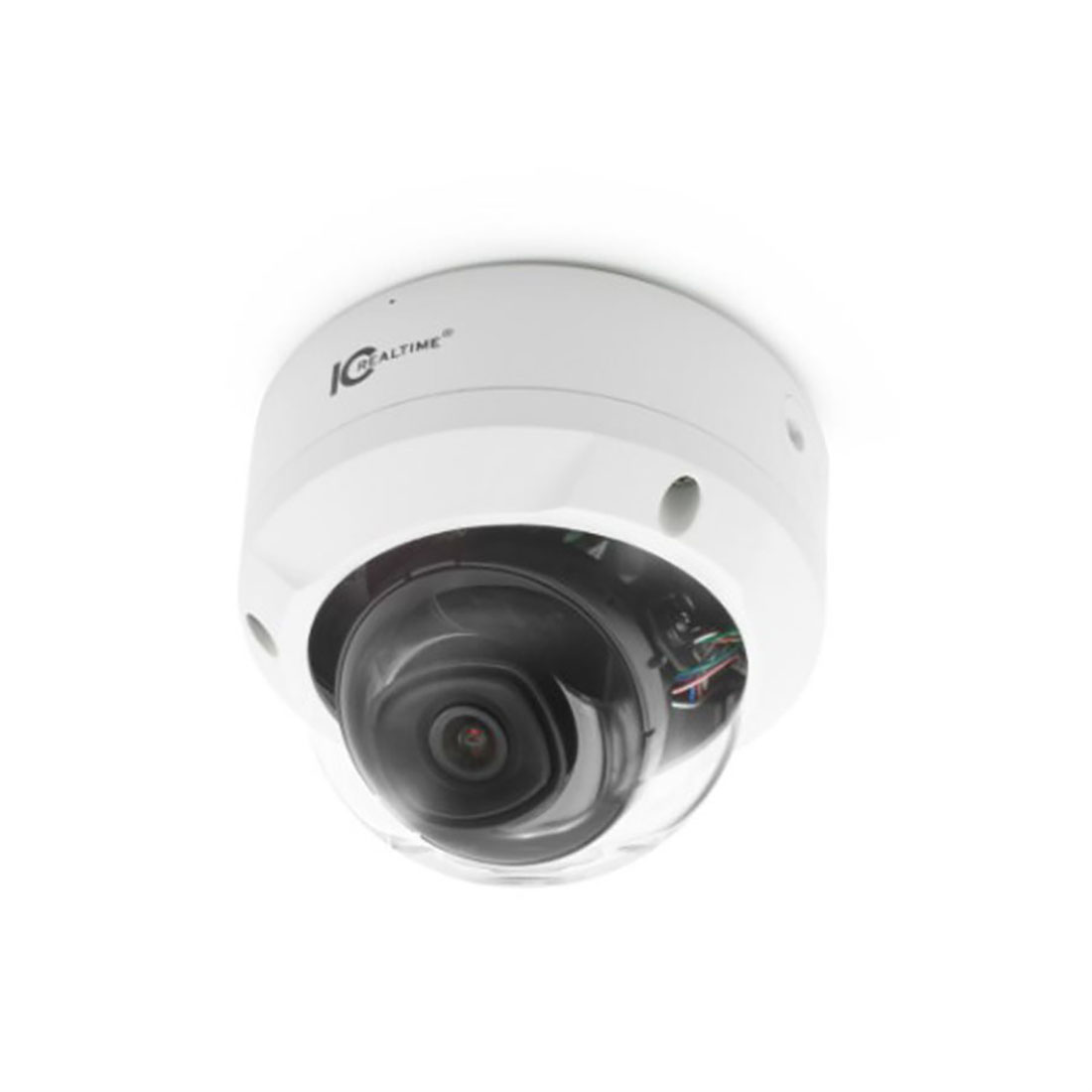

IC Realtime 4MP IP Indoor/Outdoor Small Size Vandal Dome. Fi

IC Realtime 4MP IP Indoor/Outdoor Small Size Vandal Dome. Fi
MSRP: $508.00
Manufacturer: IC Realtime
SKU: IPMX-D40F-IRW3
Features
  • 4MP, ½.9” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 triple-stream encoding
  • 4MP (2688 x 1520) @30fps
  • Intelligent Motion Detect 2.0 and perimeter protection
  • 2.8mm fixed lens, WDR (120dB), 3D DNR, HLC, BLC
  • Starlight support, Max. IR LEDs Length 164ft
  • 256GB Micro SD Support, IP67, PoE

Specs

Image Sensor½.9” 4 megapixel progressive CMOS
Effective Pixels2688 (H) x 1520 (V)
RAM/ROM512MB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s-1/10000 s
S/N Ratio>56 dB
IR LEDs3
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm
Max. ApertureF1.4
Angle of ViewHorizontal-107º / Vertical-56º
Close Focus Distance2.3ft
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Streaming Capability3 streams
Bit Rate ControlCBR/VBR
BLC ModeBLC / HLC / WDR (120dB)
Gain ControlAuto / Manual
Noise Reduction3D DNR
Audio CompressionG.711a;G.711Mu;PCM;G.726;G.723
EthernetRJ-45 (10/100Base-T)
Max. User Access20 users (total bandwidth64M)
Power SupplyDC12V, PoE (802.3af)



Dimensions

Size3.51” x Ø4.40”
Gross Weight1.48 lbs.



Features
  • 4MP, ½.9” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 triple-stream encoding
  • 4MP (2688 x 1520) @30fps
  • Intelligent Motion Detect 2.0 and perimeter protection
  • 2.8mm fixed lens, WDR (120dB), 3D DNR, HLC, BLC
  • Starlight support, Max. IR LEDs Length 164ft
  • 256GB Micro SD Support, IP67, PoE

}
