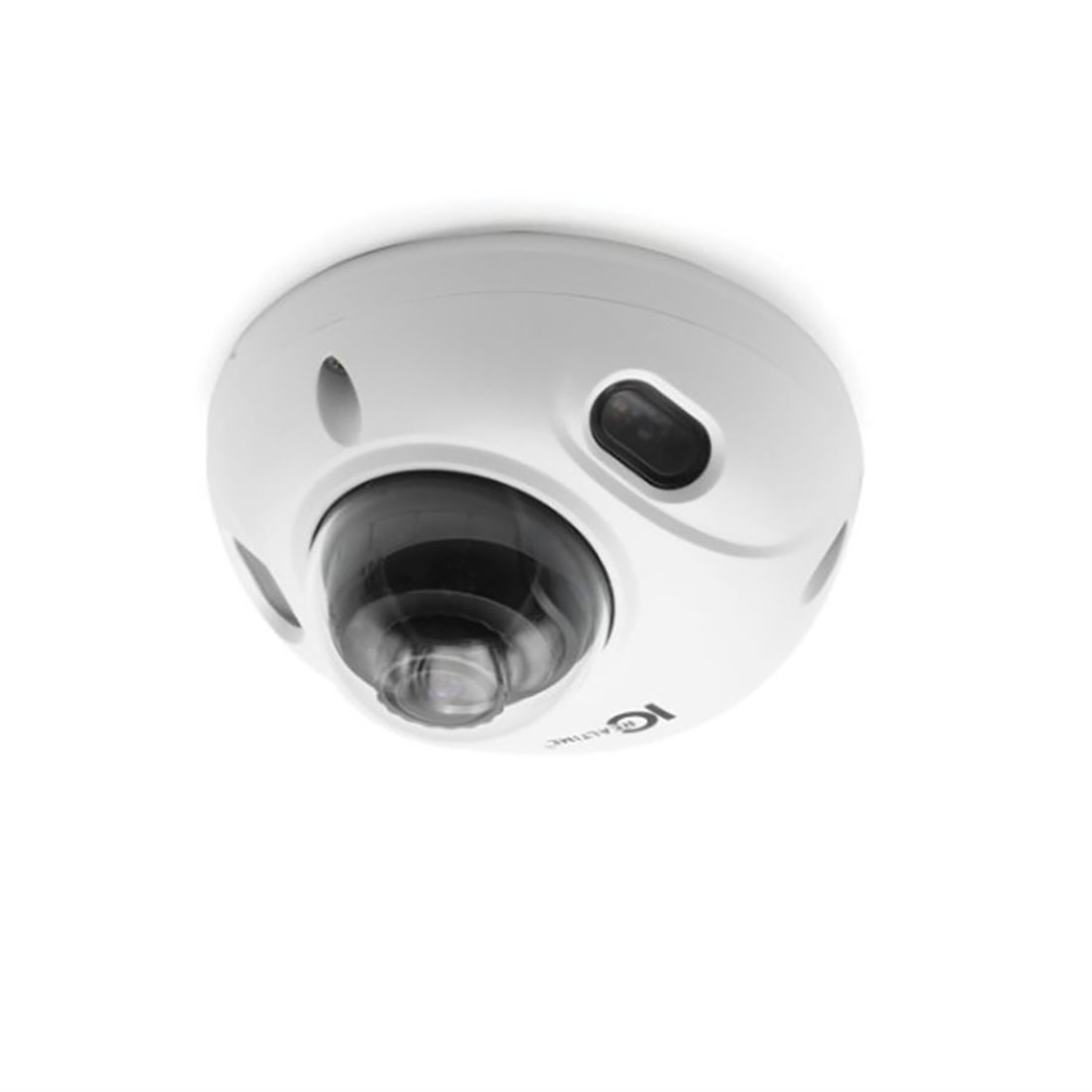

IC Realtime 4MP IP INDOOR/OUTDOOR SMALL SIZE VANDAL DOME

IC Realtime 4MP IP INDOOR/OUTDOOR SMALL SIZE VANDAL DOME
MSRP: $572.00
Manufacturer: IC Realtime
SKU: IPMX-W40F-IRW3
Features
  • 1/2.9” 4 megapixel progressive scan CMOS
  • H.265 and H.264 triple-stream encoding
  • 30fps @4MP (2688 x 1520)
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR(120dB), Day/Night (ICR), 3DNR, AWB
  • 2.8mm fixed lens, Built-in Mic
  • Starlight support, Max IR LED length 98 feet
  • 256GB Micro SD memory, IP67, IK10, PoE

Specs

Effective Pixels2688 (H) x 1520 (V)
RAM/ROM512MB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s-1/00000 s
S/N Ratio>56 dB
IR Distance98.43 ft
IR On/Off ControlAuto/Manual
IR LEDs2
Lens TypeFixed
Mount TypeM12
Focal Length2.8mm
Max. ApertureF1.4
Angle of ViewHorizontal-102º / Vertical-54º
Focus ControlFixed
Close Focus Distance2.95ft
Video CompressionH.265; H.264; H.264B; MJPEG (sub stream only)
Streaming Capability3 streams
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
EthernetRJ-45 (10/100Base-T)
Max. User Access20 (total bandwidth64 M)
Power SupplyDC12V, PoE (802.3af)
Power Consumption3.8W



Dimensions

Size2.55” x 4.37”
Weight1.17 lbs.



Features
  • 1/2.9” 4 megapixel progressive scan CMOS
  • H.265 and H.264 triple-stream encoding
  • 30fps @4MP (2688 x 1520)
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR(120dB), Day/Night (ICR), 3DNR, AWB
  • 2.8mm fixed lens, Built-in Mic
  • Starlight support, Max IR LED length 98 feet
  • 256GB Micro SD memory, IP67, IK10, PoE

}
