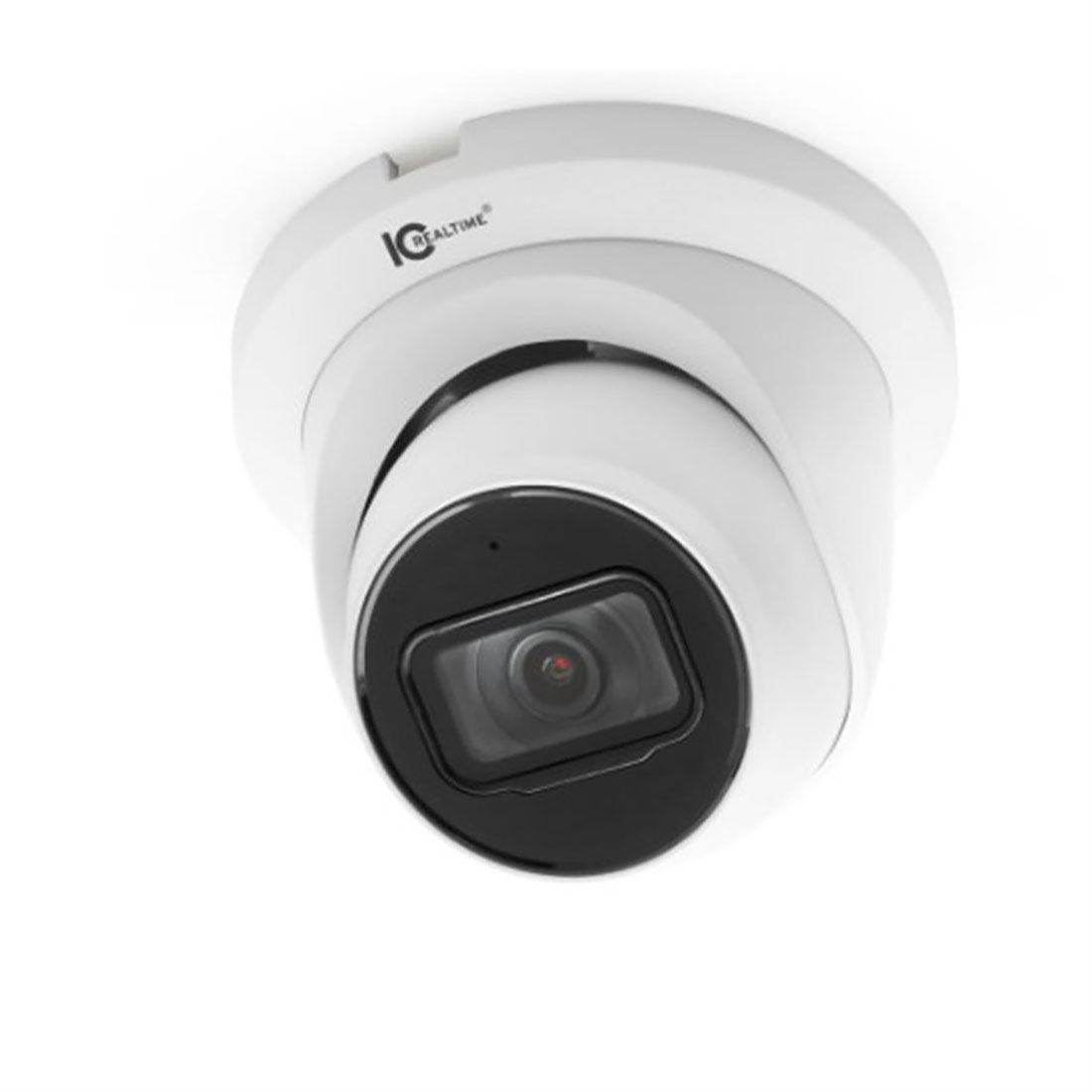

IC Realtime 4MP IP Indoor/Outdoor Small Size Eyeball Dome

IC Realtime 4MP IP Indoor/Outdoor Small Size Eyeball Dome
MSRP: $492.00
Manufacturer: IC Realtime
SKU: IPMX-E40F-IRW3
Features
  • 4MP, ½.9” CMOS image sensor, low illuminance, high definition image
  • H.265 and H.264 triple-steam encoding
  • Outputs 4MP (2688 x 1520) @25/30fps
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens, Built-in microphone
  • Starlight support, Max. IR LEDs length 164ft.
  • Micro SD memory, IP67, PoE

Specs

Image Sensor½.9” 4 megapixel progressive CMOS
Effective Pixels2688 (H) x 1520 (V)
RAM/ROM512MB/128MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s-1/100000 s
S/N Ratio> 56 dB
IR LEDs2
Lens TypeFixed focal
Mount TypeM12
Max. ApertureF1.4
Angle of ViewHorizontal-102degree / Vertical-54degree
Iris TypeFixed aperture
Focus ControlFixed
Video CompressionH.265; H.264H; H.264B; MJPEG (sub stream only)
Smart CodecSmart H.265+; Smart H.264+
AI CodingAI H.265; AI H.264
Streaming Capability3 streams
Bit Rate ControlCBR/VBR
BLC ModeBLC / HLC / WDR (120dB)
Gain ControlAuto / Manual
Noise Reduction3D DNR
Digital Zoom16x
Audio CompressionG.711a; G.711Mu; PCM; G.726; G.723
EthernetRJ-45 (10/100Base-T)
Streaming MethodUnicast / Multicast
Max. User Access20 (total bandwidth64 M)
Power SupplyDC12V, PoE (802.3af)
CasingMetal/Plastic



Dimensions

Size3.69” x Ø4.17”
Gross Weight1.7 lbs.



Features
  • 4MP, ½.9” CMOS image sensor, low illuminance, high definition image
  • H.265 and H.264 triple-steam encoding
  • Outputs 4MP (2688 x 1520) @25/30fps
  • Intelligent motion detect 2.0 and perimeter protection
  • WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • 2.8mm fixed lens, Built-in microphone
  • Starlight support, Max. IR LEDs length 164ft.
  • Micro SD memory, IP67, PoE

}
