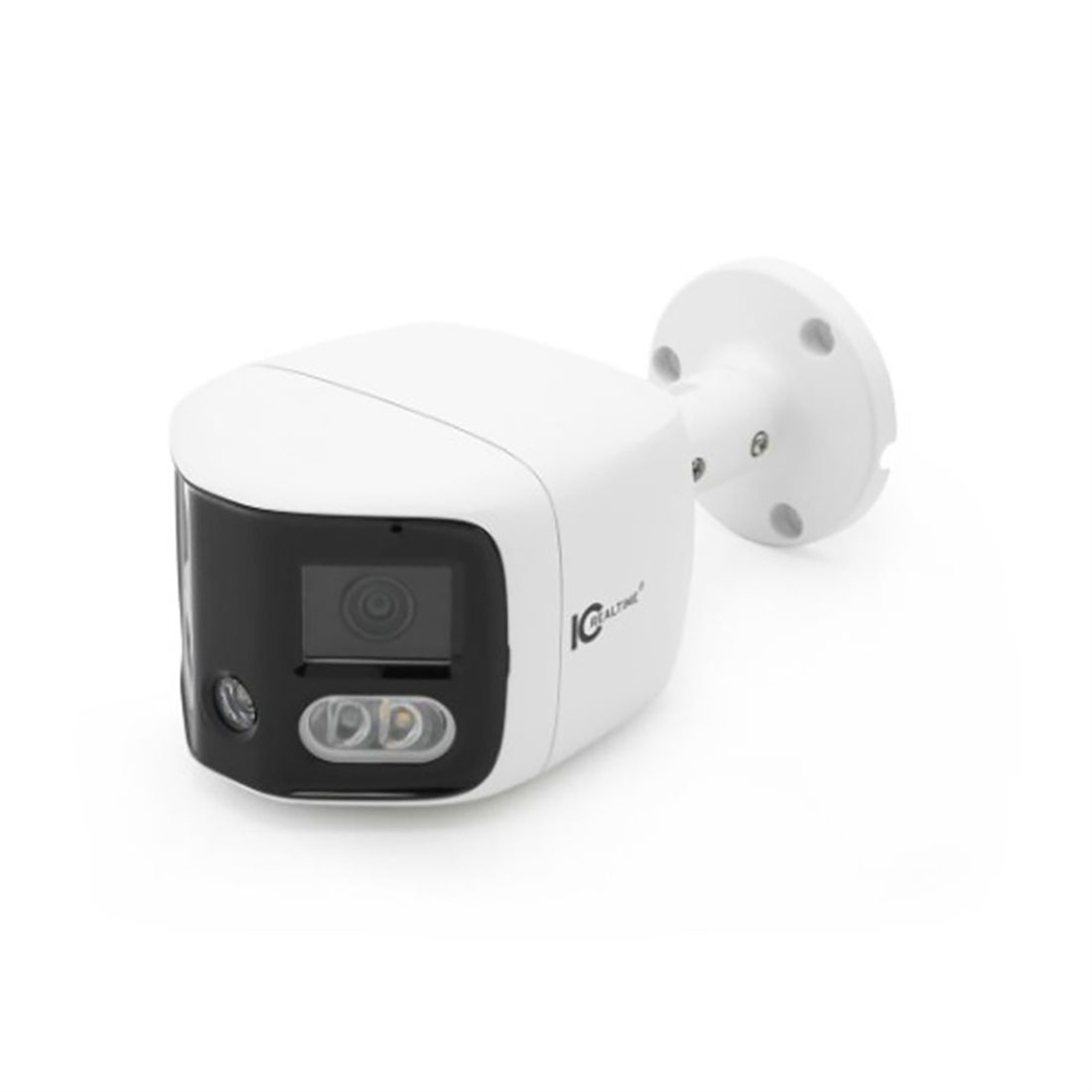

IC Realtime 2X 4MP (8MP TOTAL) IP 180° PANORAMIC FULL SIZE B

IC Realtime 2X 4MP (8MP TOTAL) IP 180° PANORAMIC FULL SIZE B
MSRP: $1120.00
Manufacturer: IC Realtime
SKU: IPEL-PB80F-ADW1
Features
  • Dual 4MP 1/2.7” CMOS image sensor, outputs 180º wide angle spliced image
  • H.265+ and H.265 triple-stream encoding
  • Max 8MP (4096 x 1860) @20 fps
  • Active Deterrence: Built-in siren, red and blue LEDs
  • Built-in Mic and 2-way talk
  • IMD 2.0, perimeter protection, ePTZ Tracking
  • Dual Illumination: Max IR length 82 feet, max white LED length 65ft
  • 256B micro SD memory, IP67, PoE

Specs

Scanning SystemProgressive
S/N Ratio>56dB
IR DistanceDistance up to 82ft
White Light DistanceDistance up to 65ft
Illumination ControlIR, Warm Light, Smart Illumination, Scheduled
IR LEDs2
White Light LEDs2
Lens TypeFixed
Mount TypeM12
Focal Length2.8mm
Max. ApertureF1.4
Angle of ViewHorizontal-180º / Vertical-86º
Focus ControlFixed
Close Focus Distance2.62ft
Streaming Capability3 streams
Bit Rate ControlCBR/VBR
Backlight SettingsBLC / HLC / WDR
Gain ControlAuto
Noise Reduction3D DNR
WDR120dB
CompressionG.711a; G.711Mu; PCM; G.726; G.723
EthernetRJ-45 (10/100Base-T)
Streaming MethodUnicast / Multicast
Max. User Access20 (total bandwidth80 M)
Power Supply12 VDC (+/30%); PoE (802.3af)
CasingMetal and Plastic



Dimensions

Size7.20” x 3.90” x 3.07”
Net Weight1.53 lbs.
Gross Weight1.92 lbs.



Features
  • Dual 4MP 1/2.7” CMOS image sensor, outputs 180º wide angle spliced image
  • H.265+ and H.265 triple-stream encoding
  • Max 8MP (4096 x 1860) @20 fps
  • Active Deterrence: Built-in siren, red and blue LEDs
  • Built-in Mic and 2-way talk
  • IMD 2.0, perimeter protection, ePTZ Tracking
  • Dual Illumination: Max IR length 82 feet, max white LED length 65ft
  • 256B micro SD memory, IP67, PoE

}
