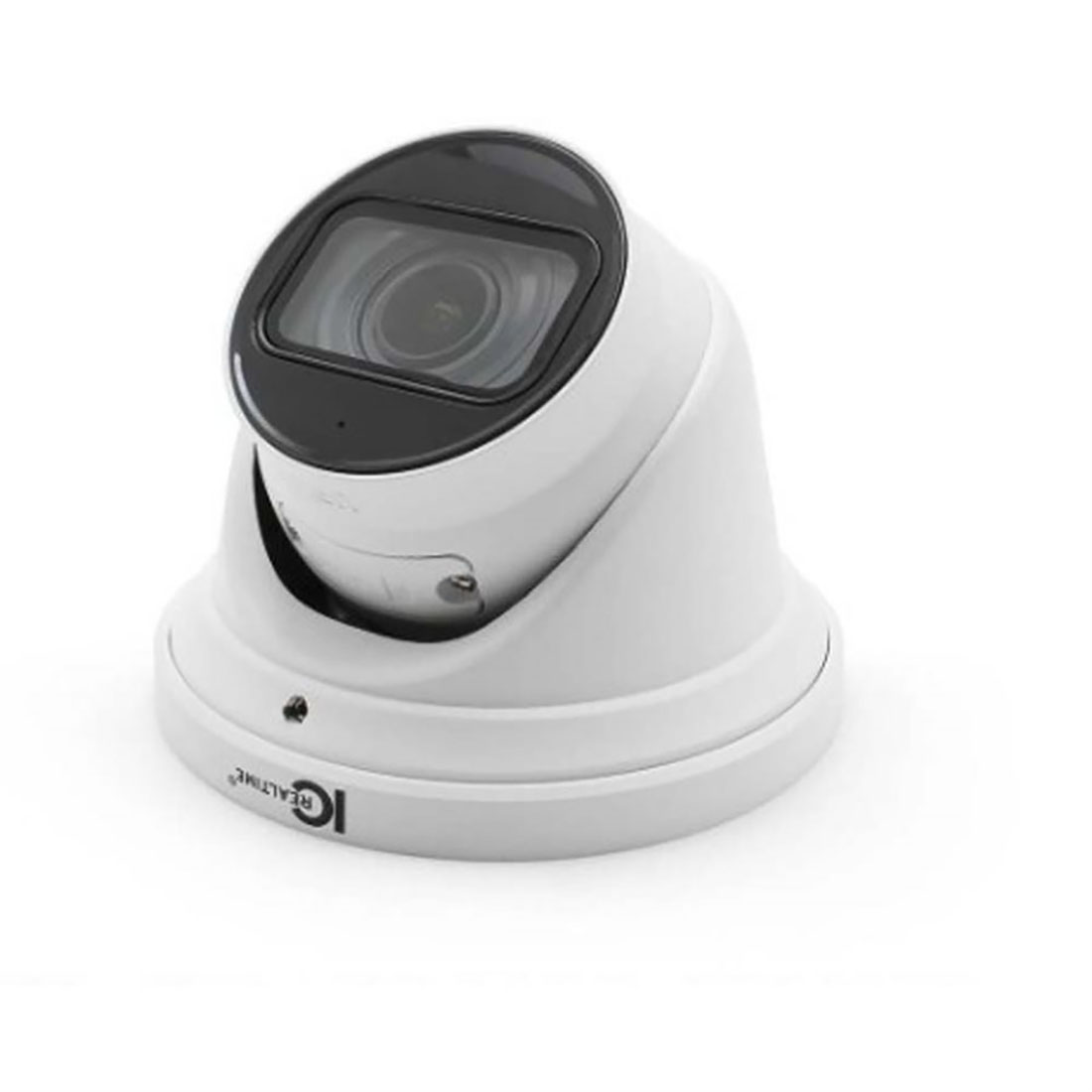

IC Realtime 2MP IP Indoor/Outdoor Small Size Starlight Eyeba

IC Realtime 2MP IP Indoor/Outdoor Small Size Starlight Eyeba
MSRP: $480.00
Manufacturer: IC Realtime
SKU: IPFX-E20V-IRW1
Features
  • 2MP, ½.8” CMOS image sensor, low illuminance, high image definition
  • H.265 and H.264 triple-stream encoding
  • Outputs max. 2MP (1920 x 1080) @30 fps
  • Intelligent motion detect and perimeter protection
  • WDR (120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Starlight Max. IR LEDs length 131 ft
  • Built-in Mic
  • 256GB Micro SD memory, IP67, PoE
Specs
  • RAM/ROM: 256MB/128MB
  • Scanning System: Progressive
  • S/N Ratio: >56 dB
  • IR Distance: 131.2 ft
  • IR LEDs: 2
  • Lens Type: Motorized vari-focal
  • Focal Length: 2.7mm-13.5mm
  • Max. Aperture: F1.5
  • Angle of View: Horizontal: 108º-28º / Vertical: 57º-16
  • Iris Type: Fixed
  • Close Focus Distance: 2.6 ft
  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream)
  • Streaming Capability: 3 streams
  • Bit Rate Control: CBR/VBR
  • BLC Mode: BLC/HLC/WDR (120dB)
  • Gain Control: Auto/Manual
  • Noise Reduction: 3D DNR
  • Digital Zoom: 16x
  • Audio Compression: G.711a; G.711Mu; G.726; AAC
  • Ethernet: RJ-45 (10/100Base-T)
  • Streaming Method: Unicast / Multicast
  • Power Supply: DC12V, PoE (802.3af)
  • Power Consumption: <7.8W
Dimensions
  • Casing: Metal
  • Size: 4.3” x 4.8”
  • Gross Weight: 1.8 lbs.
What’s in the Box
  • (1) IC Realtime IPFX-E20V-IRW1
