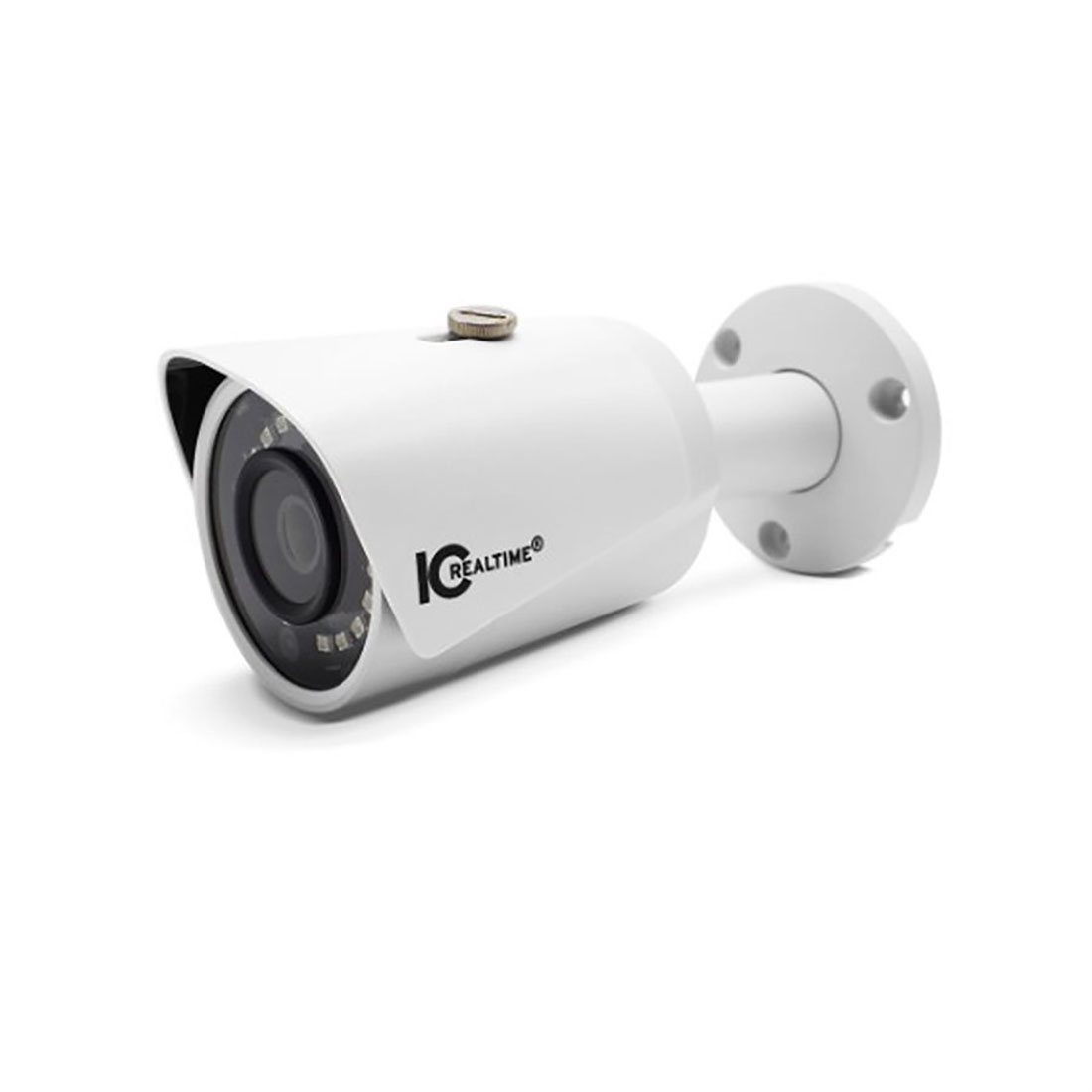

IC Realtime 2MP IP Indoor/Outdoor Small Bullet Camera

IC Realtime 2MP IP Indoor/Outdoor Small Bullet Camera
MSRP: $148.00
Manufacturer: IC Realtime
SKU: IPEG-B20F-IRW4
Features
  • 2MP, 1/2.8” CMOS image sensor
  • H.265 and H.264 dual-stream encoding
  • 2MP (1920 x 1080) @25/30 fps
  • DWDR, 3D DNR, HLC, BLC
  • 2.8mm fixed lens, Max. IR LEDs Length 98ft
  • Cyber Security, IP67, PoE
  • TAA Compliant
Specs
  • RAM/ROM: 64MB/16MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3 s-1/100000 s
  • S/N Ratio: More than 56dB
  • IR Distance: Distance up to 98.43 ft
  • IR LEDs: 18
  • Lens Type: Fixed
  • Mount Type: M12
  • Focal Length: 2.8mm
  • Max. Aperture: F2.0
  • Horizontal Angle of View: 102º
  • Vertical Angle of View: 54º
  • Focus Control: Fixed
  • Video Compression: H.265; H.264; H.264B; MJPEG (sub stream only)
  • Streaming Capability: 2 streams
  • Bit Rate Control: CBR/VBR
  • BLC Mode: BLC / HLC / DWDR
  • Gain Control: Auto / Manual
  • Noise Reduction: 3D DNR
  • Digital Zoom: 16x
  • Ethernet: RJ-45 (10/100Base-T)
  • Streaming Method: Unicast/Multicast
  • Max. User Access: 6 (total bandwidth: 36 M)
Dimensions
  • Size: 6.5” x 2.8”
  • Gross Weight: 1.1 lb.
What’s in the Box
  • (1) IC Realtime IPEG-B20F-IRW4

Special Order Only
