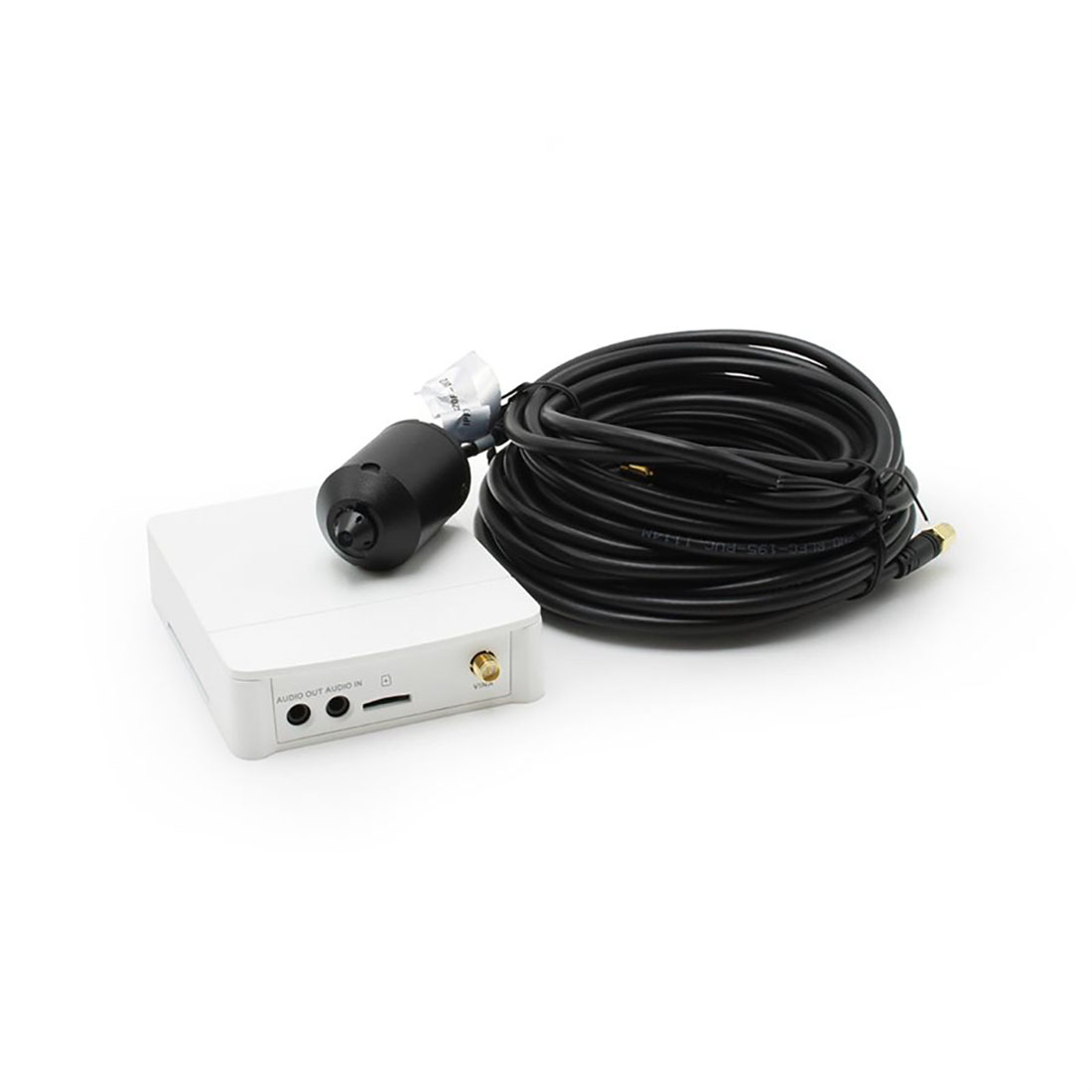

IC Realtime 2MP IP Indoor Mini Pinhole. 2.8mm Lens. POE Capa

IC Realtime 2MP IP Indoor Mini Pinhole. 2.8mm Lens. POE Capa
MSRP: $706.00
Manufacturer: IC Realtime
SKU: IPFX-S20F-W2
Features
  • 1/2.8” 2 Megapixel progressive lens
  • H.265 & H.264 triple-stream encoding
  • 25/30fps@1080P(1920×1080)
  • 2.8mm Fixed Pinhole Lens
  • Starlight support, 120dB WDR, 3DNR, AWB, AGC, BLC
  • IVS Support (Tripwire, Intrusion, Face Detect)
  • Micro SD Support (256GB), PoE
What’s in the box
  • IC Realtime 2MP IP Indoor Mini Pinhole. 2.8mm Lens. POE Capable

 Spec Sheet Download

Specs

Image Sensor1/2.8 CMOS
Effective Pixels1920(H)x1080(V)
RAM/Rom512MB / 128MB
Scanning SystemProgressive
Lens TypeFixed
Mount TypeBoard-in
Focal Length2.8mm
Max. ApertureF2.0
Angle of ViewH:105° ,V:58°
Focus ControlFixed
Video Resolution1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 / 342 x 240)



Dimensions

Body Size4.33” × 3.26” × 0.95”
Lens Size1.2” × 1.91”
Weight Body0.66 lb.
Weight Lens1.03 lb.



Features
  • 1/2.8” 2 Megapixel progressive lens
  • H.265 & H.264 triple-stream encoding
  • 25/30fps@1080P(1920×1080)
  • 2.8mm Fixed Pinhole Lens
  • Starlight support, 120dB WDR, 3DNR, AWB, AGC, BLC
  • IVS Support (Tripwire, Intrusion, Face Detect)
  • Micro SD Support (256GB), PoE
What’s in the box
  • IC Realtime 2MP IP Indoor Mini Pinhole. 2.8mm Lens. POE Capable

 Spec Sheet Download
