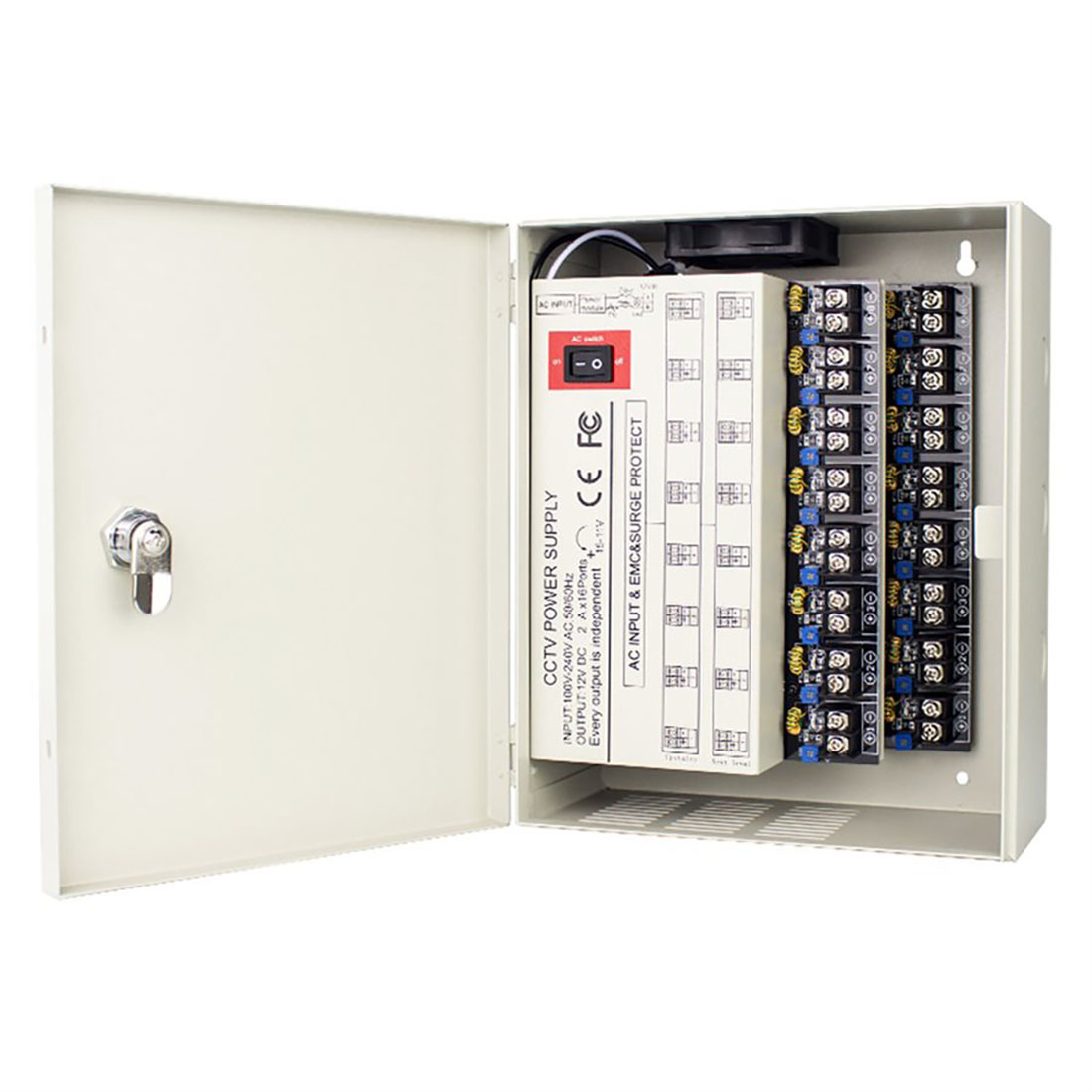

IC Realtime 16 Channel Power Supply AC110-220V, 4A 47-63Hz O

IC Realtime 16 Channel Power Supply AC110-220V, 4A 47-63Hz O
MSRP: $514.00
Manufacturer: IC Realtime
SKU: PS-DC32A16HD-4DK
Features
  • Provides 12v, 2 amps for 16 channels
  • Universal AC Input Range. 110V-220VAC, 47-63Hz
  • Individual voltage adjustable for each output, 11-15V
  • Regulated and filtered DC outputs
  • External LED indicator for each output
  • Short circuit /Over Voltage/Over Current/Over Temp Protection
  • 100% full load burn-in test, High efficiency, Long service life, high reliability
What’s in the box
  • IC Realtime 16 Channel Power Supply AC110-220V, 4A 47-63Hz Output: DC 12V 32A

 Spec Sheet Download

Specs

Input Voltage:  AC110- 220V, 4A 47-63Hz
OutputDC 12V 32A(MAX)
Channels16 Channel
Efficiency≥82%
Fuse TypePTC Fuse
Fuse Rating2000MA
Load regulationA ±5%



Dimensions

Size8”x 9.8”x 3.0”
Weight4.4 lb.



Features
  • Provides 12v, 2 amps for 16 channels
  • Universal AC Input Range. 110V-220VAC, 47-63Hz
  • Individual voltage adjustable for each output, 11-15V
  • Regulated and filtered DC outputs
  • External LED indicator for each output
  • Short circuit /Over Voltage/Over Current/Over Temp Protection
  • 100% full load burn-in test, High efficiency, Long service life, high reliability
What’s in the box
  • IC Realtime 16 Channel Power Supply AC110-220V, 4A 47-63Hz Output: DC 12V 32A

 Spec Sheet Download
