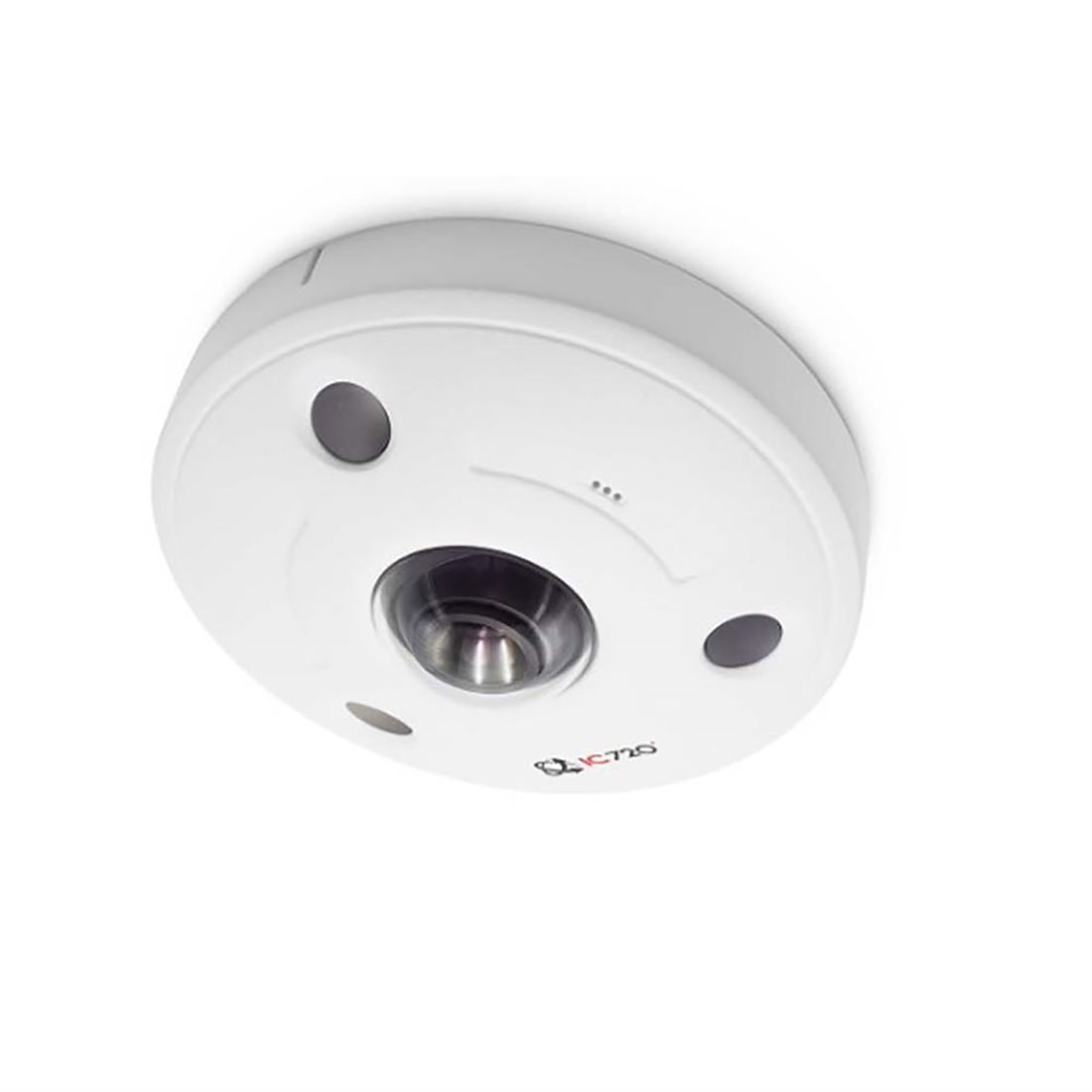

IC Realtime 12MP IP Indoor/Outdoor 360 Spherical Dome

Special Order Only

• 1/1.7” 12MP progressive scan STRAVISTM CMOS
• H.265/H.264 triple-stream encoding
• Max 25fps @12M (4000 x 3000), 8M (3280 x 2480) @ 25/30 fps
• Multiple dewarped modes
• Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Perimeter Protection, People Counting, Heat Map
• Max. IR LEDs length 33ft
• Built-in dual array microphone and speaker, Micro SD memory, IP67, IK10, PoE

• Scanning System: Progressive
• IR Distance: Distance up to 33ft
• IR LEDs: 3
• Lens Type: Fixed
• Mount Type: M12
• Focal Length: 1.85mm
• Max. Aperture: F2.0
• Angle of View: Horizontal-185º / Vertical-180º
• IVS: Tripwire, Intrusion
• Advanced Intelligent Functions: Heat Map, People Counting (supports 4 rules)
• Video Compression: H.265; H.264; H.264H; MJPEG (sub stream only)
• Streaming Capabilities: 3 streams
• Bit Rate Control: CBR/VBR
• Gain Control: Auto / Manual
• Privacy Masking: 4 areas
• Audio Compression: PCM; G.711A; G.711Mu; G.726; G.723
• Ethernet: RJ-45 (10/100Base-T)
• Streaming Method: Unicast / Multicast
• Max. User Access: 20
• Power Supply: 12V DC/PoE

• Casing: Metal
• Size: 2.35” x 5.90”
• Gross Weight: 2.67 lbs.

• IC Realtime IPEL-F12F-IRW2
