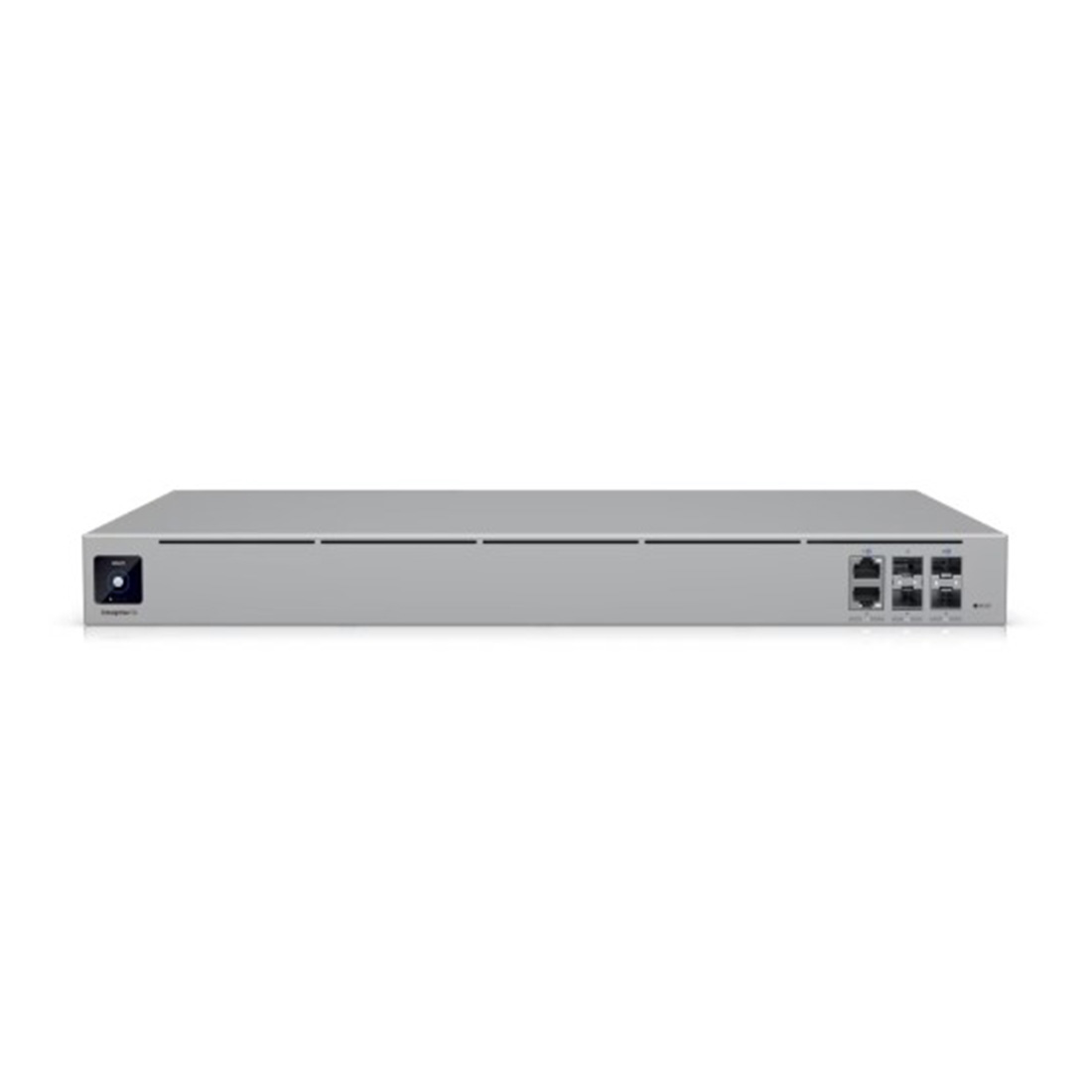

EFG - Enterprise Fortress Gateway 25G Cloud Gateway with 500+ UniFi device

EFG - Enterprise Fortress Gateway 25G Cloud Gateway with 500+ UniFi device
MSRP: $1999.00
Manufacturer: Ubiquiti
SKU: EFG

Specs

  • Managed UniFi Devices: 500+
  • Simultaneous Users Connected: 5,000+
  • Max. WAN Port Count: 5
  • Default WAN Ports: (1) 25G SFP28 | (1) 2.5 GbE RJ45
  • Port Layout: 2.5 GbE RJ45 - 2 (2.5G/1G/100M/10M) | 10G SFP+ - 2 (10G/1G) | 25G SFP28 - 2 (25G/10G/1G)
  • IDS/IPS Throughput: 12.5 Gbps
  • SSL/TLS Inspection Concurrent Sessions: 10,000
  • Concurrent Sessions: 1 Million
  • New Sessions / Second: 71,000
  • Form Factor, Rack mount (1U)
  • Redundancy: Shadow Mode (VRRP) Gateway Failover, (2) Hot-Swappable PSUs
  • Security: Stateful Firewall, Application-Aware Layer 7 Firewall, SSL Inspection & URL Filtering, DPI & Traffic Identification, Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps), Content Filtering, Intrusion Prevention (IPS/IDS), Ad Blocking, VLAN/Subnet-based Traffic Segmentation
  • IDS/IPS Signatures: 95,000+ with CyberSecure Enterprise
  • License-Free SD-WAN
  • Site-to-Site VPN: Site Magic, IPsec, OpenVPN
  • VPN Server: Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP, VPN Client: OpenVPN, WireGuard
  • VPN Server Single User Throughput: Identity Endpoint One-Click VPN - 1.2 Gbps | Teleport - 1.2 Gbps | WireGuard - 1.2 Gbps | OpenVPN  - 210 Mbps | L2TP - 280 Mbps
  • Site-to-Site VPN Single Tunnel Throughput: Site Magic - 1.1 Gbps | OpenVPN - 120 Mbps | IPsec - 580 Mbps
  • VPN Client Single Tunnel Throughput: WireGuard - 980 Mbps | OpenVPN - 180 Mbps
  • Networking: Multi-WAN Load Balancing, Shadow Mode (VRRP) High Availability, LACP Port Aggregation, Advanced QoS, Multicast DNS (mDNS) , Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT), Integrated RADIUS Server, RADIUS over TLS (RadSec), Additional Internet Failover with UniFi LTE Backup, Internet Quality and Outage Reporting, Policy-based WAN and VPN Routing, Customizable DHCP Server, IPv6 ISP Support, IGMP Proxy, All Traffic Flows
  • Dynamic Routing: OSPF, BGP
  • Max. Power Consumption: 82W
  • Power Method: Universal AC input, 100—240V AC, 7A Max., 50/60 Hz
  • Power Supply: (2) Hot-swappable 150W CRPS
  • Supported Voltage Range: 100—240V AC
  • Heat Dissipation: 280 BTU/hr
  • Processor: 18-core ARM® v8.2 at 2 GHz
  • Enclosure Material: Aluminium CNC, SGCC steel
  • LCM Display: 1.3" touchscreen
  • Management: Ethernet, Bluetooth
  • ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • NDAA Compliant
  • Certifications: CE, FCC, IC, Anatel: 06375-24-08356

Dimensions

  • 17.4" x 1.7" x 12.8"
  • 14.3 lbs
