EchoMaster ParkAlert Rear Sensor System (matte black)

EchoMaster ParkAlert Rear Sensor System (matte black)
MSRP: $199.00
Manufacturer: EchoMaster
SKU: PS-RBP-M
Features
  • Triangulation technology
  • 2 or 4 sensor installation
  • Low profile, paintable sensors
  • Wide detection angle with minimal blind area
  • OE sounding tone
  • Dip switch settings for detection zones
  • Self-diagnostic mode at startup
  • Compatible with optional display PA-DISPLAY (sold separately)
What’s in the box

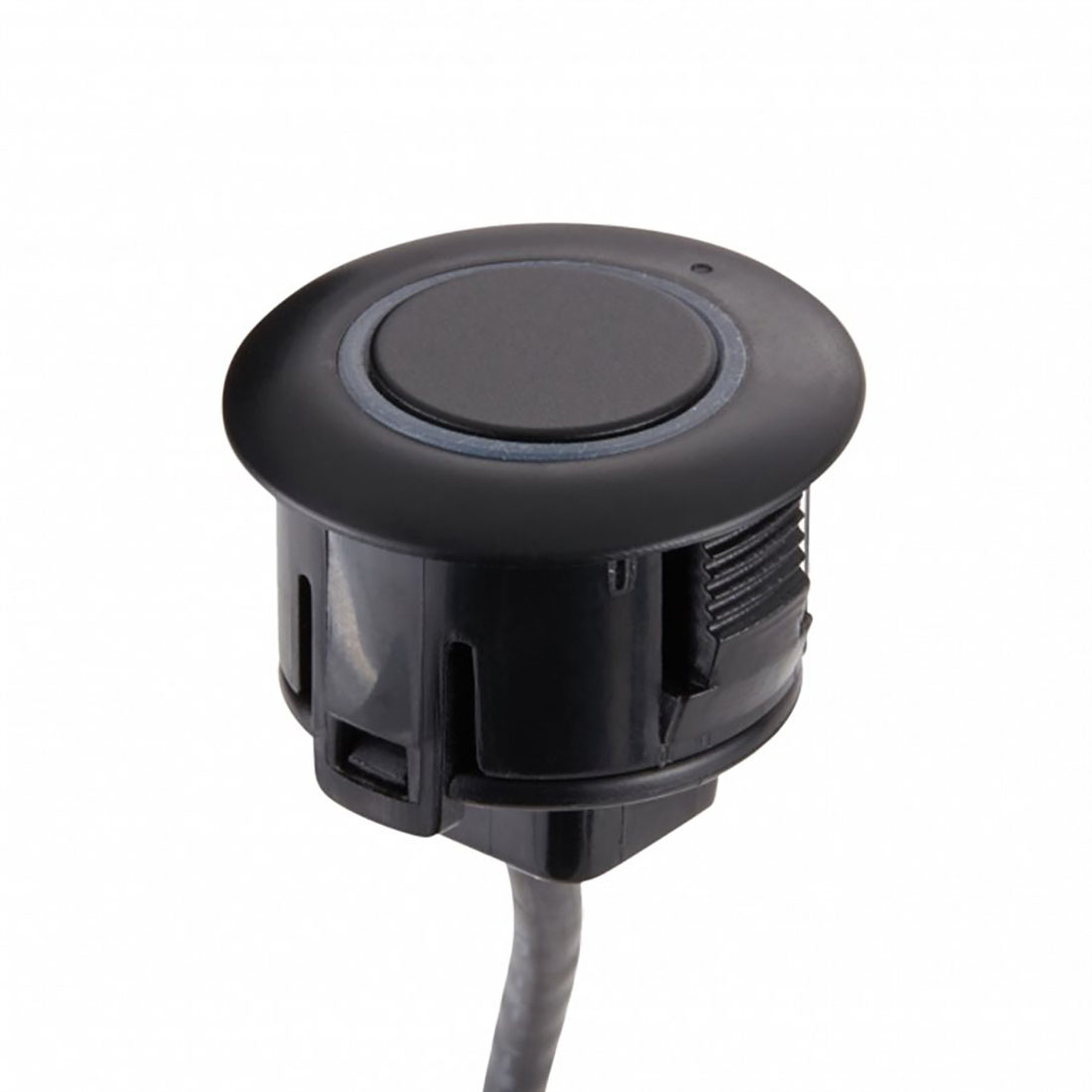

  • 4 Bumper Mount Sensors with 18” Pigtail
  • 4 Black Rubber Seals
  • 4 6° Sensor Sleeves
  • 4 12° Sensor Sleeves
  • Control Module
  • Speaker with Volume Control
  • Power Harness
  • 22.5mm Hole Saw
  • Accessory Pack
  • Measuring Tape
  • User Manual
  • Warranty Card

 Manual Download

Specs

Operating Voltage Range10.5 - 16V DC
Rated Voltage12V DC
Rated Current400mA
Operating Temperature-20C - +70C
Waterproof Grade (Sensors & Module)IP67 - ModuleIP40
Detection Range0-1.7m; 0-8.2ft
Harness Length8 feet
Hole Saw22.5mm
Angle Sleeves6 degrees and 12 degrees
