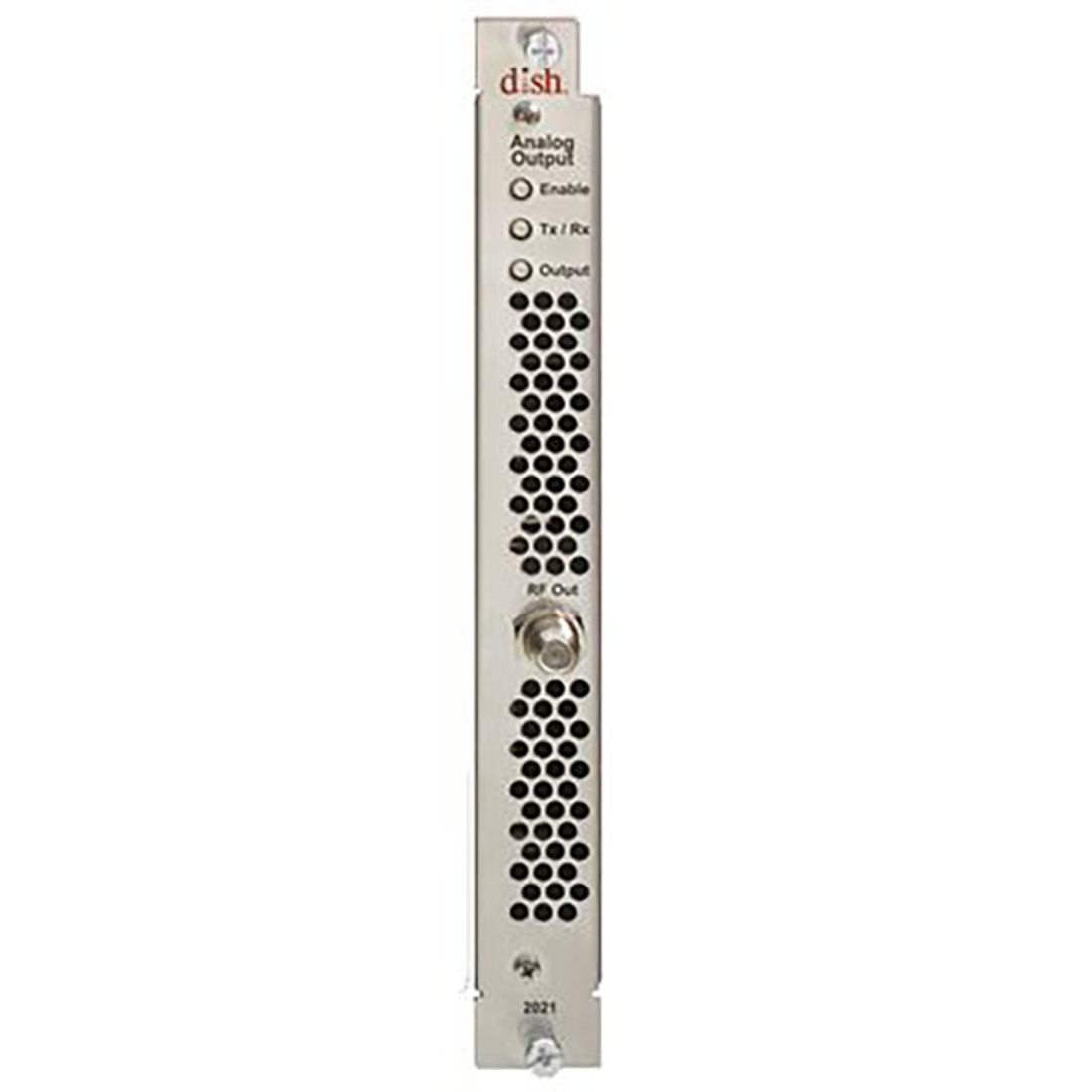

DISH Smartbox 24 Channel Analog NTSC/TV Blade

DISH Smartbox 24 Channel Analog NTSC/TV Blade
MSRP: $1250.00
Manufacturer: Smartbox
SKU: DN005122

Features

  • Power consumption: 70W (typical)
  • Connector: F-female
  • Maximum number of NTSC channels: 24 NTSC RF with stereo audio
  • Frequency range: 54–519 MHz
  • Band plan: STD, HRC, IRC
  • Output level 24 NTSC channels: 45 dBmV equivalent
  • Output adjust range: 10 dB
  • Attenuation steps increment: 0.5 dB
  • Output impedance: 75 Ohm
  • Output return loss in-band: -12 dB 54–519 MHz
  • RF flatness response: ±1 dB 54–519 MHz
  • Carrier frequency stability: 5 kHz standard channel
  • Audio/video ratio: 15 ±5 dB
  • Dimensions: 7.5" H x 0.9" W  x 13.5" D
