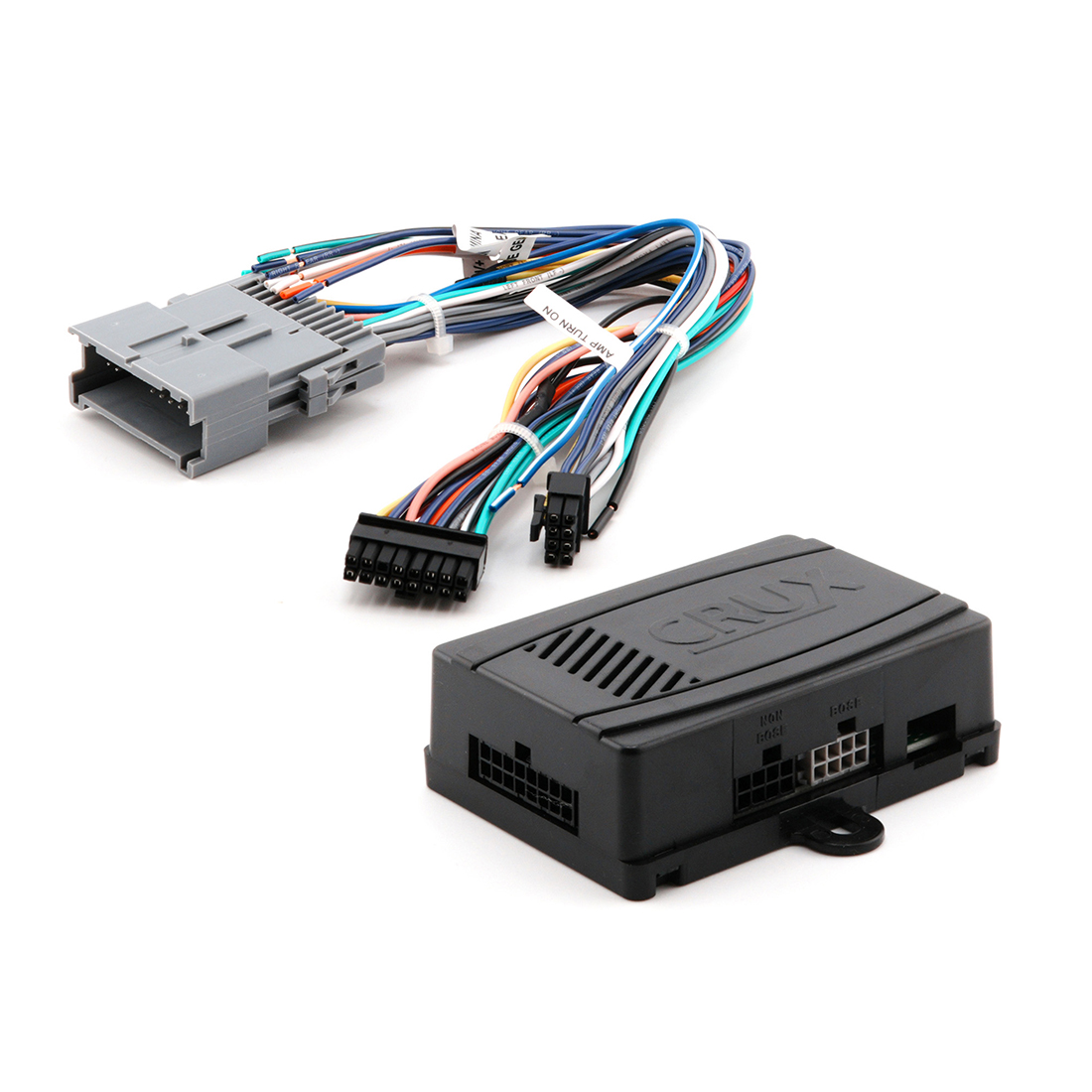

Crux GM Class II Radio Replacement Interface with Chime w/ Bose Amplified & Non-Amplified Systems

• Retains factory features in select GM Class II Data Bus vehicles while functioning with an aftermarket radio.
• Supports Bose, Monsoon and Y-91 audio systems.
• Retains chime functions.
• Built-in chime volume adjustment
• EIA color coded wiring for easy installation.
• Note: This product Does Not retain Onstar.

Compatible Vehicles

• Buick 2004-05 Century
• Buick 2005-07 LaCrosse
• Buick 2004-07 Rainier
• Buick 2003-05 Rendezvous
• Buick 2005-07 Terrazza
• Chevrolet 2003-06 Avalanche
• Chevrolet 2000-05 Cavalier
• Chevrolet 2004-13 Colorado
• Chevrolet 2005-13 Corvette*
• Chevrolet 2004-07 Express
• Chevrolet 2000-05 Impala
• Chevrolet 2000-05 Monte Carlo
• Chevrolet 2003-04 S-10
• Chevrolet 2003-06 Silverado
• Chevrolet 2007 Silverado Classic
• Chevrolet 2003-06 SSR
• Chevrolet 2003-06 Suburban
• Chevrolet 2003-06 Tahoe
• Chevrolet 2002-09 Trail Blazer
• Chevrolet 2005-08 Uplander
• Chevrolet 2003-05 Venture
• Oldsmobile 2001-04 Alero
• Oldsmobile 2002-04 Bravada
• Oldsmobile 2000-04 Silhouette
• Cadillac 2004-06 Escalade
• GMC 2004-11 Canyon
• GMC 2002-09 Envoy
• GMC 2003-07 Savana
• GMC 2003-06 Sierra
• GMC 2007 Sierra Classic
• GMC 2003-06 Yukon
• Hummer 2003-07 H2
• Hummer 2005-09 H3
• Isuzu 2003-08 Ascender
• Saab 2005-08 9-7x
• Saturn 2005-07 Relay
• Pontiac 2001-05 Aztek
• Pontiac 2001-05 Grand Am
• Pontiac 2004-07 Rainier
• Pontiac 2004-08 Grand Prix
• Pontiac 2000-06 Montana
• Pontiac 2000-05 Sunfire

Note:

• The Front and Rear fading are not retained on Y-91 Bose System.
• Chime includes: seat belt, check engine, key in ignition, low fuel, low oil and lights on.

*There are instances in the Corvette when the chime will sound if either the “Traction Control” or the “DIC” (Driver Information Center) buttons are pressed. (See page 3 of Manual.)

* Some Corvette needs verification by our tech support please provide the VIN of your vehicle
