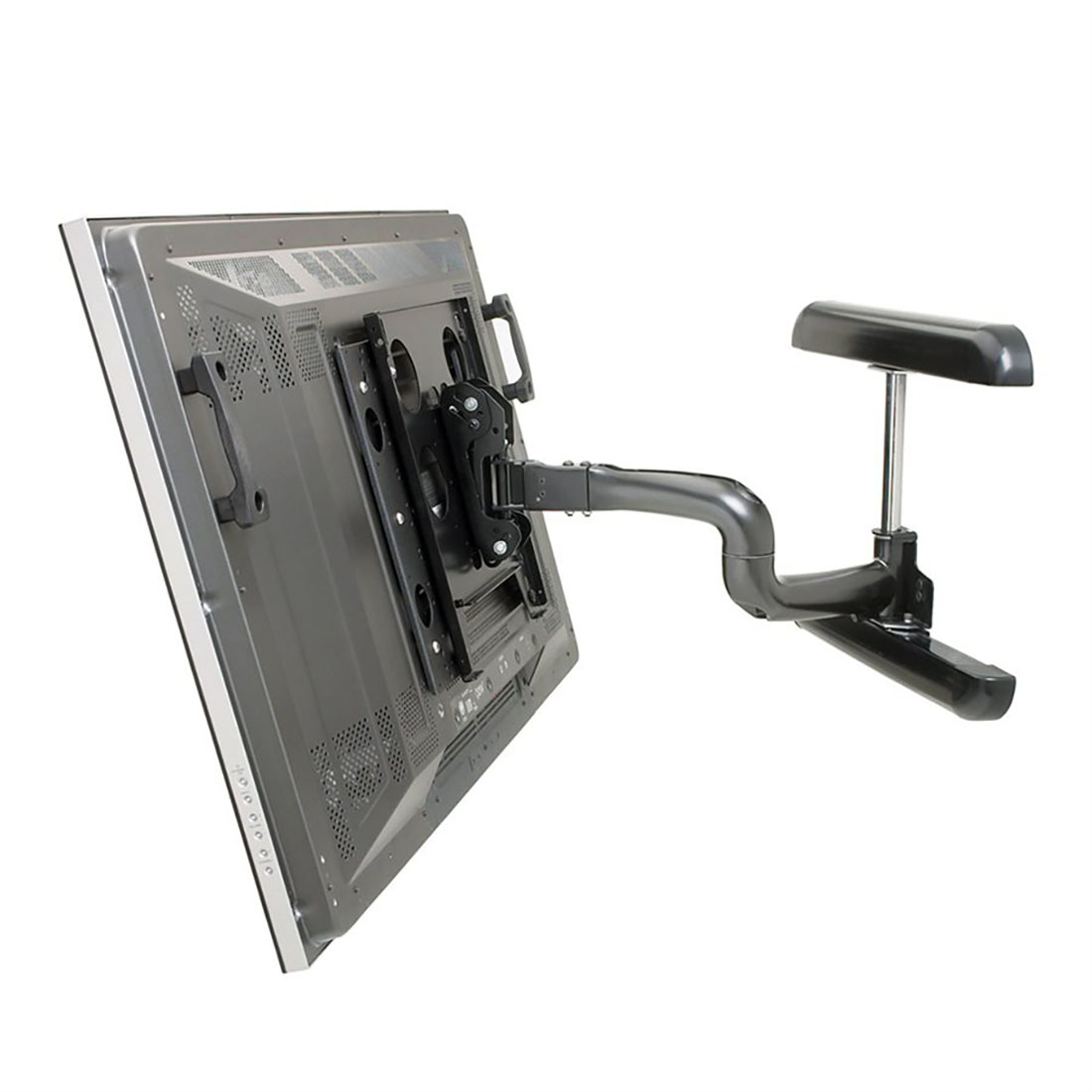

Chief Large Flat Panel Single Swing Arm Wall Mount

Overview

• Screen size up to 55"
• Weight capacity up to 125 lb
• Arm extends 24.875" in length from the wall, pivots up to 90° left or right of center and collapses to 3.375" to provide ultimate flexibility
• Features tool-free Click Connect mounting system and Centris mechanism for fingertip tilt adjustments
• Includes a universal interface bracket making it compatible with hundreds of flat panel displays from 30-55"
• Wall bracket can be placed on wall using convenient mounting guides for a hassle-free installation
• ClickConnect mounting system uses a lockable latch to safely secure display to the mount – Provides easy connect/disconnect without requiring any tools
• An audible click confirms panels are locked in place. Add a padlock to protect the display from theft
• Integrated lateral shift up to 9" (4.5" left/right) of 16" stud system without disassembly
• CableTrac System (cable management channels inside the arms) provides a fastand effective way to route video, audio and power cables
• Mount the display in portrait or landscape positions
• Extends up to 24.875" from wall for viewing from any angle
• Remains low profile in the home position
• Exclusive Centris Select tilt mechanism lets you select the perfect tension for your screen's center of gravity to achieve smooth fingertip tilt
• Screen angle stays set until you decide to re-adjust
• Tilt is +5°/-15° and roll is ±2.5°
• Swivel up to 90° left or right (depending upon screen size)
• Provides a positive latch in home position to keep screen tight to wall
• UL Listed for proven strength
