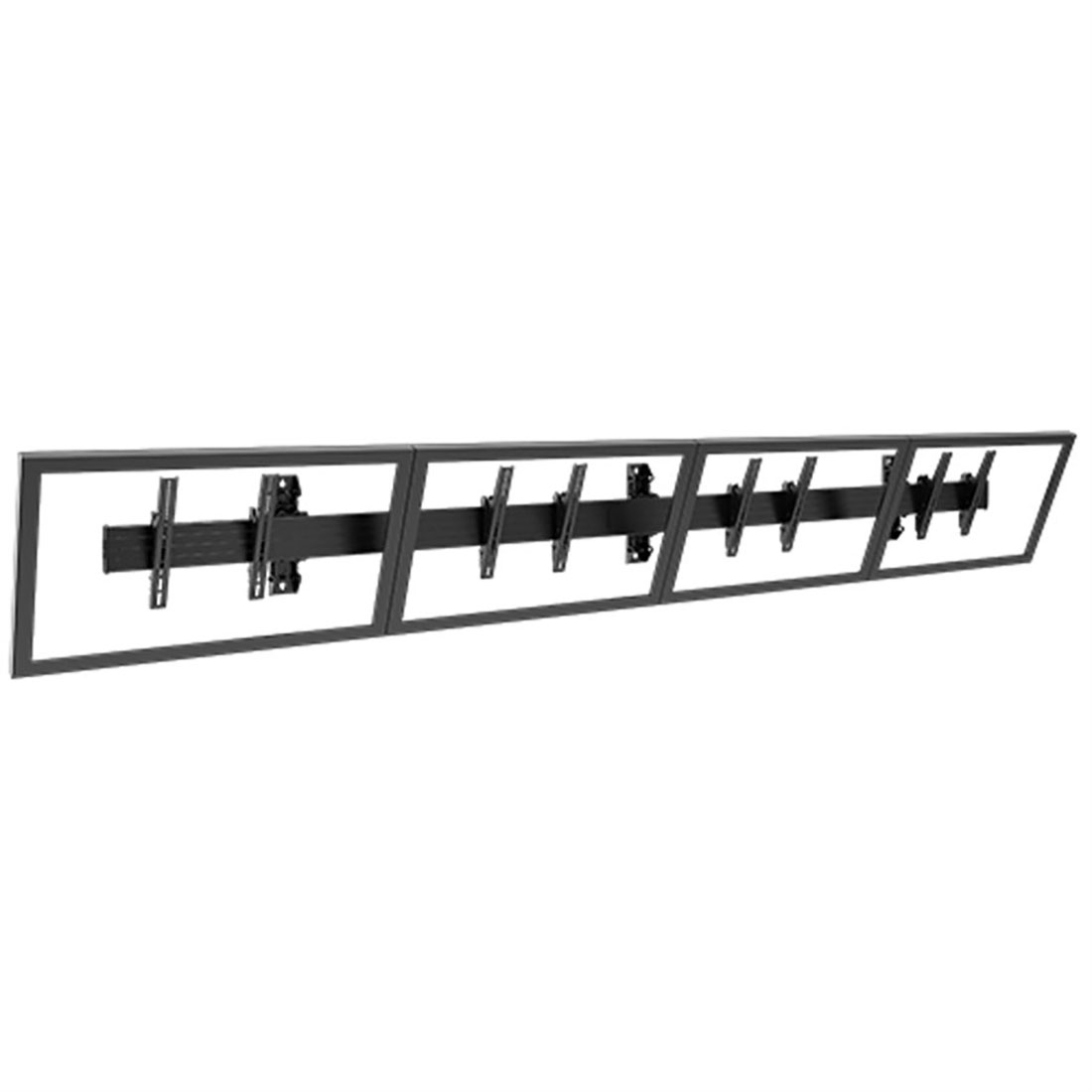

Chief Fusion Large 4x1 Wall Menu Board

Chief Fusion Large 4x1 Wall Menu Board
MSRP: $2277.00
Manufacturer: Chief
SKU: LWM4X1U
Features
  • Single horizontal extrusion keeps screens aligned
  • ControlZone micro-height adjustment
  • Centris tilt between +0 and -20 degrees
  • Tool-free screen engagement
  • Accommodate 40-55” screens
  • Optional padlock security
What’s in the box
  • Chief Fusion Large 4x1 Wall Menu Board

Special Order Only

Specs

AdjustmentsDepth Adjust 0" - 1"
Manual Height Adjustment2" (or +/- 1")
Minimum Depth5.8"
Mounting Pattern Compatibility (Universal Versions)any width x 100 - 400 mm
Number Of Monitors4
Post-Installation Leveling RollDependent upon wall spacing
Screen Array Configuration4 x 1
Tilt+0° , -20°
Typical Screen Sizes40-55"
Weight Capacity125 lb. per display
OrientationLandscape



Dimensions

Size (H x W x D)16.75” x 156.8” x 5.8"
