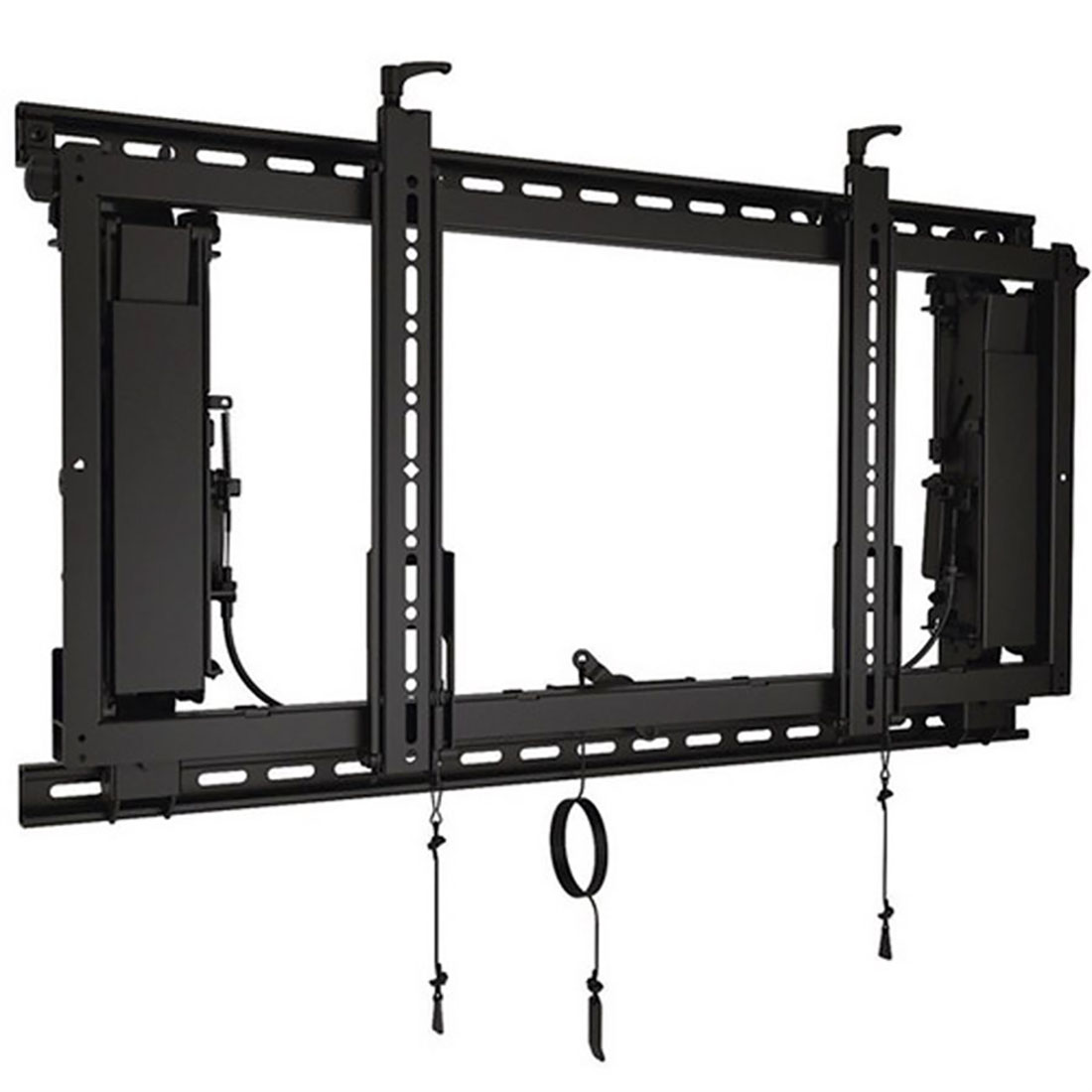

Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1.625" size channel strut
RapidDraw Display Release
- Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service
- Protects displays by not requiring an aggressive push to release/pop-out
- Releases only on demand, preventing accidental pop-outs
- The 10' (304.8 cm) cord can be set up to pull for release from any 90° angle
Three levels of lateral adjustment:
- Mount left/right along rail
- Interface left/right along mount
- Lock in lateral guide for fine-tune adjustment using turn knobs, protecting screens from potential collisions
Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations
- Both sides adjust independently, compensating for imperfections in the wall
- Walls can be out of alignment by up to 2" (horizontally)
